Contact iof+of/sd for ic60/iid/isw-na/rca/ara

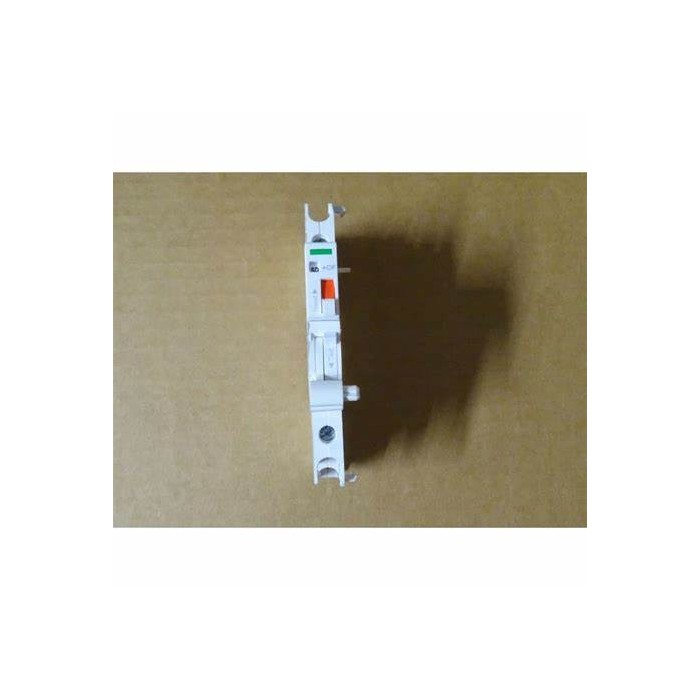

The Schneider Electric A9A26929 is a double iOF/SD+OF auxiliary contact from the Acti9 range, designed to provide remote signalling of the open/closed and trip status for protection devices such as miniature circuit breakers and differential circuit breakers.

Technical Description

• Product Code : A9A26929

• Type : Double auxiliary contact iOF/SD+OF

• Compatibility : iC60, iID, iSW-NA, RCA, ARA

• Contact composition : 2 switching contacts (2 C/O)

• Rated operating voltage (Ue) :

  • AC: 240–415V

  • DC: 24–130V

• Rated operating current (Ie) :

  • AC-12: 6A at 240V, 3A at 415V

  • DC-12: 6A at 24V, 2A at 48V, 1.5A at 60V, 1A at 130V

• Mounting : On 35mm DIN rail

• Dimensions : Width 9 mm, Height 90 mm, Depth 73 mm

• Weight : 43 g

• Degree of protection : IP20

• Compliance Standards : EN/IEC 60947-5-1
