Passive connection sub-base abe7 - 16 inputs type 2 - led

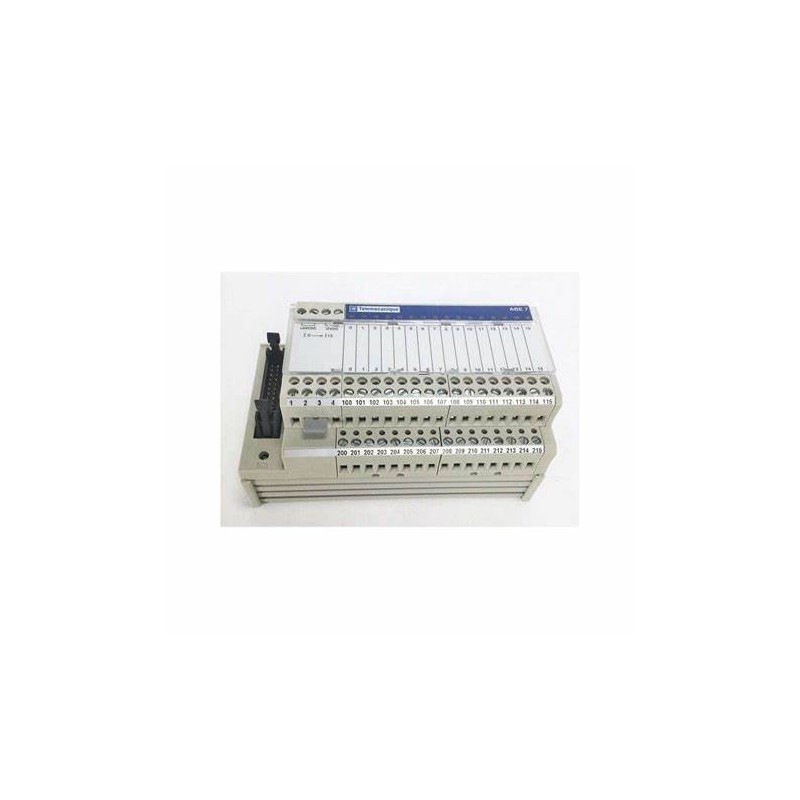

The Schneider Electric ABE7H16R23 is a passive connection sub-base designed to facilitate the connection between digital input modules and field devices in industrial automation systems. It is part of the Advantys Telefast ABE7 range and is compatible with type 2 sensors.

Technical Description

• Product Type : Passive Sub-Base for Discrete Inputs

• Number of channels : 16 digital inputs

• Input type : Type 2 (compatible with 2-wire sensors)

• Supply voltage : 19–30 V DC

• Status LED : 1 green LED for each channel (channel status) and 1 green LED for power

• Connector : HE-10 20 pin

• Terminal type : Screw, with clamping capacity for cables from 0.09 to 2.5 mm²

• Short circuit protection : Internal 2A fuse (5 x 20 mm, fast acting)

• Mounting : On 35 mm symmetrical DIN rail or screw fixing on solid plate

• Dimensions : Width 125 mm

• Weight : 0.32 kg

• Certifications : BV, CSA, DNV, GL, LROS, UL

• Degree of protection : IP2x according to IEC 60529

• Operating temperature : -5 to +60 °C
