Helical aspirator for direct expulsion to the outside m 120/5 a ll

Product Description

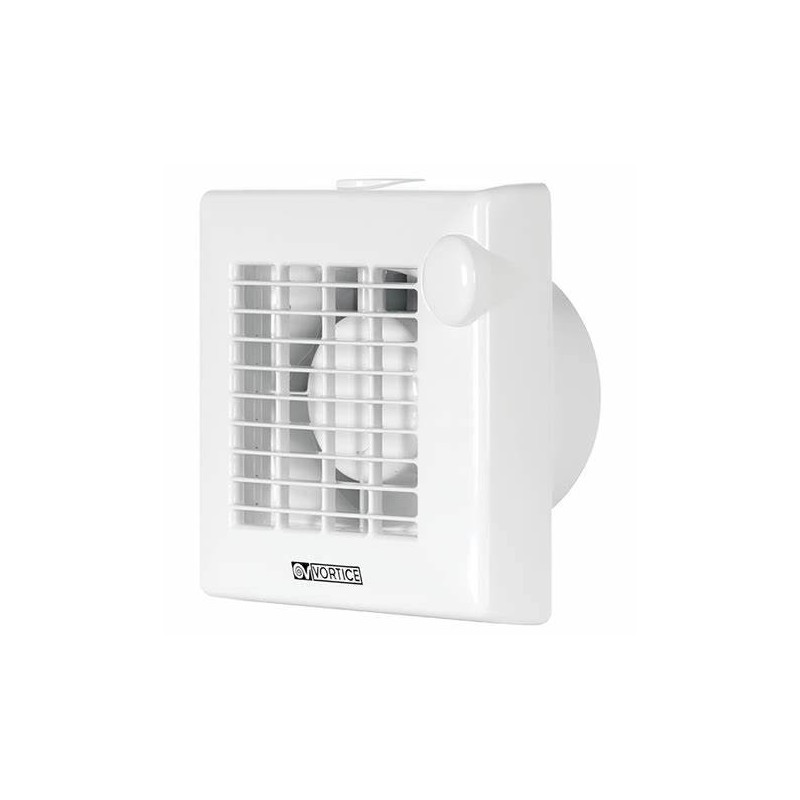

The Vortice M 120/5" A LL helical extractor fan (product code: 0000011322 ) is designed for direct expulsion of air to the outside in small and medium-sized residential and commercial environments. It is part of the Vortice PUNTO line, renowned for its reliability and performance. vortice.it sme.it

⚙️ Technical Features

• Nominal diameter : 120 mm

• Maximum flow rate : 175 m³/h (equivalent to 48.6 l/s)

• Power consumption : 20 W

• Power supply voltage : 220–240 V / 50 Hz

• Maximum current draw : 0.12 A

• Degree of protection : IPX4

• Insulation class : II

• Maximum operating ambient temperature : 50 °C

• Weight : 0.8 kg

• Material : UV resistant plastic resin

• Motor : Thermally protected, with shaft on ball bearing supports (indicated by the acronym "LL" - Long Life)

• Flap system : Automatic opening and closing of the front grille
