24V/DC 10-way 3-way plug-in relay

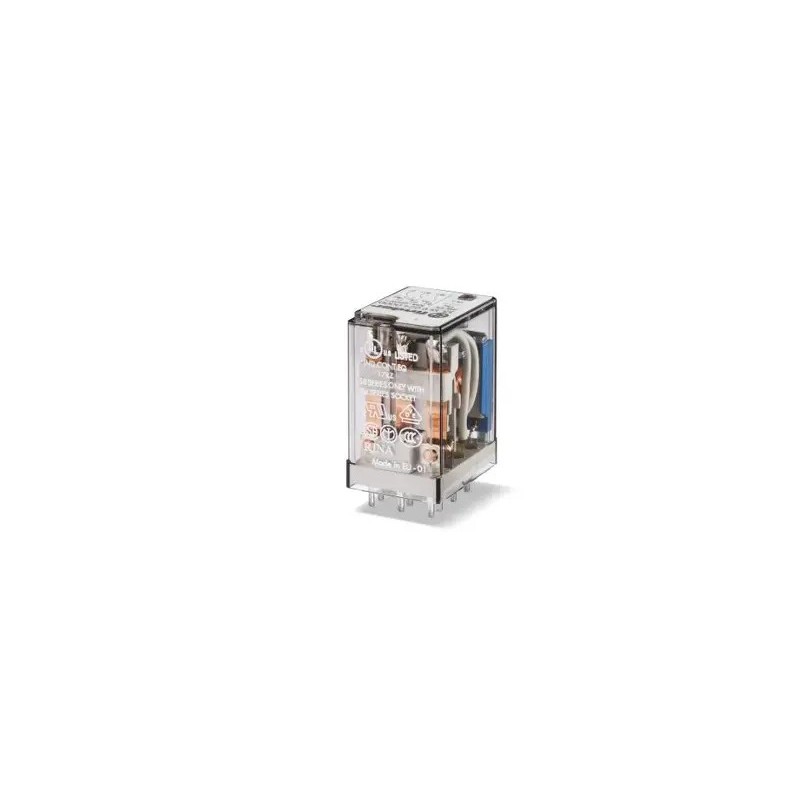

Finder 55.13.9.024.0000 – Plug-in Relay 24 V DC – 3 Changeover Contacts 10A – 55 Series

The Finder 55.13.9.024.0000 is a plug-in electromechanical relay from the 55 Series , designed for civil and industrial applications in electrical panels, automation and control systems. With 3 changeover contacts (3PDT) and a 24 V DC coil, it offers high reliability, long life and mounting versatility.

✅ Main features

• Brand : Finder

• Series : 55 (plug-in power relay)

• Model : 55.13.9.024.0000

• MPN : 551390240000

• Contact Type : 3 exchanges (3PDT – Triple Pole Double Throw)

• Rated current : 10 A per contact

• Coil voltage : 24 V DC

• Mounting : on plinth (base 94.73 or equivalent)

• Mechanical status indicator : integrated

• Manual test : present (test button with lock)

⚙️ Technical specifications

• Maximum contact voltage : 250 V AC

• Switchable power : up to 2,500 VA

• Contact material : AgNi (nickel silver)

• Mechanical life : ≥ 10 million cycles

• Electrical life : ≥ 100,000 cycles at rated load

• Usage category : AC1 (resistive loads), AC15, DC13 (with load reduction)

• Operating temperature : –40 °C to +70 °C
