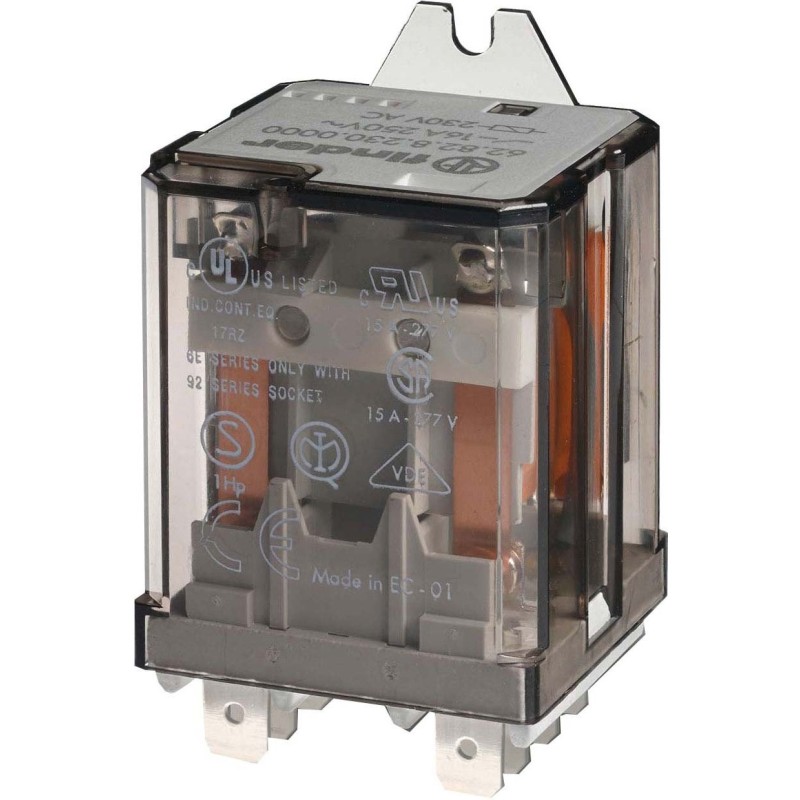

Finder 62.82.9.024.0000 – Power Relay 2 Contacts 16A 24V DC – Faston Connections 6.3 mm

The Finder 62.82.9.024.0000 is an electromechanical power relay of the 62 Series, equipped with 2 changeover contacts (DPDT) with switching capacity up to 16 A , powered by 24 V DC , designed for civil and industrial applications where high load capacity, reliability and quick connection via 6.3 mm Faston are required.

✅ Main features

• Brand : Finder

• Series : 62

• Model : 62.82.9.024.0000

• MPN : 628290240000

• Number of contacts : 2 changeover contacts (DPDT – Double Pole Double Throw)

• Coil voltage : 24 V DC

• Rated contact current : 16 A

• Connection type : Faston 6.3 × 0.8 mm

• Relay type : electromechanical, high power

• Mechanical status indicator : included

• Manual test : test button with lock

⚙️ Technical specifications

• Maximum switching voltage : 400 V AC

• Max switchable power : 4000 VA

• Contact material : AgNi (nickel silver)

• Category of use : AC1 (resistive loads), AC15, DC13

• Mechanical life : >10 million operations

• Electrical life : >100,000 cycles (at 16 A)

• Coil consumption : ~0.9 W

• Insulation between coil and contacts : reinforced

• Operating temperature : –40 °C ÷ +70 °C

📐 Dimensions

• Width : 29 mm

• Height : 25 mm

• Depth : 54 mm

• Mounting : direct with Faston or on compatible socket
