Power relay 2 contacts 16a faston25

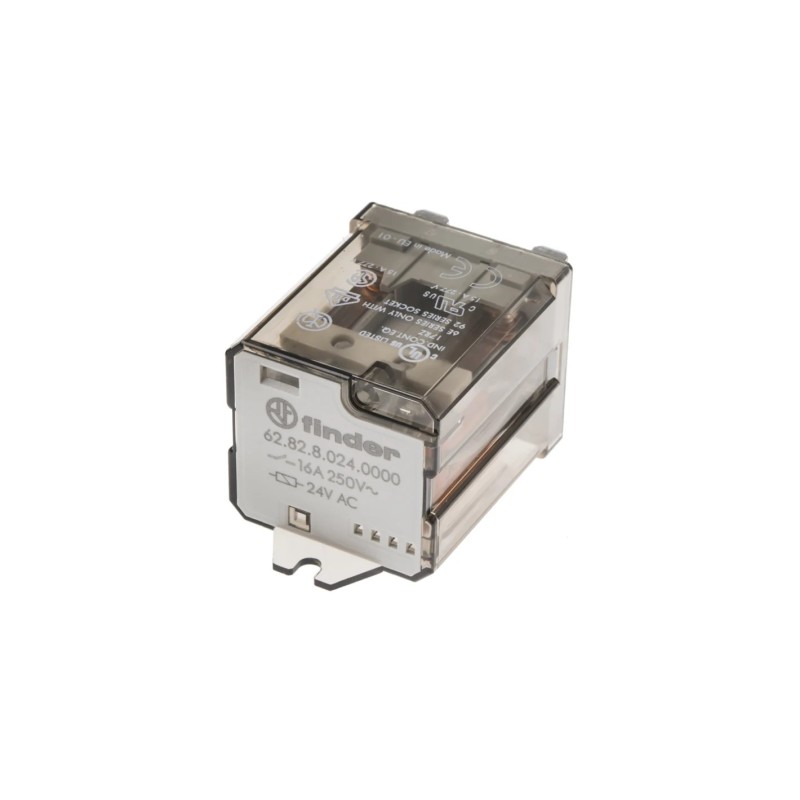

Finder 62.82.8.024.0000 – Power Relay 2 Contacts 16A 24V DC – Faston 2.8 mm

The Finder 62.82.8.024.0000 is an electromechanical power relay of the 62 series, equipped with 2 changeover contacts (DPDT) with a capacity of up to 16A and a 24V DC coil . This model is equipped with 2.8 mm Faston terminals, ideal for quick and compact connections in small spaces.

✅ Main features

• Brand : Finder

• Series : 62

• Model : 62.82.8.024.0000

• MPN : 628280240000

• Contact type : 2 changeover contacts (DPDT – Double Pole Double Throw)

• Rated current : 16 A per contact

• Coil voltage : 24 V DC

• Connection : Faston 2.8 × 0.5 mm

• Relay type : electromechanical plug-in

• Mechanical status indicator : present

• Manual test button : with lock

⚙️ Technical specifications

• Max switchable voltage : 400 V AC

• Max switchable power : 4000 VA

• Contact material : AgNi (nickel silver)

• Category of use : AC1 (resistive loads), AC15, DC13

• Coil consumption : ~0.9 W

• Mechanical life : ≥ 10 million operations

• Electrical life : ≥ 100,000 cycles (at 16 A)

• Operating temperature : –40 °C to +70 °C

• Insulation : Reinforced between coil and contacts

📐 Standard size

• Width : 29 mm

• Height : 25 mm

• Depth : 54 mm

• Mounting : direct with Faston 2.8 or on compatible socket
