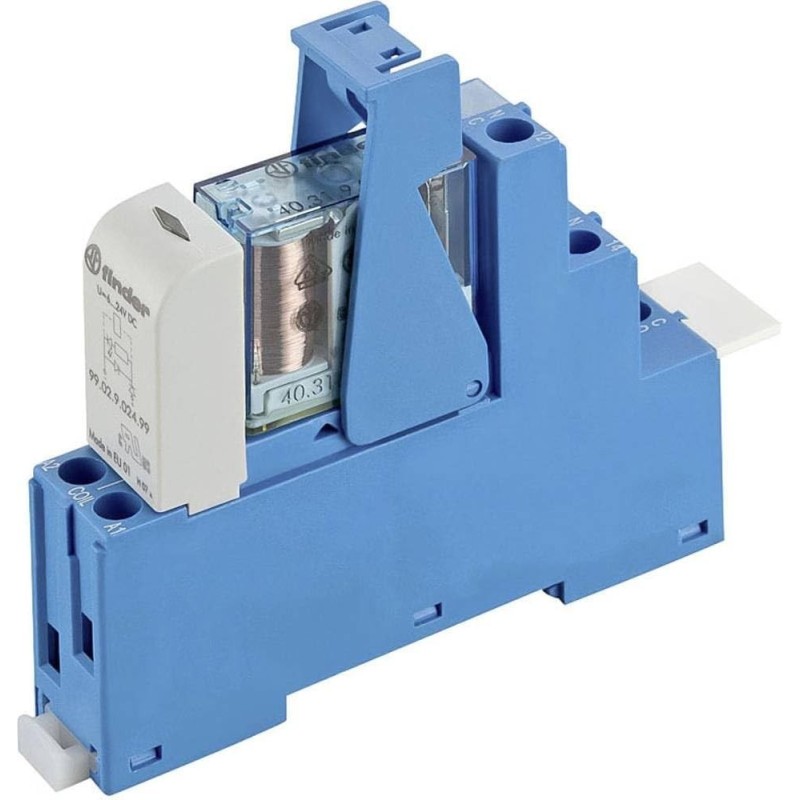

Interface module 1sc 10a 24vdc

Main features

• Model : Finder Series 1SC

• MPN : 485170240050

• Coil voltage : 24 V DC

• Relay type : electromechanical SPDT (1 changeover contact)

• Switching current :

  • 10 A at 250 VAC (resistive load)

  • 3A at 250VAC (inductive load)

• Mounting : on printed circuit board (PCB) with the possibility of DIN rail kit

🔌 Electrical Specifications

• Maximum switching voltage : 250 VAC / 30 VDC

• Contact nominal current : 10 A resistive (cosφ=1)

• Rated contact current : 6 A inductive (cosφ=0.6)

• Minimum excitation voltage : 80% of nominal voltage

• Coil consumption : approx. 1.5 W

🛠 Mechanical and material data

• Contact Type : Silver-nickel, self-cleaning

• Contact protection : internal seal against dust and light splashes

• Housing : self-extinguishing thermoplastic

• Mechanical life : ≥ 10 × 10⁶ operations

• Electrical life : ≥ 100 × 10³ full load operations

• Operating temperature : –40 °C ÷ +80 °C

• Relative humidity : up to 95%, non-condensing

📐 Dimensions and connections

• Dimensions : 29 × 12.5 × 15 mm (W × H × D)

• Foot pitch : 5.08mm

• Connections :

  • Coil: 2 poles to be soldered

  • Contacts: 3 poles to be soldered

💡 Typical Applications

• Interfacing between 24 V DC control logics (PLC, electronic cards) and AC/DC loads

• Industrial and civil automation

• Electrical panels and machine tools

• Security and alarm systems

✅ Benefits for e-commerce

• Finder reliability : high mechanical and electrical durability

• Compact and versatile : small footprint, easy integration on PCB or DIN rail

• High performance : switching up to 10 A, ideal even for heavy-duty applications

• Low consumption : 1.5W coil to reduce absorption
