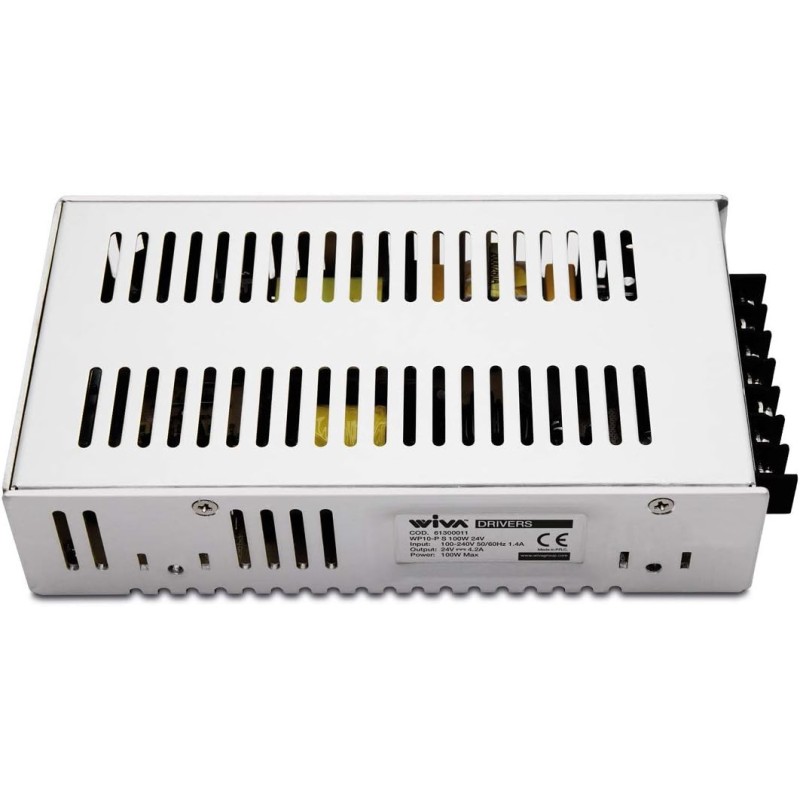

Switching Electronic Power Supply WP10-P S 100W 24V - Internal Use

The WP10-P S 100W 24V Switching Electronic Power Supply is a device designed for non-independent internal applications, ensuring reliability and efficiency thanks to its advanced technical features. Equipped with protections against overloads and short circuits, it is ideal for powering devices that require stable voltage control, with a potentiometer for fine adjustment.

Main features:

• Use : Designed for indoor use , this power supply complies with Class I for insulation against electric shock, ensuring protection from direct and indirect contact.

• Active PFC : Integrates an active Power Factor Correction (PFC) , optimizing energy consumption and improving efficiency.

• Protections : Equipped with integrated protections against short circuits , overloads and extra mains voltages , ensuring safe operation even in critical conditions of use.

• Voltage Regulation : With the built-in potentiometer , you can adjust the output voltage within ±10% , providing precise control.

• Connections : Equipped with screw terminals for input and output, which makes installation easier. It also comes with a terminal cover for added protection and safety.

Technical specifications:

• Input voltage : 100-240V AC
• Input frequency : 50/60 Hz
• Maximum input current : 1.4A
• Output voltage : 24V DC constant
• Output current : 0-4200mA
• Rated power : 100W
• Power Factor (PF) : 0.93
• Efficiency : 84%

Operating conditions:

• Ambient temperature (ta) : -10/+40 °C
• Maximum operating temperature (tc) : 40 °C

Dimensions and Weight:

• Dimensions : 191x99x44 mm
• Weight : 0.65 kg

Wiring:

• Input cable section : 0.5-4.0 mm²
• Output cable section : 0.5-4.0 mm²

Packaging:

• Format : inner/master 1/2

The WP10-P S 100W 24V Switching Electronic Power Supply represents an ideal solution for stable and safe power supplies, with precision regulation and integrated protections, perfect for indoor applications.
