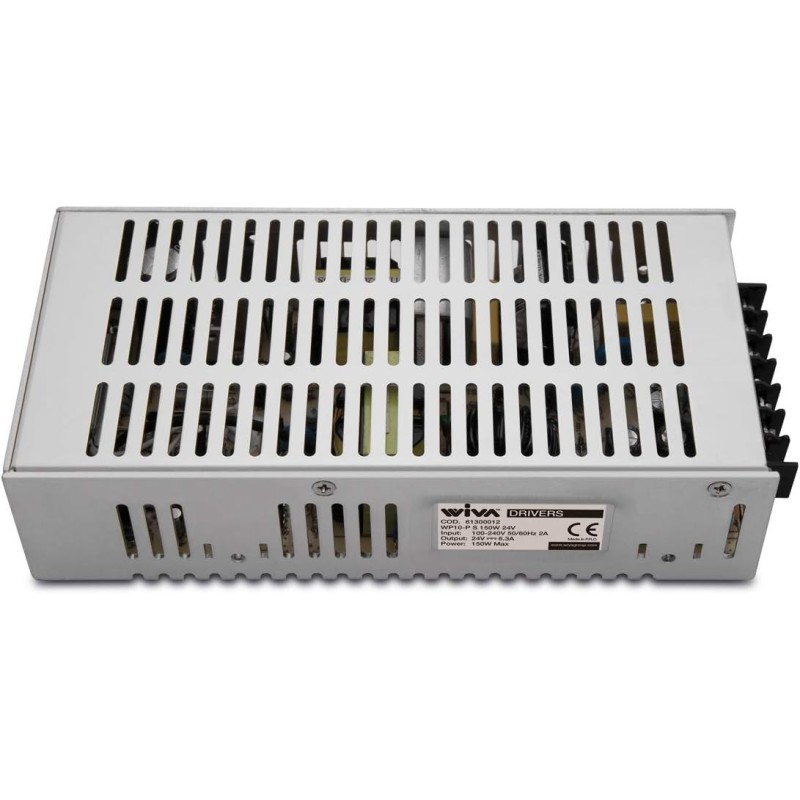

Switching Electronic Power Supply WP10-P S 150W 24V - Internal Use

WP10-PS 150W 24V

The 150W Switching Electronic Power Supply is a high-performance power solution designed for indoor and non-standalone applications. Equipped with advanced protections and features to ensure safety and efficiency, this power supply is ideal for multiple uses, offering precise voltage control and protection against adverse electrical conditions.

Main features:

• Use : Designed for indoor use , not freestanding, with Class I electrical insulation providing protection against electric shock from direct and indirect contact.

• Active PFC : Active Power Factor Correction (PFC ) to improve efficiency and reduce energy consumption.

• Protections : Equipped with integrated protections against short circuits , overloads and extra mains voltages , ensuring reliable and safe operation in all conditions.

• Voltage Regulation : Includes a potentiometer for output voltage regulation, with a regulation margin of ±10% , ensuring precise control of the power delivered.

• Connections : Comes with screw terminals on both input and output, making installation safe and easy. Also includes a terminal cover for added protection.

Technical specifications:

• Input voltage : 100-240V AC
• Input frequency : 50/60 Hz
• Maximum input current : 2A
• Output voltage : 24V DC constant
• Output current : 0-6300mA
• Power output : 150W
• Maximum output voltage : 24V
• Efficiency : 83%
• Power Factor (PF) : 0.93

Operating conditions:

• Ambient temperature : -10/+40 °C
• Maximum operating temperature (tc) : 40 °C

Dimensions and Weight:

• Dimensions : 211x99x49 mm
• Weight : 0.75 Kg

Wiring:

• Input cable section : 0.5-4.0 mm²
• Output cable section : 0.5-4.0 mm²

Packaging:

• Format : inner/master 1/20

This switching electronic power supply offers a versatile and safe power solution, with high efficiency and advanced protections, making it ideal for various indoor applications requiring long-term reliability and safety.
