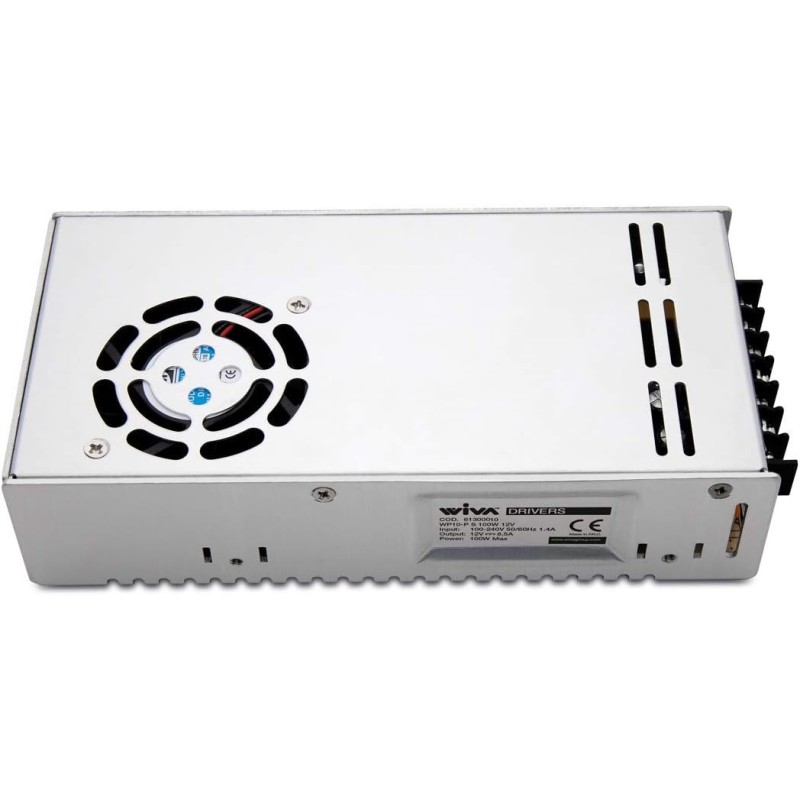

WP10-P S 200W 12V Switching Electronic Power Supply - Internal Use

The WP10-P S 200W 12V Switching Electronic Power Supply is a device designed for non-independent internal applications, ensuring stable and safe power supply thanks to its advanced protection and voltage management features. This power supply is equipped with forced air cooling via a fan, which optimizes its performance even in high-temperature environments.

Main features:

• Use : Ideal for indoor use with Class I electrical insulation, which guarantees protection against electric shock for direct and indirect contact.

• Active PFC : The power supply includes active power factor correction (PFC) , optimizing power consumption and improving overall system efficiency.

• Protections : Offers advanced protections against short circuits , overloads and extra mains voltages , ensuring safety and reliability even in difficult operating conditions.

• Voltage Regulation : It integrates a potentiometer that allows fine adjustment of the output voltage with a margin of ±10% , allowing the device to be adapted to specific power needs.

• Cooling : The device is equipped with a forced air cooling fan, ensuring stable performance even under high load and in high temperature environments.

• Connections : Equipped with screw terminals for input and output, with terminal cover provided for added safety during installation and operation.

Technical specifications:

• Input voltage : 100-240V AC
• Input frequency : 50/60 Hz
• Maximum input current : 2.7A
• Output voltage : 12V DC constant
• Output current : 0-16700mA
• Rated power : 200W
• Power Factor (PF) : 0.93
• Efficiency : 79%

Operating conditions:

• Ambient temperature (ta) : -10/+40 °C
• Maximum operating temperature (tc) : 40 °C

Dimensions and Weight:

• Dimensions : [da confermare]
• Weight : [da confermare]

Wiring:

• Input cable section : 0.5-4.0 mm²
• Output cable section : 0.5-4.0 mm²

Packaging:

• Format : inner/master 1/20

The WP10-P S 200W 12V Switching Electronic Power Supply is a robust and reliable solution for applications requiring high power and precise voltage control. With its fan cooling and integrated protections, it is ideal for ensuring stable and safe operation in a wide range of indoor environments.
