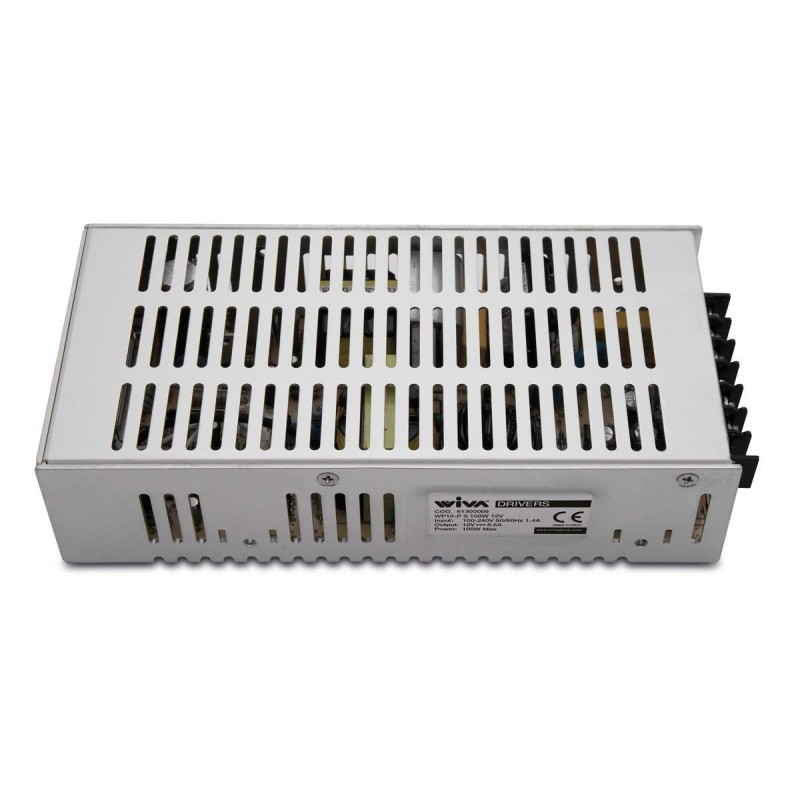

WP10-P S 150W 12V Switching Electronic Power Supply - Internal Use

The WP10-P S 150W 12V Switching Electronic Power Supply is designed for non-standalone indoor applications, ensuring stable and safe power supply thanks to its advanced protections. This device offers precise voltage control and high efficiency, making it suitable for multiple uses in installations requiring reliable power management.

Main features:

• Use : Designed for indoor use , not freestanding, with electrical insulation compliant with Class I , which guarantees protection against electric shock for direct and indirect contact.

• Active PFC : Includes active power factor correction (PFC) , improving energy efficiency and reducing electricity consumption.

• Protections : Equipped with advanced protections against short circuits , overloads , and extra mains voltages , ensuring maximum safety in demanding operating conditions.

• Voltage Regulation : A potentiometer allows adjustment of the output voltage with a margin of ±10% , offering flexibility in controlling the power output.

• Connections : Equipped with screw terminals for input and output, simplifying installation. The device is supplied with a terminal cover for added protection and safety.

Technical specifications:

• Input voltage : 100-240V AC
• Input frequency : 50/60 Hz
• Maximum input current : 2A
• Output voltage : 12V DC constant
• Output current : 0-12500mA
• Rated power : 150W
• Power Factor (PF) : 0.93
• Efficiency : 80%

Operating conditions:

• Ambient temperature (ta) : -10/+40 °C
• Maximum operating temperature (tc) : 40 °C

Dimensions and Weight:

• Dimensions : 211x99x49 mm
• Weight : 0.75 kg

Wiring:

• Input cable section : 0.5-4.0 mm²
• Output cable section : 0.5-4.0 mm²

Packaging:

• Format : inner/master 1/20

The WP10-P S 150W 12V Switching Electronic Power Supply is an excellent choice for those looking for a stable and safe power supply in indoor environments. With its integrated protections and the possibility of voltage regulation, this power supply offers versatility and safety for a wide range of applications.
