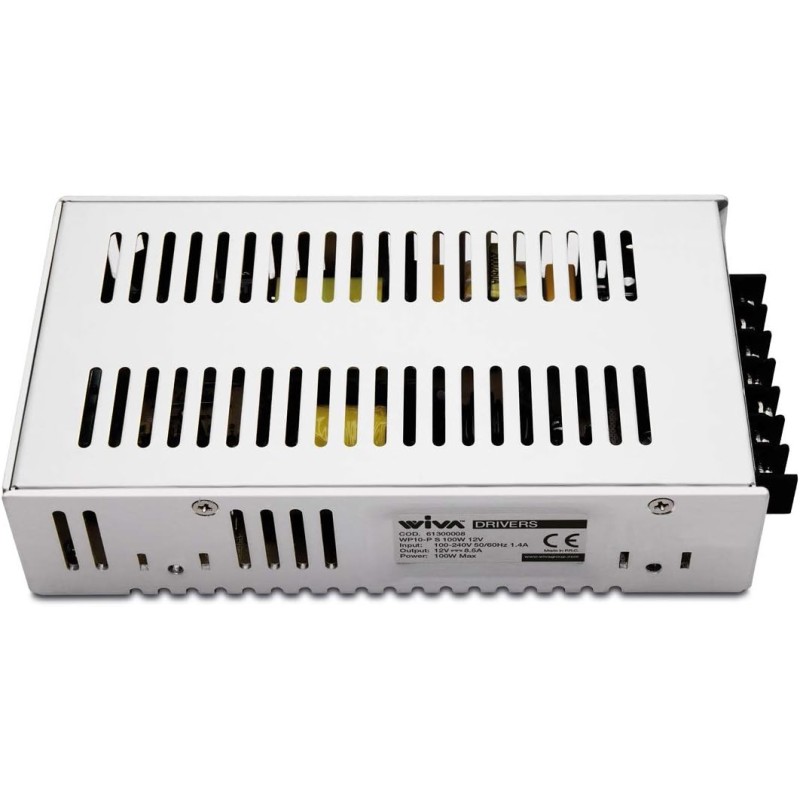

WP10-P S 100W 12V Switching Electronic Power Supply - Internal Use

The WP10-P S 100W 12V Switching Electronic Power Supply is designed for non-standalone indoor applications, ensuring a stable and safe power supply. Equipped with advanced protection and control features, this power supply is suitable for powering devices that require precise and adjustable power.

Main features:

• Use : Designed for indoor use , compliant with Class I for insulation against electric shock, ensuring maximum safety against direct and indirect contact.

• Active PFC : Includes active power factor correction (PFC) , improving efficiency and reducing electrical consumption.

• Protections : Equipped with protections against short circuits , overloads and extra mains voltages , ensuring safe and reliable operation in any operating condition.

• Voltage Regulation : A potentiometer allows adjustment of the output voltage by ±10% , allowing greater flexibility for different applications.

• Connections : Supplied with screw terminals for input and output, simplifying installation. A terminal cover is included for added protection and operational safety.

Technical specifications:

• Input voltage : 100-240V AC
• Input frequency : 50/60 Hz
• Maximum input current : 1.4A
• Output voltage : 12V DC constant
• Output current : 0-8500mA
• Rated power : 100W
• Power Factor (PF) : 0.93
• Efficiency : 80%

Operating conditions:

• Ambient temperature (ta) : -10/+40 °C
• Maximum operating temperature (tc) : 40 °C

Packaging:

• Format : inner/master 1/28

The WP10-P S 100W 12V Switching Electronic Power Supply is a versatile internal power supply solution, with advanced protection and voltage regulation features, offering reliable performance for a wide range of applications.
