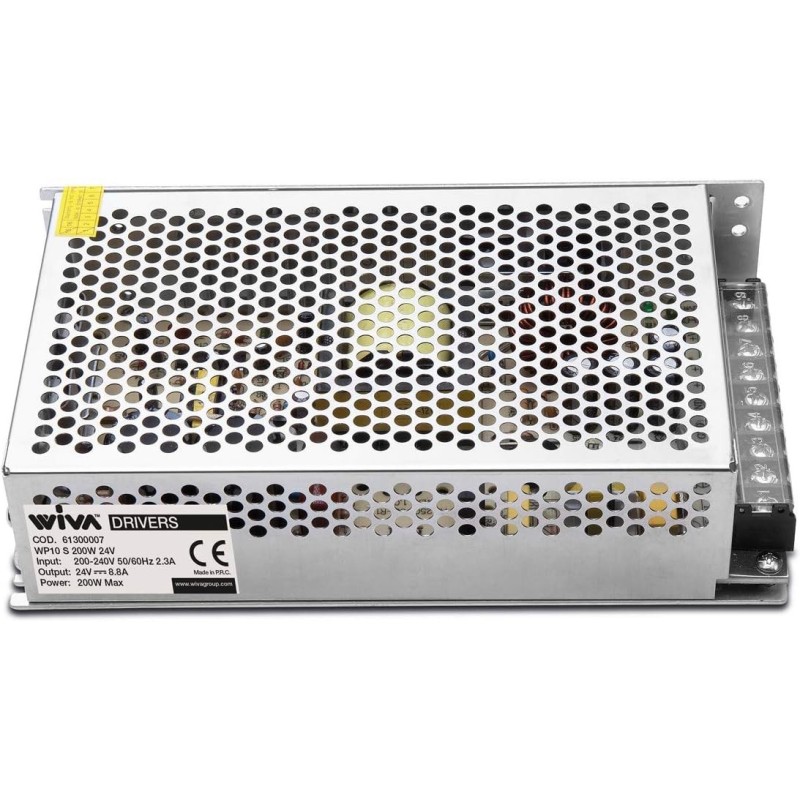

Switching Electronic Power Supply WP10 S 200W 24V 61300007 - Internal Use

The WP10 S 200W 24V Switching Electronic Power Supply is an ideal solution for non-independent power supplies in indoor environments, designed to ensure safety and efficiency. Equipped with advanced protections and precise voltage regulation, this power supply is perfect for applications that require a reliable and safe power supply.

Main features:

• Use : Designed for indoor use , compliant with Class I for insulation against electric shock, ensuring protection against direct and indirect contact.

• Protections : Includes protections against short circuits , overloads and extra mains voltages , ensuring safety and reliability in all operating conditions.

• Voltage regulation : A potentiometer allows fine adjustment of the output voltage with a margin of ±10% , adapting to different power needs.

• Connections : Equipped with screw terminals for input and output, simplifying installation and reducing assembly time. It also comes with a terminal cover for added safety.

Technical specifications:

• Input voltage : 200-240V AC
• Input frequency : 50/60 Hz
• Maximum input current : 2.3A
• Output voltage : 24V DC constant
• Output current : 0-8800mA
• Rated power : 200W
• Efficiency : 83%
• Power Factor (PF) : 0.55

Operating conditions:

• Ambient temperature (ta) : -10/+40 °C
• Maximum operating temperature (tc) : 40 °C

Dimensions and Weight:

• Dimensions : 199x110x50 mm
• Weight : 0.75 kg

Wiring:

• Input cable section : 0.5-4.0 mm²
• Output cable section : 0.5-4.0 mm²

Packaging:

• Format : inner/master 1/20

The WP10 S 200W 24V 61300007 Switching Electronic Power Supply represents an efficient and safe solution for powering devices in indoor environments. With its integrated protections and the possibility of regulating the output voltage, it is suitable for various applications that require reliable and long-lasting performance.
