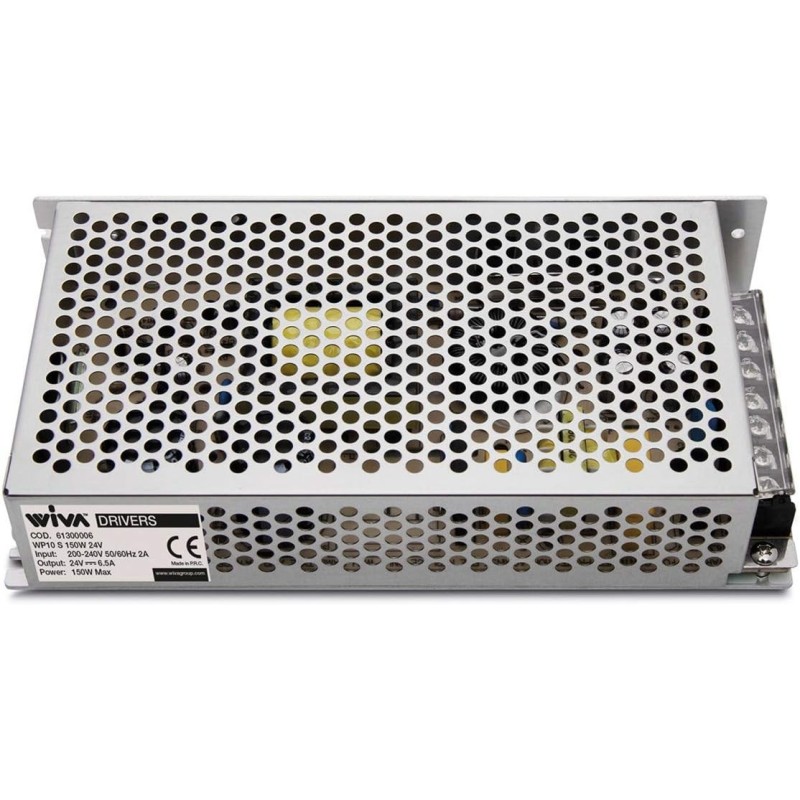

Switching Electronic Power Supply -WP10 S 150W 24V 200-240 V AC, 2A - Internal Use

WP10S 150W 24V

This Switching Electronic Power Supply is designed for non-independent indoor applications, with a design that is designed to offer reliability and safety. Equipped with integrated protections and voltage regulation options, it is suitable for powering devices that require a stable and precise voltage.

Main features:

• Use : Designed for indoor use , with Class I electrical insulation, which guarantees protection against electric shock from direct and indirect contact, providing maximum operational safety.

• Protections : Includes advanced protections against short circuit , overload , and excess mains voltage , ensuring complete protection for powered devices.

• Voltage Regulation : Equipped with a potentiometer that allows adjustment of the output voltage with a margin of ±10% , providing flexibility to adapt the power supply to different operating needs.

• Connections : Comes with input and output screw terminals for safe and easy installation. Also includes a terminal cover to ensure extra safety during installation.

Technical specifications:

• Input voltage : 200-240V AC
• Input frequency : 50/60 Hz
• Maximum input current : 2A
• Ambient temperature (ta) : -10/+40 °C
• Maximum operating temperature (tc) : 40 °C

Dimensions and Weight:

• Dimensions : 199x98x42 mm
• Weight : 0.55 kg

Wiring:

• Input cable section : 0.5-4.0 mm²
• Output cable section : 0.5-4.0 mm²

The Switching Electronic Power Supply is a reliable solution for indoor applications that require stable, safe and adjustable voltage. Thanks to its integrated protections and compact design, it is perfect for various power needs in controlled environments.
