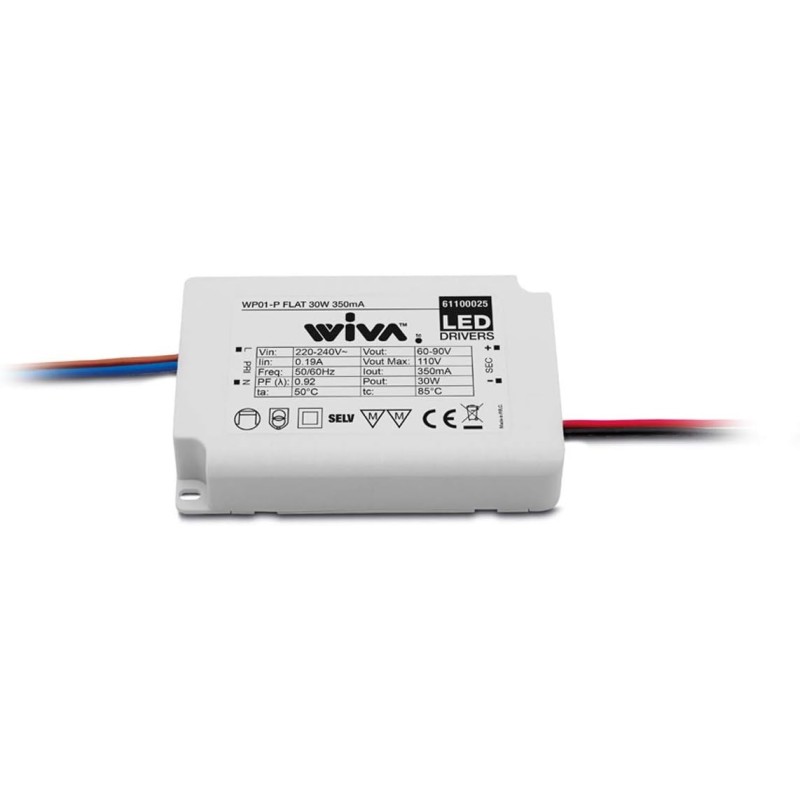

Compact Constant Current Electronic Power Supply for LED WP01-P FLAT 30W 350mA

The WP01-P FLAT 30W 350mA electronic power supply is a compact and efficient solution for powering LED lighting systems, ideal for indoor use. Designed to ensure maximum safety and reliability, it offers integrated protections and a high level of energy efficiency, perfect for applications that require a constant current power supply.

Main features:

• Usage : Designed for indoor freestanding use , with IP20 protection rating. Suitable for indoor applications such as homes, offices and commercial spaces.

• Insulation : Complies with Class II , ensuring a high level of insulation against electric shock from both direct and indirect contact.

• Active PFC : Equipped with power factor correction (active PFC) , which optimizes energy efficiency, reducing consumption.

• Protections : Includes built-in protections against short circuits , overloads and extra mains voltages , ensuring safe and reliable operation in all conditions.

• Connection Cables : Supplied with 160mm input and output cables , which simplify installation, ensuring stable and secure connections.

Technical specifications:

• Input voltage : 220-240V AC
• Frequency : 50/60 Hz
• Maximum input current : 0.19A
• Output voltage : 60-90V
• Output current : 350 mA constant
• Rated power : 21-30 W
• Maximum output voltage : 110V
• Efficiency : 87%
• Power Factor (PF) : 0.92

Operating conditions:

• Ambient temperature (ta) : -20/+50 °C
• Maximum temperature (tc) : 85 °C

Dimensions and Weight:

• Dimensions : 104x68x22 mm
• Weight : 0.12 Kg

Packaging:

• Format : inner/master 1/70

Advantages:

• Compact design : The small size of the power supply makes it easy to install even in tight spaces.

• Full Protection : Built-in protections against overload, short circuit and over voltage increase the safety and lifespan of the LED system.

• High Efficiency : 87% efficiency reduces energy consumption, improving overall reliability and saving.

The WP01-P FLAT 30W 350mA power supply represents a practical and safe solution for powering LED systems in indoor environments, combining energy efficiency, compact dimensions and a complete range of protections to ensure reliable and long-lasting operation.
