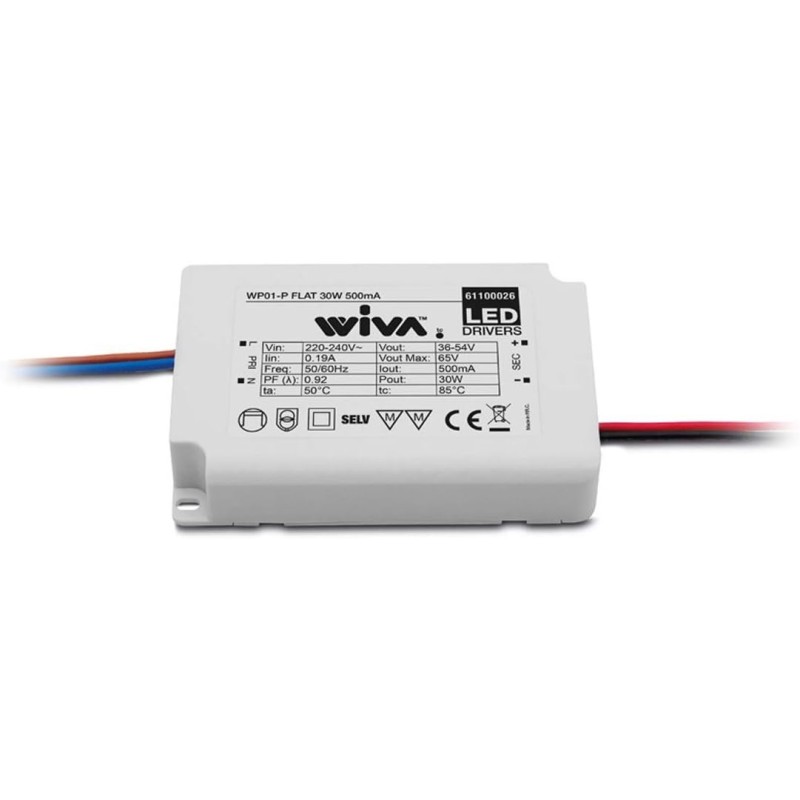

Compact Constant Current Electronic Power Supply for LED WP01-P FLAT 30W 500mA - Internal Use

The WP01-P FLAT 30W 500mA is a compact constant current electronic power supply designed for independent use in indoor environments. Thanks to its advanced protection and high energy efficiency, it is the ideal solution for powering LED lighting systems. The compact design and integrated protections ensure safety and reliability.

Main features:

• Use : Ideal for indoor use with IP20 protection, compliant with Class II for insulation against electric shock, ensuring safety for direct and indirect contacts.

• Active PFC : Includes active power factor correction (PFC) , improving energy efficiency and reducing consumption.

• Protections : The device is equipped with protections against short circuits , overloads and extra mains voltages , ensuring safe and long-lasting operation.

• Connections : Supplied with pre-installed 160mm input and output cables, simplifying installation and reducing wiring time.

Technical specifications:

• Input voltage : 220-240V AC
• Input frequency : 50/60 Hz
• Maximum input current : 0.19A
• Output voltage : 36-54V DC
• Output current : 500 mA constant
• Rated power : 18-27 W
• Maximum output voltage : 65V
• Efficiency : 87%
• Power Factor (PF) : 0.92

Operating conditions:

• Ambient temperature (ta) : -20/+50 °C
• Maximum operating temperature (tc) : 85 °C

Dimensions and Weight:

• Format : compact , ideal for installations in limited spaces

Packaging:

• Format : inner/master 1/70

The WP01-P FLAT 30W 500mA Compact Electronic Power Supply is perfect for indoor LED applications, offering high energy efficiency.
