Compact Constant Current Electronic Power Supply for LED WP01-P FLAT

This range of compact constant current electronic LED power supplies is designed for indoor use, providing energy efficiency and advanced protections for various lighting applications. With flicker-free technology and integrated protections against overloads and short circuits, these power supplies are ideal for LED lighting, maintaining stable and safe lighting.

Common key features:

• Independent use : Designed for indoor use, with IP20 protection rating.
• Insulation : Complies with Class II for protection against electric shock from direct and indirect contact.
• Active or passive PFC : Ensures power factor correction to improve energy efficiency.
• Protections : Includes protections against short circuits , overloads , and extra mains voltages , as well as thermal protection .
• Input and Output Cables : Comes with pre-installed 160mm cables for easy installation.
• Flicker-Free Technology : Ensures flicker-free lighting, improving visual comfort.

Technical specifications:

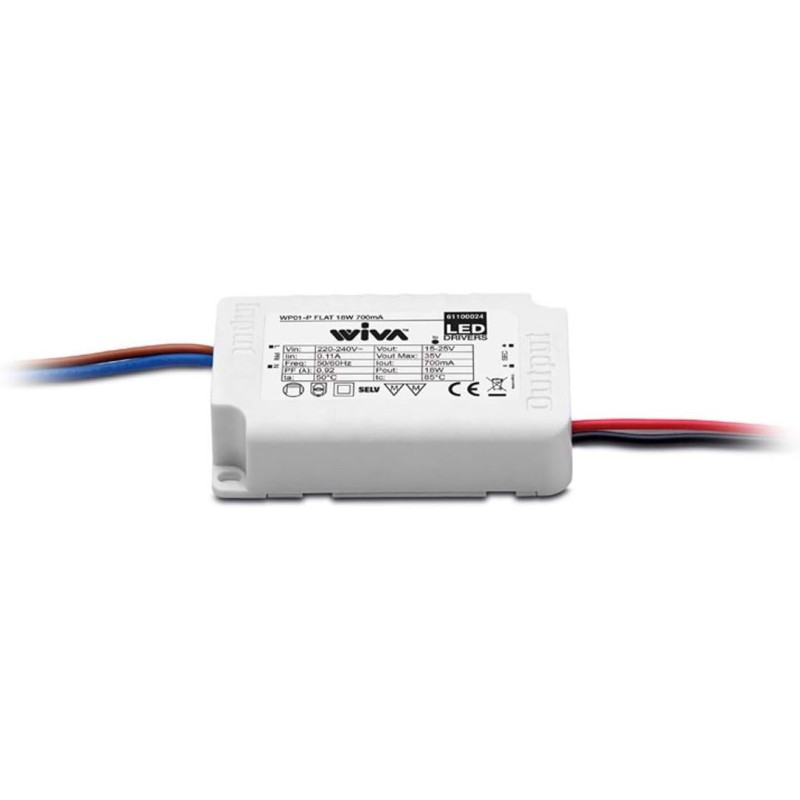

1. WP01-P FLAT 18W 700mA (Code: 61100024)

   • Output power : 10-18W
   • Output voltage : 15-25V
   • Output current : 700mA constant
   • Maximum output voltage : 35V
   • Power Factor (PF) : 0.92
   • Efficiency : 85%
   • Dimensions : 92x54x22mm
   • Inner/Master : 1/70

   • Common operating conditions:

     • Input voltage : 220-240V AC
     • Frequency : 50/60 Hz
     • Maximum input current : 0.11A
     • Ambient temperature (ta) : -20/+50 °C
     • Maximum operating temperature (tc) : 85 °C

     Advantages:

     • Compact design : Ideal for installations in tight spaces.
     • Full Protection : Overload and short circuit protections ensure greater operational safety.
     • Flicker-free technology : Provides stable, flicker-free lighting, ideal for applications in sensitive environments such as offices and living spaces.

     These WP01-P FLAT power supplies offer an efficient and safe solution for powering LED systems, with a range of output powers and voltages to suit different lighting needs.
