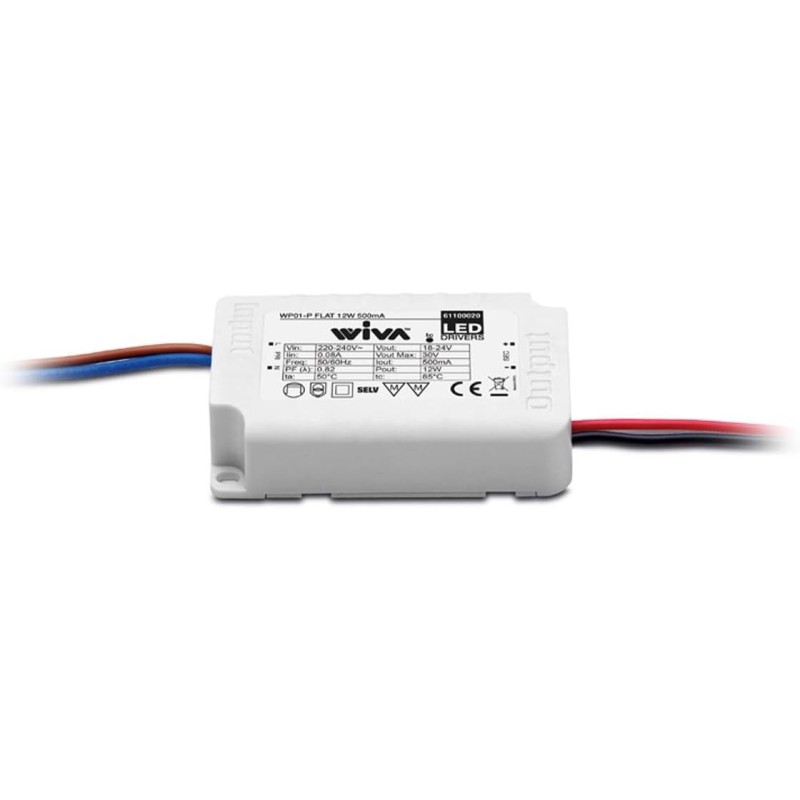

Compact Constant Current Electronic Power Supply for LED WP01-P FLAT 12W 500mA

The WP01-P FLAT 12W 500mA power supply is designed to efficiently and safely power LED lighting systems in constant current. With a compact structure and equipped with flicker-free technology, it is ideal for indoor installations in residential and commercial environments, offering protection and reliability.

Main features:

• Independent use : Suitable for indoor use , with an IP20 protection rating, designed to ensure safety and reliability in indoor environments.

• Class II Insulation : Protects against electric shock from direct and indirect contact, offering greater safety during use.

• Passive PFC : Includes passive power factor correction , improving energy efficiency, reducing energy waste and optimizing operation.

• Advanced protections : Equipped with protections against short circuits , overloads and extra mains voltages , ensuring safe and long-lasting operation.

• Flicker-free Technology : Designed to provide flicker-free lighting, which reduces eye fatigue and ensures a comfortable viewing experience.

• Pre-Installed Cables : Comes with 160mm input and output cables, making installation easier.

Technical specifications:

• Output power : 9-12W
• Output voltage : 18-24V
• Output current : 500 mA constant
• Maximum output voltage : 30V
• Power Factor (PF) : 0.82
• Efficiency : 84%
• Input voltage : 220-240V AC
• Frequency : 50/60 Hz
• Maximum input current : 0.08A

Operating conditions:

• Ambient temperature (ta) : -20/+50 °C
• Maximum temperature (tc) : 85°C

Dimensions and Weight:

• Dimensions : 74x45x20 mm
• Weight : 0.06 Kg

Advantages:

• Compact and lightweight : Its small size and low weight make installation easy, even in limited spaces.

• Full Protection : The power supply provides reliable protections against overload and short circuit, improving safety during operation.

• Flicker-free technology : Ensures comfortable and stable lighting, free from flickering, ideal for work or living environments where visual comfort is essential.

• Easy Installation : With pre-installed cables and compact design, installation is quick and easy.

The WP01-P FLAT 12W 500mA is a compact and reliable power supply, ideal for powering LED systems, combining energy efficiency, advanced protection and stable and comfortable lighting.
