Rondo3.2 5w 230vac 3000k rad corten

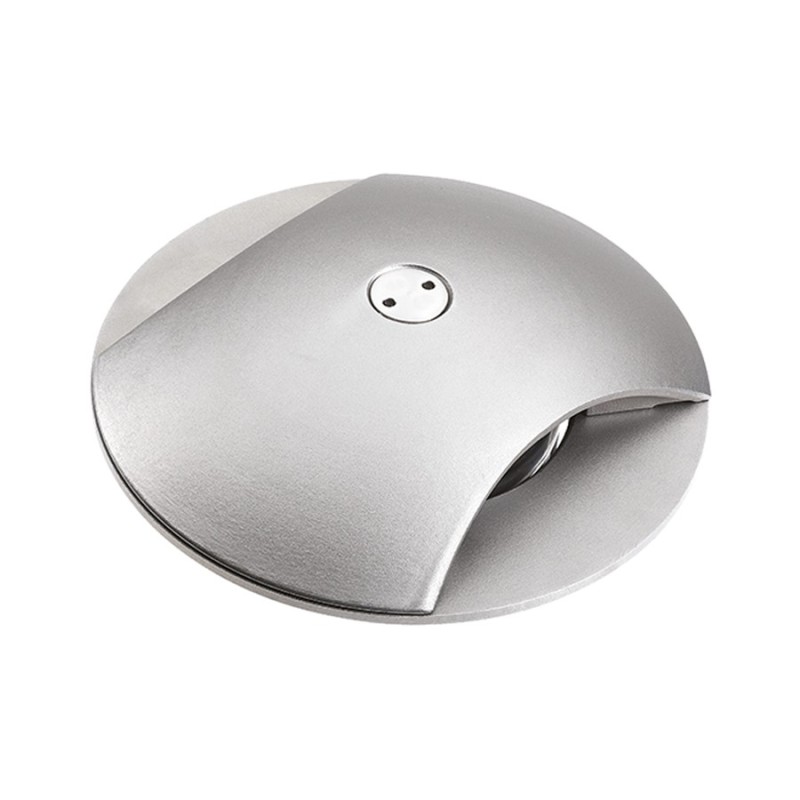

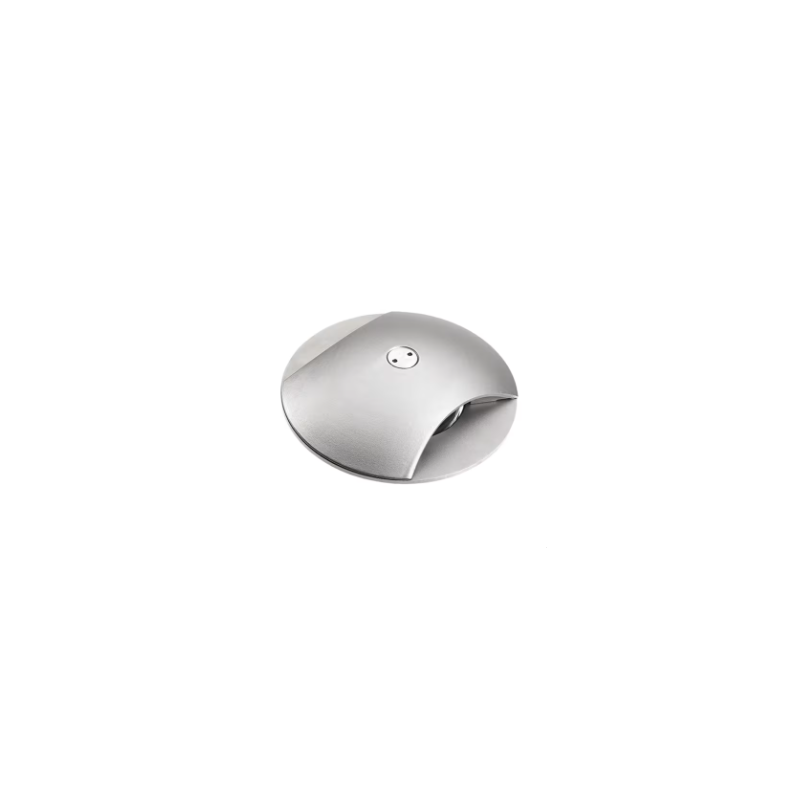

Rondò 3.2 - Outdoor Step Light (Code: RD32105AT)

The Rondò 3.2 is an outdoor double emission step light, designed to be drive-over up to 5000 kg , ideal for recessed installations in outdoor pavements. This device combines robustness and advanced technology to offer efficient and long-lasting lighting in pedestrian and drive-over areas.

Main features :

• Power consumption : 5W
• Power supply : 230Vac
• Luminous flux :
  • Source : 370 lm (3000K)
  • Emitted : 180 lm (3000K, radial optics)
• LED type : 2 high efficiency power LEDs, 50,000 hours lifespan (L95 B10 at 25°C)
• Optics : Radial with high efficiency TIR lens, designed to distribute light evenly.
• Color Rendering Index (CRI) : 80 , for good color rendering.

Materials :

• Body : Made of AISI 316L stainless steel micro-casting , ensuring corrosion resistance and durability.
• Finishes : Cor-ten , obtained through micro-shot peening and passivation and electropolishing treatments, with corrosion resistance up to 1000h of salt spray .
• Screen : Made of Rilsan® Clear , a PA12 polyamide with high mechanical and optical performance.
• Seals : Made of expanded silicone to ensure optimal protection against infiltrations.

General characteristics :

• Protection grade : IP67 , making it waterproof and dustproof, suitable for outdoor use exposed to adverse weather conditions.
• Resistance level : IK08 , which ensures good impact resistance.
• Drive-over capacity : Supports up to 5000 kg , suitable for drive-over installations.
• Operating temperature : -20°C to +45°C .
• Insulation class : Class I.
• Energy consumption class : F (in accordance with EU regulations 2019/2015).
• Protection systems :
  • IPS (Intelligent Protection System) against water infiltration and electrical malfunctions.
  • PID (Protective Impedance Device) for protection from electrostatic charges and overvoltages.

Dimensions :

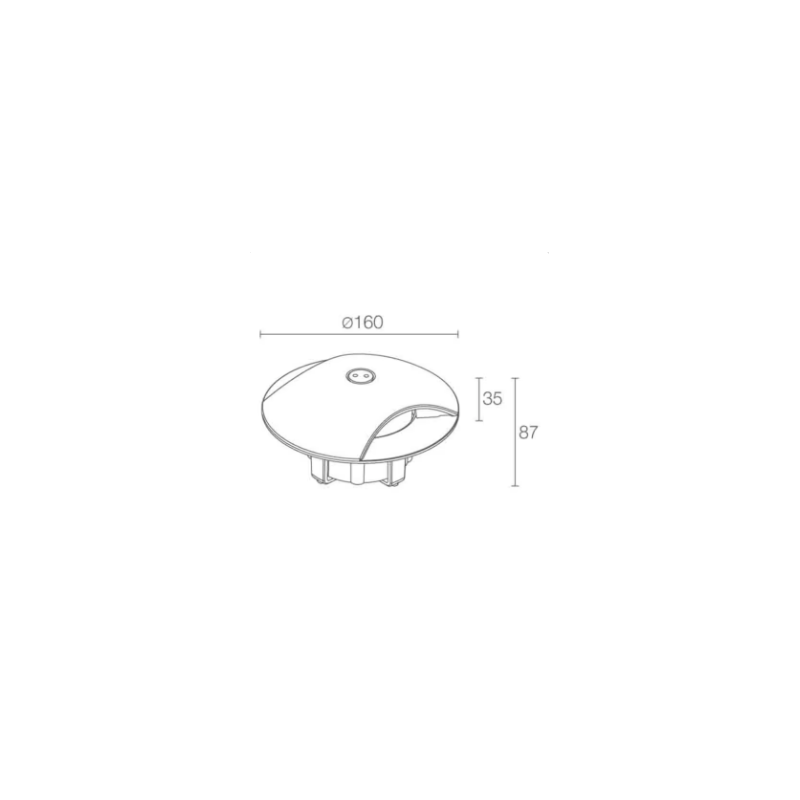

• Dimensions : Ø160x87 mm
• Weight : 1800 g

Accessories and Options :

• Formwork : WC0601 and WC0701 available as installation accessories.
• Anti-vandal key : WE0100 for extra protection against vandalism.
• Casambi Management : Controllable via app for smart lighting management.

The Rondò 3.2 is perfect for lighting driveways, parking lots or other outdoor areas where a robust, durable solution with excellent lighting performance is required.
