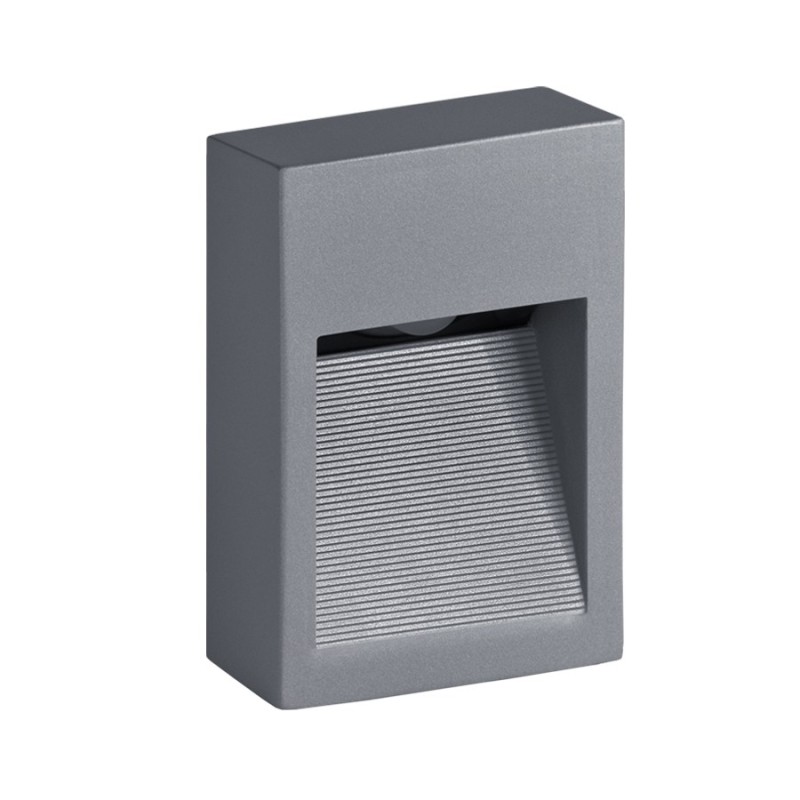

Pasito Mini 1.2 - Outdoor Step Light

Pasito Mini 1.2 - Outdoor Step Light (Code: PM121005AF)

The Pasito Mini 1.2 is an outdoor step light designed for wall installation, offering asymmetrical lighting that focuses downwards, minimising light spill and providing effective and controlled lighting.

Main features :

• Power consumption : 6W
• Power supply : 230Vac
• Luminous flux :
  • Source : 383 lm (3000K, CRI 80)
  • Emitted : 214 lm (3000K, asymmetric 150°x90°, CRI 80)
• LED type : 1 High Intensity power LED with 50,000 hour lifespan (L90 B10 at 25°C)
• Optics : Asymmetric 150°x90° , with controlled light emission downwards to minimize light dispersion.
• Color Rendering Index (CRI) : 80 , which ensures good color reproduction.

Materials :

• Body : Made of technopolymer with high resistance to impacts and low temperatures, with aluminium heatsink to optimise heat management.
• Finishes : Grey RAL 9006 , with other RAL finishes available on request. The finish is obtained with a coating of ceramic nano particles and epoxy/polyester painting, to guarantee corrosion resistance greater than 1500h of salt spray .
• Screen : Made of extra-clear tempered glass, with high impact resistance.

General characteristics :

• Protection grade : IP65 , perfect for dust and water resistance.
• Resistance level : IK06 , guarantees good protection against moderate impacts.
• Operating temperature : -20°C to +45°C .
• Energy consumption class : F (in accordance with EU regulations 2019/2015).
• Insulation class : Class II , to ensure electrical safety without the need for earthing.
• Protection systems : IPS (Intelligent Protection System) against water infiltration and external electrical phenomena, protection against polarity reversals and overvoltages.
• Photobiological safety : Risk group 1 according to EN 62471:2006.

Dimensions :

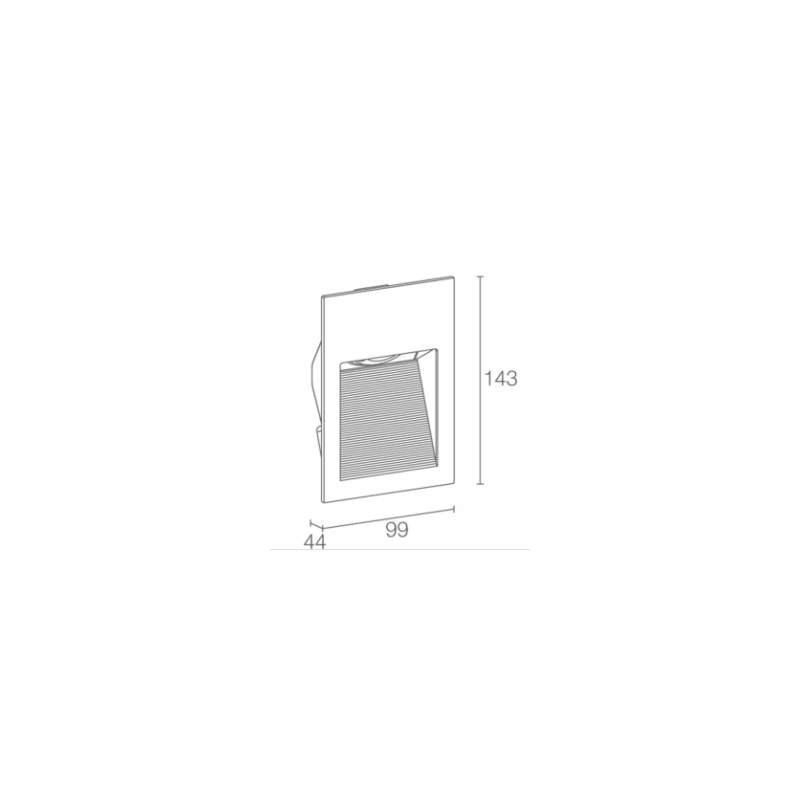

• Dimensions : 99x46x143 mm
• Weight : 400 g

Accessories and Options :

• Casambi management available on request for control via dedicated app.
• Power cable : 0.20 m H05RN-F 2x1.00 Ø7 mm cable included.

The Pasito Mini 1.2 is an excellent choice for illuminating paths and outdoor areas in a discreet and efficient way, ensuring durability and high performance even in difficult environmental conditions.
