Riverwall1.2profilo profile 10w 230vac 3000k dif 520mm

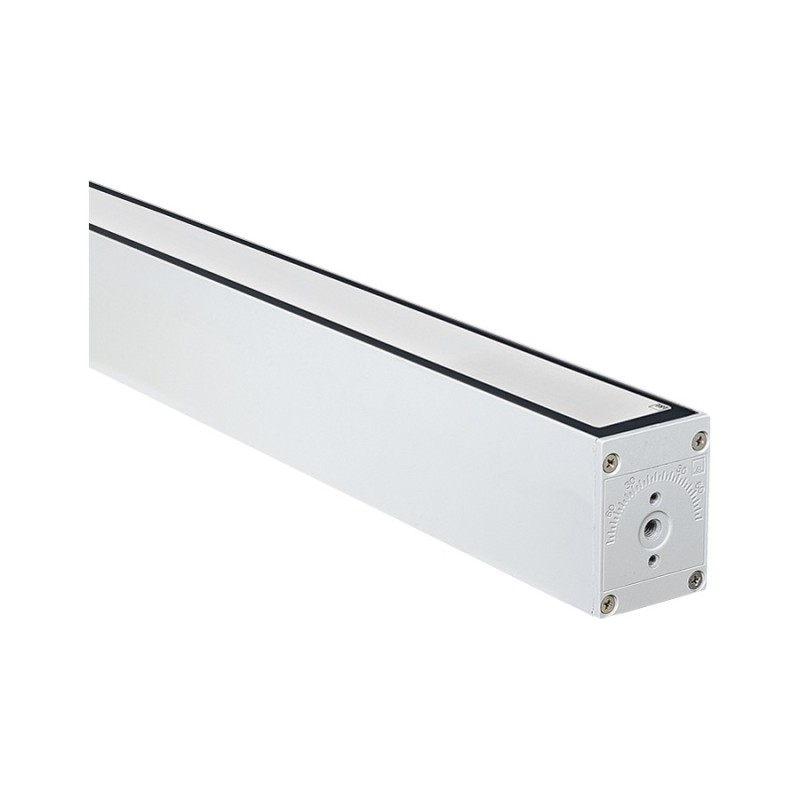

River Wall 1.2 - External Linear Profile (Code: RW12105DF)

River Wall 1.2 is an outdoor linear profile, designed for installation on ceilings, walls or floors with adjustable brackets. Ideal for creating diffused and uniform lighting in outdoor spaces, this luminaire offers high luminous efficiency and robustness.

Main features :

• Power consumption : 10W
• Power supply : 230Vac, with integrated power supply.
• Luminous flux :
  • Source : 924 lm (3000K)
  • Emitted : 473 lm (3000K, diffused optics)
• LED type : 66 SMD mid power LEDs with guaranteed lifespan of up to 50,000 hours (L90 B10 at 25°C).
• Color Rendering Index (CRI) : 80 , ensuring good light quality.
• Optics : Diffused, ideal for general lighting.

Materials and Finishes :

• Body : Made of anodized aluminum , which guarantees resistance and durability over time.
• Finish : Grey RAL 9006 ; other RAL finishes available on request.
• Screen : In extra-clear tempered acid-etched glass , to ensure resistance and optimal transparency.

General characteristics :

• Protection rating : IP66 , designed to resist dust and water, ideal for outdoor installations.
• Resistance grade : IK06 , shock resistant.
• Operating temperature : -20°C to +45°C .
• Maximum appliance temperature : 45°C (Ta 25°C).
• Insulation class : Class I , which guarantees adequate electrical protection.
• Energy consumption class : F (in accordance with EU regulation 2019/2015).
• Glow wire test : 960°C , confirming the thermal resistance of the device.

Protection systems :

• IPS (Intelligent Protection System) : Protects the device from water infiltration and electrical problems such as reverse polarity or overvoltage.
• PID (Protective Impedance Device) : Protection against overvoltages and electrostatic charges.

Dimensions and Weight :

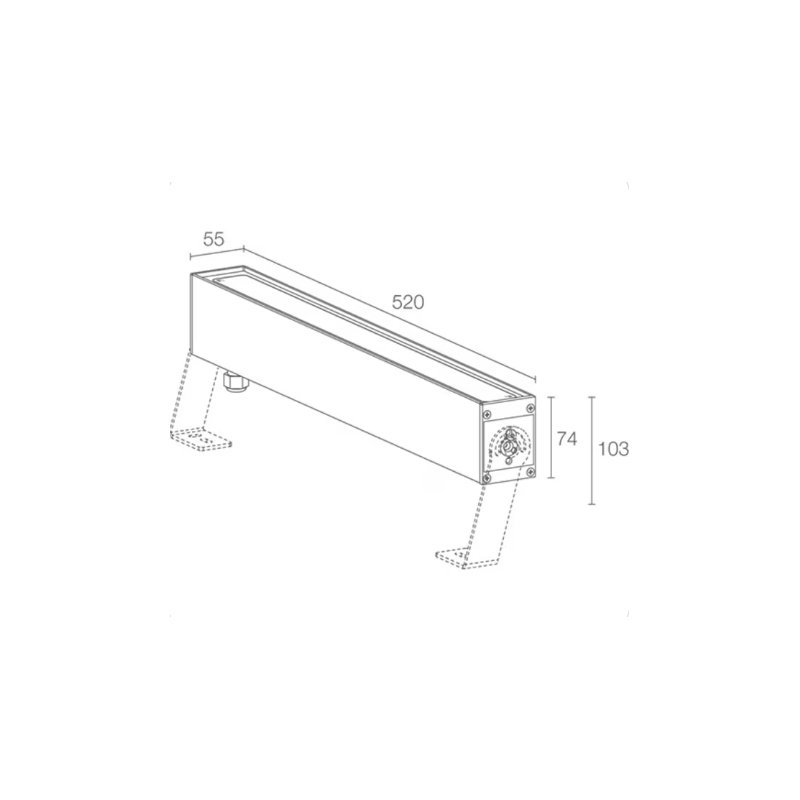

• Dimensions : 520x55x73 mm
• Weight : 3.00 kg

Accessories and Options :

• Adjustable brackets : WM0811 (125 mm) and WM0812 (275 mm).
• Control options : DALI version, 0/1-10V and Casambi management via app available.

The River Wall 1.2 is a versatile and robust outdoor lighting solution, suitable for residential or commercial applications where uniform, weather-resistant illumination is required.
