Bright1.7 Outdoor Recessed Light - 2W 24Vdc 4000K 43° Optics Stainless Steel

Bright1.7 Outdoor Recessed Light - 2W 24Vdc 4000K 43° Optics Stainless Steel

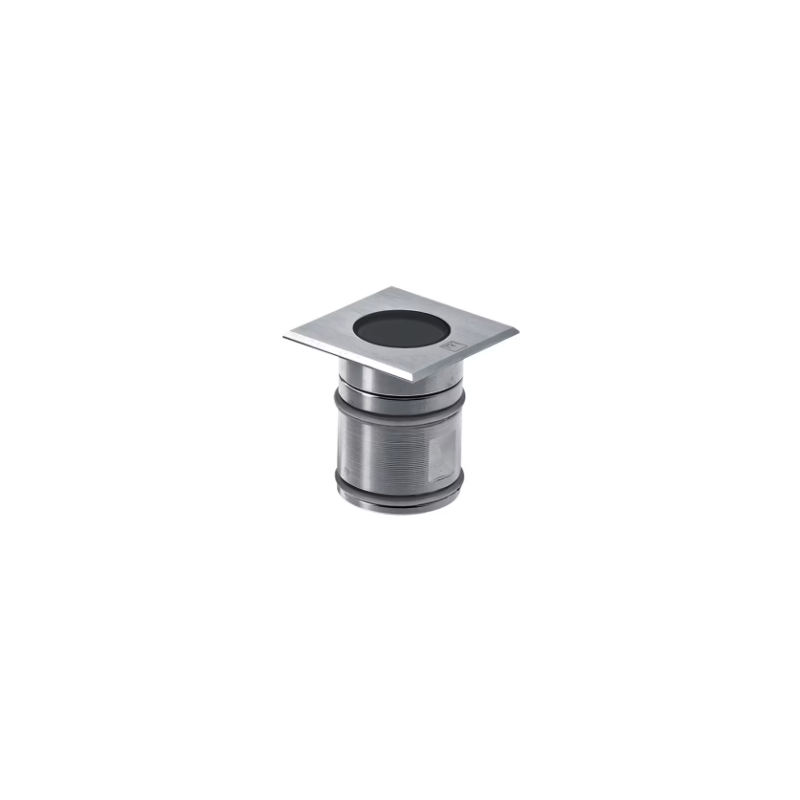

The Bright1.7 outdoor recessed light is a walkable light fixture, designed for ceiling, wall and floor applications. With a power consumption of 2W and a 4000K LED, the Bright1.7 is perfect for discreet and functional outdoor lighting of spaces such as paths, gardens and entrances. Built in AISI316L stainless steel, it guarantees a long life and high resistance to atmospheric agents, it is not suitable for immersion in swimming pools and fountains.

Bright1.7 Technical Data Sheet
Code: CB17009LI-3

Description: The Bright1.7 recessed fixture is a robust and versatile device for outdoor lighting. The optional Casambi management allows lighting control via a dedicated app, making it suitable for smart applications.

Technical Data

Electrical Features:

• Power Consumption: 2W
• Power supply: 24Vdc
• Power supply: Power supply not included

Lighting Features:

• Number and Type of LED: 1 power LED
• Average LED life: 60,000h L90 B10 (Ta 25°C)
• LED color: 4000K, for neutral and balanced lighting
• Colour Rendering Index (CRI): 80, for good light quality
• Binning: 2 step MacAdam, ensures color uniformity
• Optics: 43°, for a wide light beam distribution
• Luminous Flux at Source: 195 lm (3000K)
• Luminous Flux Emitted: 127 lm (3000K, 21° optics)

Mechanical Features:

• Dimensions: 35x35x52 mm
• Weight: 200 g
• Fixing: With fixing springs or with formwork for safe installation
• Body Material: AISI316L stainless steel body and bezel, corrosion resistant
• Screen Material: Extra-clear tempered glass for greater clarity and protection
• Mounting hole: Ø30 mm
• Technical Volume for Dissipation: Ø80x100 mm

General Features:

• Protection Grade: IP65, IP68, perfect for weather and splash resistance
• Operating Temperature: -20°C — +45°C
• Shock Resistance Rating: IK10, designed to withstand impacts
• Energy Consumption Class: F (light source) compliant with EU regulation 2019/2015
• Glow Wire Resistance Test: 960°C
• Maximum Appliance Temperature: 50°C (Ta 25°C)
• Insulation Class: Class III
• Walkable: Yes
• Driveway: No
• Power Cables: 15m H05RN-F 2x0.35/0.75 Ø6.3mm neoprene cable included, for greater flexibility in installation
• Protection Systems: IPS (Intelligent Protection System), protects against water infiltration, connection errors, polarity reversal and overvoltage
• Photobiological Safety: Complies with IEC TR 62778:2014

Available Accessories:

• WC0202: Installation formwork
• WE0500A: Semi-diffused screen, half transparent and half satin
• WE0500S: Anti-glare screen, half transparent and half black silkscreened
• WG0301: Fixing spring Ø30 mm
• WH0101: Honeycomb for a special optical effect

Additional Notes:

• Casambi Management and Control via Casambi App: Available on request with dedicated electronics, for smart and personalized management of lighting

EOL (End Of Line) Test: Tested and approved through end of line tests with verification of correct operation and control of electrical absorption parameters.

The Bright1.7 represents a robust and elegant solution for outdoor lighting. Thanks to the IP65/IP68 protection and the stainless steel construction, it guarantees resistance to the elements and long-lasting performance, making it ideal for lighting paths, gardens and facades.
