Bright 2.5 Outdoor Recessed Light - 5W 24Vdc 4000K 34° Optics Anodized Aluminum and Stainless Steel

Bright 2.5 Outdoor Recessed Light - 5W 24Vdc 4000K 34° Optics Anodized Aluminum and Stainless Steel

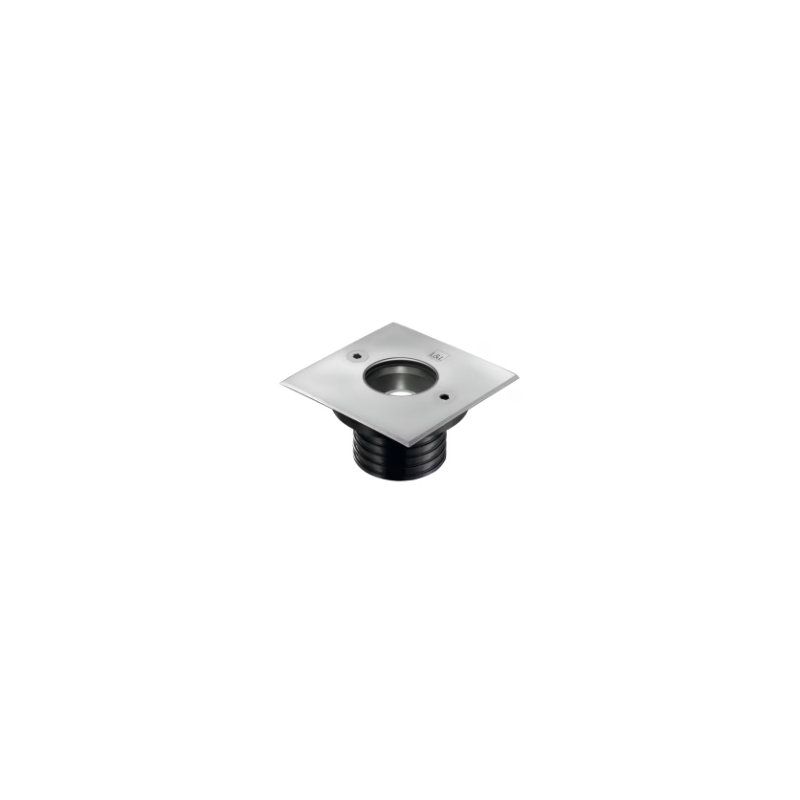

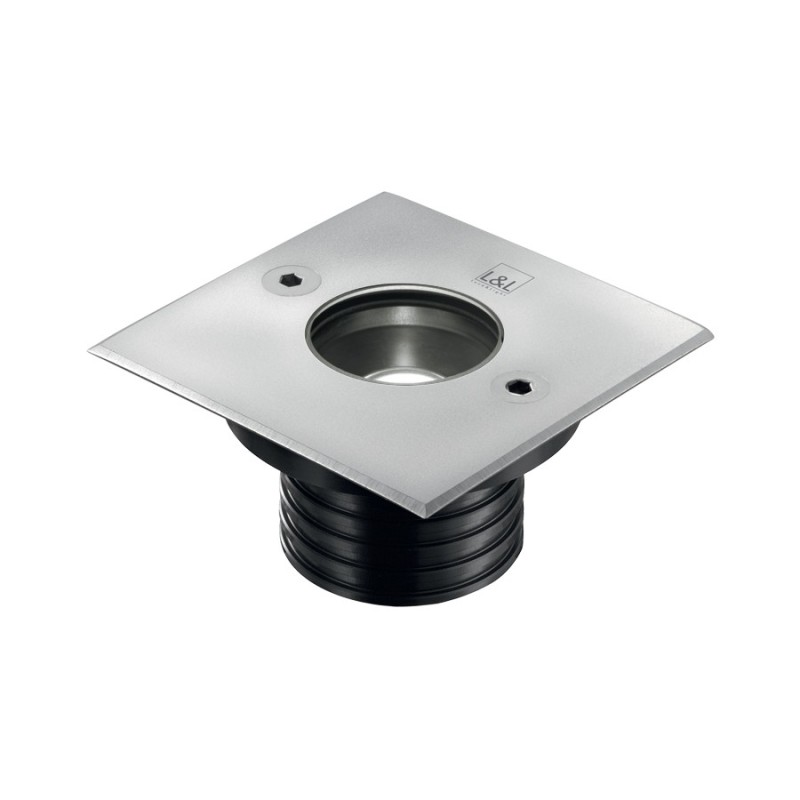

The Bright 2.5 outdoor recessed luminaire by L&L Luce&Light is a robust and versatile fixture, designed to illuminate paths, gardens and facades in outdoor environments, with a drive-over capacity of up to 2000 kg. Thanks to its anodized aluminum body and AISI 316L stainless steel ring, Bright 2.5 is ideal for applications that require weather resistance and durability. The fixture offers a 4000K white light, perfect for creating balanced and functional lighting.

Bright 2.5 Technical Data Sheet
Code: CB250009MAI-3

Description: The Bright 2.5 is an outdoor recessed lighting solution designed to withstand harsh conditions and support heavy loads. With optional Casambi management, the Bright 2.5 also offers intelligent control to suit various outdoor lighting projects.

Technical Data

Electrical Features:

• Power Consumption: 5W
• Power supply: 24Vdc
• Power supply: Power supply not included

Lighting Features:

• Number and Type of LED: 1 High Intensity Power LED
• Average LED life: 50,000 hours L90 B10 (Ta 25°C)
• LED color: 4000K, neutral white light for balanced and comfortable lighting
• Color Rendering Index (CRI): 80, ensuring good light quality and accurate color rendering
• Binning: 3 step MacAdam, to ensure color uniformity
• Optics: 34°, designed to provide a wide and well-distributed light beam
• Luminous Flux at Source: 488 lm (3000K, 5W, CRI 80)
• Luminous Flux Emitted: 352 lm (3000K, 34°, 5W, CRI 80)

Mechanical Features:

• Dimensions: 85x85x63 mm
• Weight: 440 g
• Body and Finishes: Body in black anodized anticorodal aluminum, ring in AISI 316L stainless steel, which guarantees high resistance to corrosion
• Screen Material: Extra-clear tempered transparent glass, designed to resist impacts and ensure good light diffusion
• Fixing: With fixing springs or with formwork for a stable and safe installation
• Mounting hole: Ø70 mm
• Technical Volume for Dissipation: Ø180 x 120 mm

General Features:

• Protection Grade: IP65, IP68, IP69, suitable for dust and water resistance, perfect for outdoor installations exposed to atmospheric agents
• Operating Temperature: -20°C to +45°C
• Shock Resistance Rating: IK10, ensuring shock resistance and long operating life
• Energy Consumption Class: F, compliant with EU regulation 2019/2015
• Glow Wire Resistance Test: 960°C
• Maximum Appliance Temperature: 55°C (Ta 25°C)
• Insulation Class: Class III
• Walkable and Driveable: Yes, driveable up to 2000 kg, ideal for driveways and pedestrian and vehicular paths
• Power Cables: 15m H05RN-F 2x0.75/0.75 Ø6.3mm neoprene cable included, for greater flexibility in installation
• Protection Systems:
  • IPS (Intelligent Protection System): Protects against water infiltration, cable splice errors, and other electrical phenomena.
  • PID (Protective Impedance Device): Protects against external electrical phenomena, such as accumulation of electrostatic charges and overvoltages.
• Photobiological Safety: Complies with IEC TR 62778:2014

Available Accessories:

• WC0100, WC0103, WC0150: Installation formwork
• WE0400A: Semi-diffused screen, half transparent and half satin
• WE0400S: Anti-glare screen, half transparent and half black silkscreened
• WG0100: Fixing spring Ø70 mm
• WH0201: Honeycomb for a special optical effect

Additional Notes:

• Versions Available on Request:
  • 5° Optics: Version with 3.5W power and white LED color for a narrow light beam.
  • Power 9W: Version with white LED for greater light intensity.
  • Casambi Management and Control via Casambi App: Available on request for smart lighting control.

EOL (End Of Line) Test: Tested and approved through end of line tests with verification of correct operation and control of electrical absorption parameters.

The Bright 2.5 represents a versatile and robust solution for lighting outdoor environments with high resistance to atmospheric agents. Thanks to its IP65/IP68/IP69 protection degree and the anodized aluminum and stainless steel construction, it is designed to guarantee long-lasting performance, suitable for driveways and outdoor driveways.
