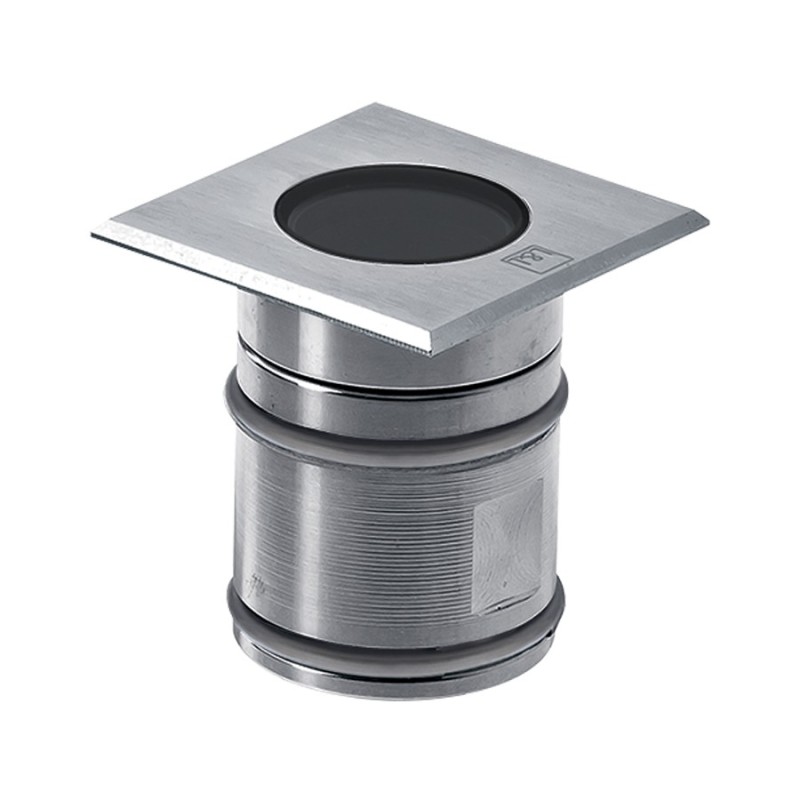

Bright1.7 Outdoor Recessed Light - 2W 24Vdc 3000K Diffused Stainless Steel

Bright1.7 Outdoor Recessed Light - 2W 24Vdc 3000K Diffused Stainless Steel

The Bright1.7 outdoor recessed light is a walkable light fixture, designed for ceiling, wall and floor applications, making it perfect for discreet and functional lighting of outdoor spaces such as paths, gardens and entrances. Made of AISI316L stainless steel, it guarantees high resistance to atmospheric agents and a long operating life. This fixture is not suitable for immersion in swimming pools and fountains.

Bright1.7 Technical Data Sheet
Code: CB17005SI

Description: The Bright1.7 recessed light combines functionality, robust design and durability to create versatile outdoor lighting. It is available in stainless steel with the option of a custom RAL finish on request, and offers optional Casambi control for smart control via app.

Technical Data

Electrical Features:

• Power Consumption: 2W
• Power supply: 24Vdc
• Power supply: Power supply not included

Lighting Features:

• Number and Type of LED: 1 power LED
• Average LED life: 60,000h L90 B10 (Ta 25°C)
• LED color: 3000K, ideal for warm and cozy lighting
• Colour Rendering Index (CRI): 80
• Binning: 2 step MacAdam, to ensure uniformity in light tone
• Optics: 10°, for a concentrated light beam
• Luminous Flux at Source: 195 lm (3000K)
• Luminous Flux Emitted: 127 lm (3000K, 21°)

Mechanical Features:

• Dimensions: 35x35x52 mm
• Weight: 200 g
• Fixing: With fixing springs or with formwork for a safe and versatile installation
• Body Material: Body and ring in AISI 316L stainless steel, extremely resistant to corrosion
• Screen Material: Extra-clear tempered transparent glass, for greater resistance and light quality
• Mounting hole: Ø30 mm
• Technical Volume for Dissipation: Ø80x100 mm

General Features:

• Degree of Protection: IP65, IP68, ideal for outdoor applications
• Operating Temperature: -20°C — +45°C
• Impact Resistance Rating: IK10, ensuring impact resistance and long operating life
• Energy Consumption Class: F (light source) compliant with EU regulation 2019/2015
• Glow Wire Resistance Test: 960°C
• Maximum Appliance Temperature: 50°C (Ta 25°C)
• Insulation Class: Class III
• Walkable: Yes
• Driveway: No
• Power Cables: 1.5m neoprene cable H05RN-F 2x0.35/0.75 Ø6.3mm included
• Protection Systems: IPS (Intelligent Protection System), protects against water infiltration, polarity reversal, overvoltage and other electrical phenomena
• Photobiological Safety: Complies with IEC TR 62778:2014

Available Accessories:

• WC0202: Installation formwork
• WE0500A: Semi-diffused screen, half transparent and half satin
• WE0500S: Anti-glare screen, half transparent and half black silkscreened
• WG0301: Fixing spring Ø30 mm
• WH0101: Honeycomb

Additional Notes:

• Casambi Management and Control via Casambi App: Available on request with dedicated electronics for smart and personalized control

EOL (End Of Line) Test: Tested and approved through end of line tests with verification of correct operation and control of electrical absorption parameters.

The Bright1.7 outdoor recessed light is a robust and elegant solution for lighting outdoor spaces. With a walkable design and made from high-quality materials, Bright1.7 is designed to withstand the elements and provide superior lighting, suitable for paths, gardens and facades.
