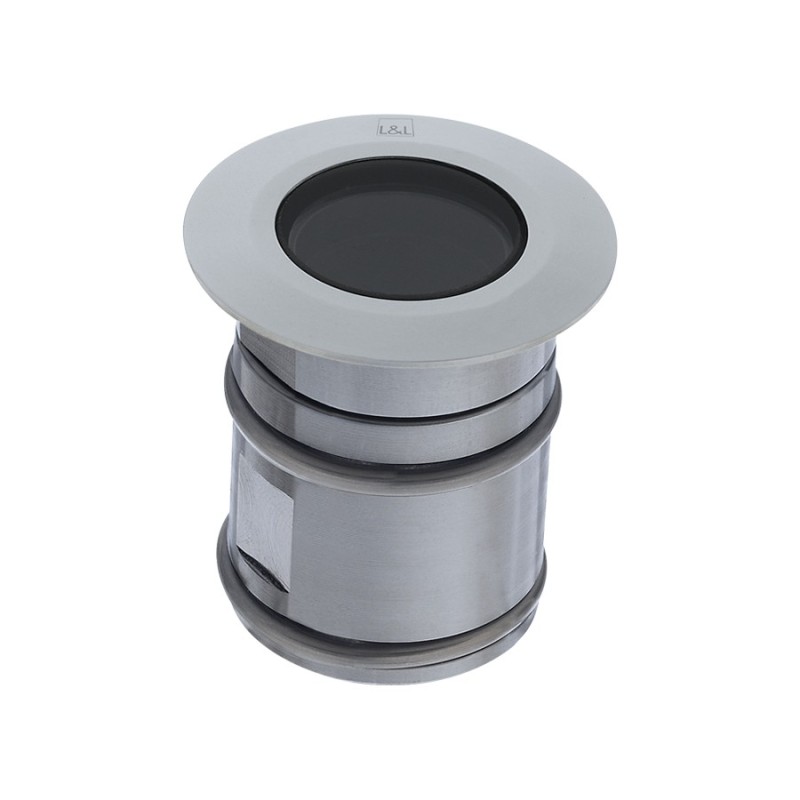

Bright1.0 Outdoor Recessed - 2W 4k 500mA Diffused Stainless Steel

Bright1.0 Outdoor Recessed Light - 2W 500mA 4000K Diffused Stainless Steel

The Bright1.0 outdoor recessed luminaire is a walkable fixture designed for ceiling, wall or floor lighting applications in outdoor environments. With a maximum power of 2W, the Bright1.0 is ideal for illuminating paths, gardens and architectural outdoor spaces, ensuring discreet and quality lighting. Made of AISI316L stainless steel, it offers high resistance to atmospheric agents and a long life. This product is not suitable for use in immersion in swimming pools and fountains.

Bright1.0 Technical Data Sheet
Code: CB10129DAI

Technical Data

Electrical Features:

• Power Consumption: Max 2W
• Power supply: Max 500mA
• Power supply: Power supply not included
• Management: Dimming available via dimmable power supply
• Connection: In series

Lighting Features:

• Number and Type of LED: 1 power LED
• Average LED life: 60,000h L90 B10 (Ta 25°C)
• LED color: 4000K
• Colour Rendering Index (CRI): 80
• Binning: 2-step MacAdam
• Optics: Diffused
• Luminous Flux at Source: 195 lm (3000K, 500mA)
• Luminous Flux Emitted: 127 lm (3000K, 500mA, 21° optics)

Mechanical Features:

• Dimensions: Ø35x52 mm
• Weight: 200 g
• Fixing: Fixing springs or formwork
• Body Material: AISI316L stainless steel body and ring
• Screen Material: Acid-etched tempered glass
• Mounting hole: Ø30 mm
• Technical Volume for Dissipation: Ø80x100 mm

General Features:

• Degree of Protection: IP65, IP68
• Operating Temperature: -20°C — +45°C
• Shock Resistance Rating: IK10
• Energy Consumption Class: F (light source) compliant with EU regulation 2019/2015
• Glow Wire Resistance Test: 960°C
• Maximum Appliance Temperature: 50°C (Ta 25°C)
• Insulation Class: Class III
• Walkable: Yes
• Driveway: No
• Power Cables: 1.5m neoprene cable H05RN-F 2x0.35/0.75 Ø6.3mm included
• Protection Systems: IPS (Intelligent Protection System) to prevent water infiltration and protect against connection errors and overvoltages
• Photobiological Safety: Complies with IEC TR 62778:2014
• Note: Available on request version with 2200K LED color; Casambi management and control via Casambi app with dedicated electronics

Available Accessories:

• WC0202: Installation formwork
• WG0301: Fixing spring Ø30 mm

EOL (End Of Line) Test: Tested and approved through end of line tests with verification of correct operation and control of electrical absorption parameters.

The Bright1.0 outdoor recessed fixture is a versatile and robust lighting solution for outdoor environments, perfect for creating refined and functional lighting in gardens, paths and architectural spaces. Made of high-quality materials and featuring IP65/IP68 protection, it is designed to withstand the elements, ensuring long-lasting and reliable performance.
