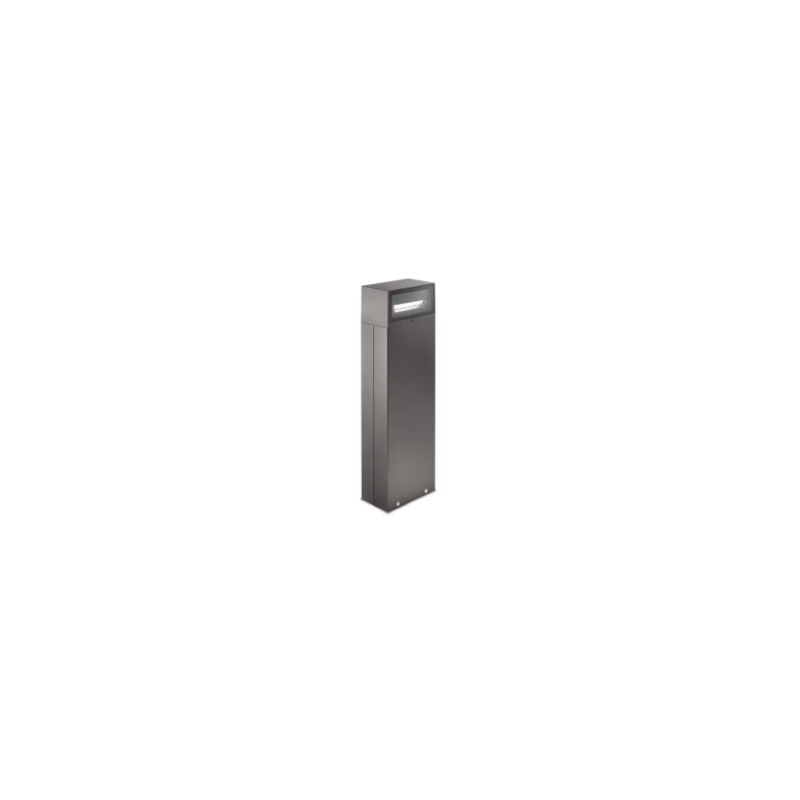

Outdoor bollard Bitta1.1 20W Double emission Anthracite - 4000K

Outdoor bollard Bitta1.1 20W Double emission Anthracite - 4000K

The Bitta1.1 outdoor bollard with double emission is designed to illuminate gardens, paths and public spaces in an elegant and functional way. With a power of 20W and a double light emission, this device is ideal for creating a well-lit atmosphere in outdoor environments. The anthracite finish gives it a modern and sober look, suitable for different types of environments.

Main features:

• Outdoor bollard light with double emission: Light emission upwards and downwards for uniform and designer lighting, ideal for outdoor areas such as gardens and paths.
• Surface Mount (Floor): Floor mounted, ensuring stability and easy installation on various outdoor surfaces.
• Power Consumption: 20W, with efficient and low consumption lighting.
• Power supply: 230V AC.
• Luminous Flux at the Source: 1454 lm (3000K).
• Luminous Flux Emitted: 512 lm (3000K), with optimal efficiency for illuminating large outdoor spaces.
• Light Source: 10 power LEDs with 1/4 ANSI BIN technology and an estimated lifespan of 50,000 hours L90 B10 (at 25°C).
• LED Color Temperature: 4000K, ideal for creating neutral and well-balanced lighting.
• Asymmetric Optic: The asymmetric light distribution reduces the dispersion of light upwards, contributing to direct and effective lighting.
• Percentage of Upward Flow Emitted: 1.24%.
• Colour Rendering Index (CRI): 80, ensuring good colour rendering and natural light.
• Body Material: Die-cast aluminum head and stainless steel column, designed to ensure optimum resistance to external conditions.
• Anthracite Finish: Available in anthracite finish, with custom RAL finish available upon request.
• Screen Material: Extra-clear, tempered, transparent and silk-screened glass screen for greater protection and transparency.
• Built-in Power Supply: Built-in power supply for convenience and easy installation.
• Connection Muffle with 0.30 m Cable Included.
• IP65 Protection Rating: Designed to withstand the elements, ideal for outdoor use.
• IK07 Impact Resistance Rating: Protection from mechanical impacts and shocks.
• Casambi Control System (Optional): Casambi compatible version available on request for smart control via dedicated app.
• PID Protection System: The PID (Protective Impedance Device) protects the appliance from external electrical phenomena, such as accumulations of electrostatic charges and impulses from the electrical network.
• Operating Temperature: -20°C — +45°C.
• Glow Wire Resistance Test: 960°C.
• Photobiological Safety: Risk Group 1 according to EN 62471:2006.
• Insulation Class: Class I.
• Weight: 4800 g for height 600 mm; 5700 g for height 800 mm.
• Dimensions: 170 x 100 x 600/800 mm.
• Energy Efficiency Class: F (light source) compliant with EU regulation 2019/2015.

Available Accessories:

• WT60600H: Column - total height 600 mm - anthracite.
• WT60800H: Column - total height 800 mm - anthracite.

EOL (End Of Line) Test: Tested and approved through end of line tests with verification of correct operation and control of electrical absorption parameters.

This Bitta1.1 outdoor bollard represents a reliable and design solution for the illumination of outdoor spaces, combining high performance with refined aesthetics. The robust construction and high-quality materials guarantee long life and resistance to atmospheric agents, making it ideal for a wide range of outdoor applications.
