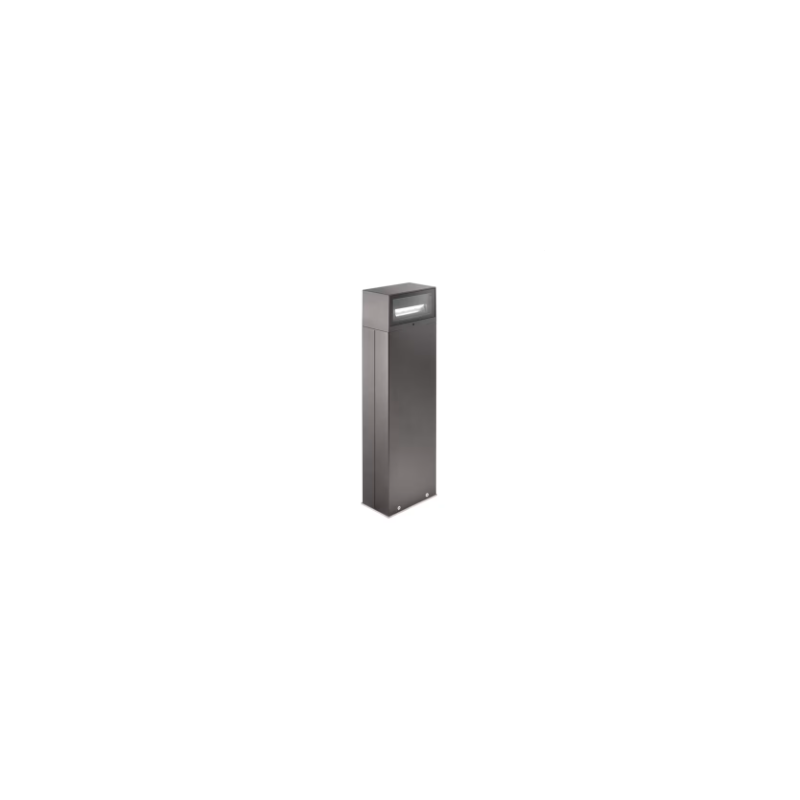

Bitta1.0 Outdoor Lighting Pole - 10W 3000K Single Beam Anthracite

Outdoor Lighting Pole - 10W 3000K Single Beam Anthracite

This outdoor pole light, with single beam, is designed to provide functional and modern lighting in outdoor environments. With a power of 10W and an elegant design in anthracite finish, it represents an ideal solution for illuminating gardens, paths and public areas, ensuring high performance and a long operating life.

Main features:

• Outdoor Pole with Single Beam: Ideal for illuminating outdoor areas such as gardens, driveways and public spaces, with a single beam lighting that ensures directional and uniform lighting.
• Floor Mounted: Surface mounted on the floor, easy to install on different surfaces for stable and functional lighting.
• Power Consumption: 10W, ensuring high energy efficiency.
• Power supply: 230V AC.
• Luminous Flux at Source: 727 lm (3000K).
• Luminous Flux Output: 256 lm (3000K).
• Light Source: 5 power LEDs with 1/4 ANSI BIN technology and an estimated lifespan of 50,000 hours L90 B10 (at 25°C).
• LED Color Temperature: 4000K, ideal for creating a neutral and bright atmosphere.
• Asymmetric Optic: For uniform illumination that minimizes upward light dispersion, with an upward flux fraction of 1.24%.
• Colour Rendering Index (CRI): 80, ensuring good colour rendering and natural light.
• Body Material: Die-cast aluminum head, stainless steel column, designed to withstand the most adverse outdoor conditions.
• Anthracite Finish: Available in anthracite color, with custom RAL finish on request, to suit any design need.
• Diffuser Material: Diffuser in extra clear, tempered and transparent glass with silkscreen printing, for greater transparency and protection.
• Integrated Power Supply Unit: Built-in power supply for added convenience.
• Connection Box with 0.30 m Cable Included.
• IP65 Protection Class: Designed to be water and dust resistant, perfect for outdoor environments.
• IK07 Impact Resistance: Protection from mechanical impacts.
• Control System: Casambi compatible version available on request for smart control via dedicated app.
• Protection Systems: PID (Protective Impedance Device) to protect the appliance from external electrical phenomena, such as the accumulation of static electricity or electromagnetic interference from the electrical network.
• Operating Temperature: -20°C — +45°C.
• Glow Wire Resistance Test: 960°C.
• Photobiological Safety: Risk Group 1 according to EN 62471:2006.
• Appliance Class: Class I.
• Weight: 4800 g for height 600 mm; 5700 g for height 800 mm.

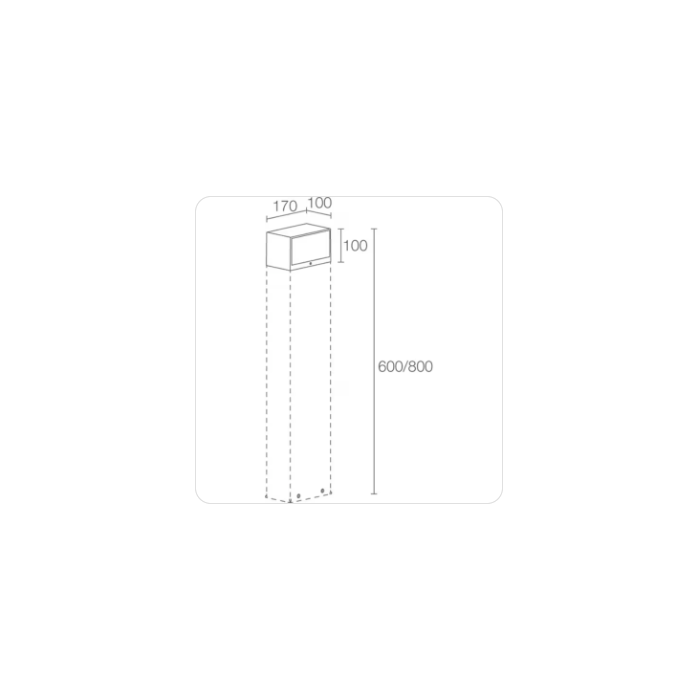

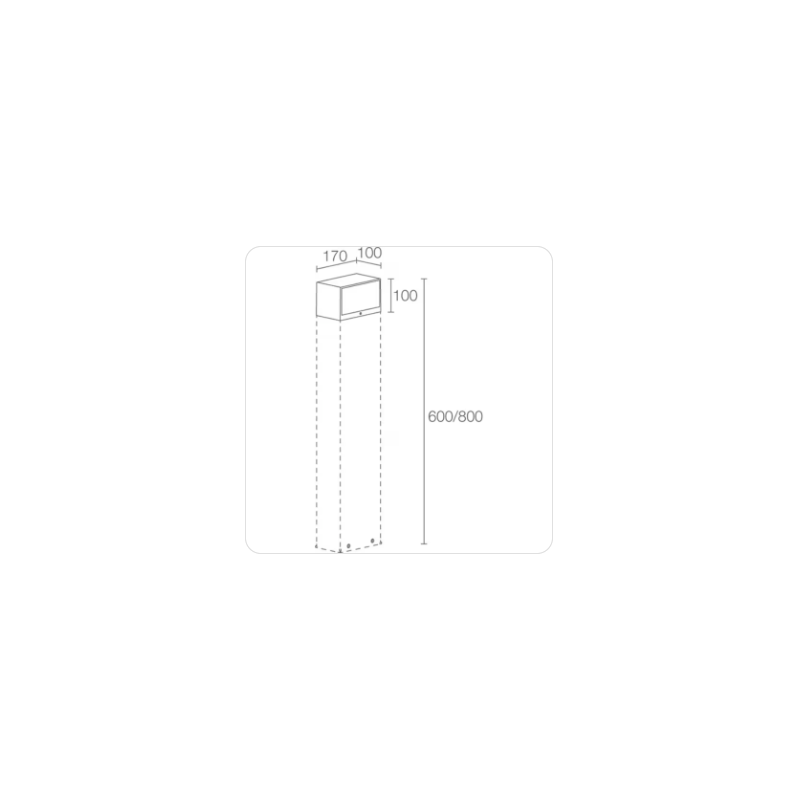

• Dimensions: 170 x 100 x 600/800 mm.
• Energy Efficiency Class: F (light source) compliant with EU regulation 2019/2015.

Accessories Available to order separately:

• WT60600H: Column - total height 600 mm - anthracite.
• WT60800H: Column - total height 800 mm - anthracite.

EOL (End Of Line) Test: Tested and approved with verification of correct operation and control of electrical consumption.

This lighting pole represents a reliable and design solution for outdoor lighting, combining high performance with refined aesthetics. With an asymmetric optic and a robust construction in stainless steel and die-cast aluminum, it offers long life and optimal resistance to atmospheric agents.
