Inverter x1-4.2t single phase

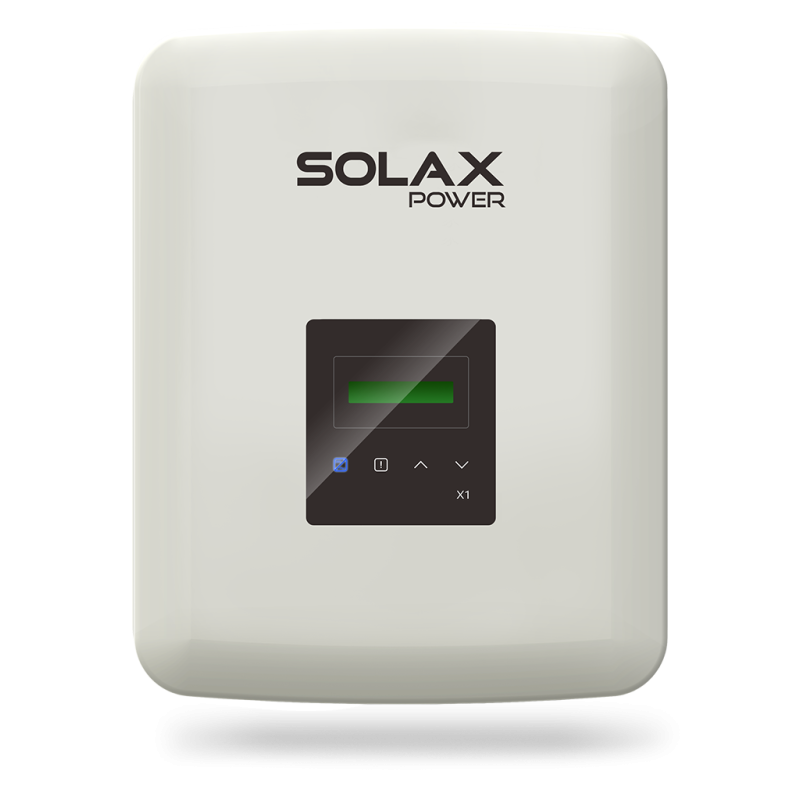

The SolaX X1-4.2-TD single phase inverter is designed to optimize the performance of medium-sized residential photovoltaic systems, offering an efficient and reliable solution for converting solar energy into usable electricity.

Main features:

• Nominal power: 4.2 kW, ideal for medium-sized domestic systems.

• Number of MPPT: 2 independent MPPT trackers, allowing you to maximize energy harvest by managing multiple strings of solar panels separately.

• Maximum efficiency: Up to 97.8%, ensuring optimal energy conversion.

• Maximum input voltage: 600 V, with an MPPT voltage range of 70 V to 580 V, offering flexibility in system configuration. solarity.shop

• Degree of protection: IP65, which ensures resistance to atmospheric agents and allows installation both indoors and outdoors.

• Fanless Design: Quiet operation and less maintenance due to no moving parts.

• Connectivity: Plug & play Wi-Fi option, facilitating remote monitoring and system management via dedicated applications.

• Compatibility: Supports integration with the SolaX Smart Plug , allowing remote control of connected devices. ​solenapp +5 aussiesolarbattery.com.au +5 solarity.shop +5

Technical specifications:

• Rated input voltage (DC): 360 V.

• Maximum input current (DC): 28 A.

• Rated output voltage (AC): 220/230/240V; operating range 180V to 280V. solaxpower.com

• Mains frequency: 50/60 Hz, with a tolerance of ±5 Hz.

• Dimensions (W x H x D): 341.5 mm x 430 mm x 143 mm. solaxpower.com

• Weight: 14.5 kg.

• Operating temperature range: -25°C to +60°C, with derating above 45°C. solaxpower.com

Advantages:

• Easy installation: Thanks to its compact size and low weight, the inverter is easy to install and integrate into the existing system.

• Advanced Monitoring: Optional Wi-Fi connectivity enables real-time monitoring of system performance, improving management and energy efficiency.

• Reliability: Built with high-quality materials and equipped with built-in protections against overvoltage, overcurrent and high temperatures, ensuring a long operating life.
