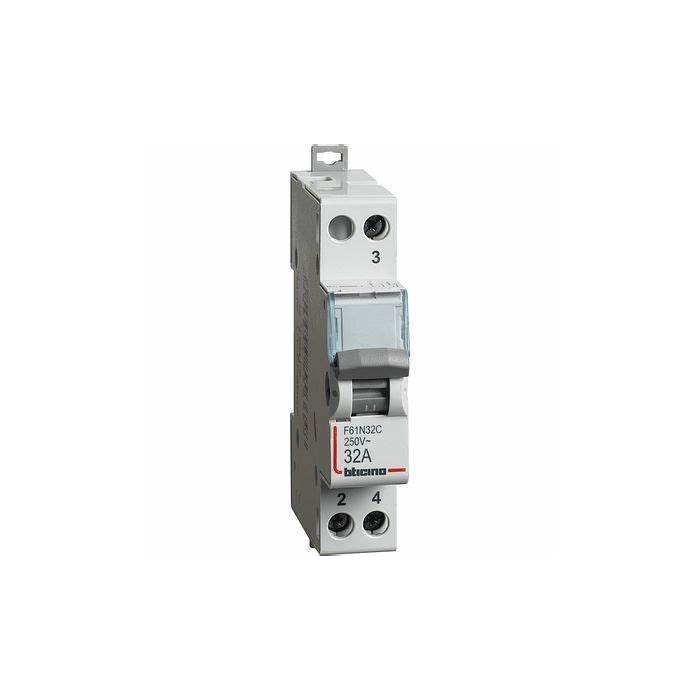

Switch with central zero 2no 32a 230/400v
Differential circuit breaker btdin-rs 1p+n type f - in. 25a - idn. 0.03a

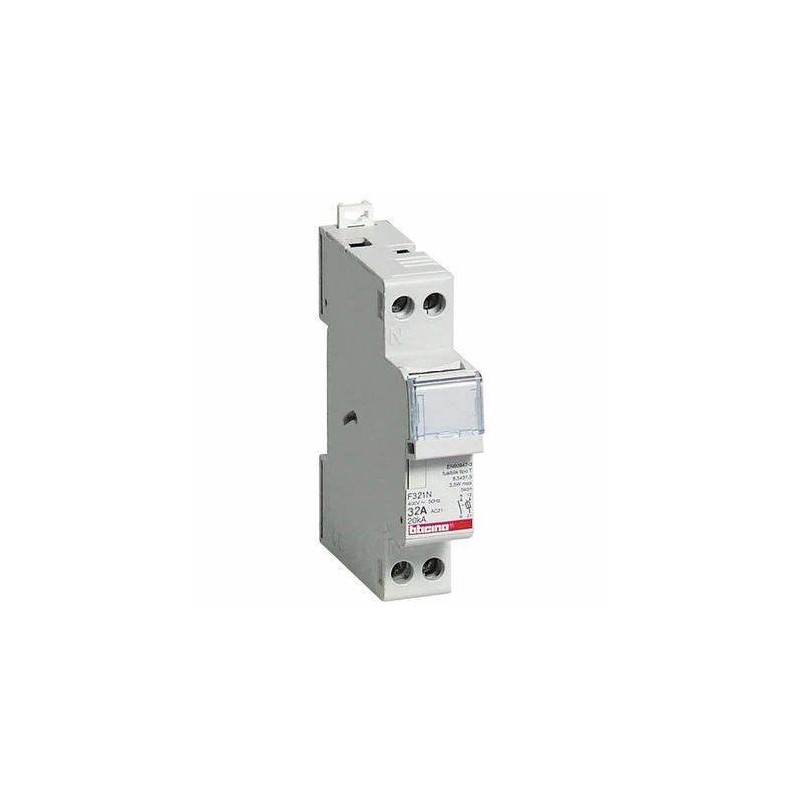

Fuse holder 1p disconnector type f fuses

€5.00
Tax included
BTICINO SPA
F321
New
3 Items
Last items in stock
Quantity
Add to Wishlist

Power Distribution
  • Security Policies
    Security Policies
  • Shipping Policies
    Shipping Policies

  • Model : F321 (1P), F321N (1P+N) – 1 module on DIN rail

  • Rated current (In) : 32 A

  • Rated voltage : 500 V AC

  • Usable fuses : diam. 10 × 38 mm type F

  • Number of poles : 1P or 1P+N (version with neutral)

  • Neutral connection : present only in the F321N version (1P+N)

  • Degree of protection : IP20

  • Dimensions :

    • Height: 83 mm

    • Width: 17.7mm per module

    • Depth: 73 mm

  • Class and standard : CEI EN 60947-3 / IEC 269-3.1

  • Permitted cable cross-section : up to 10–16 mm² (F321N), up to 25–35 mm² (F321)

BTIF321
3 Items

Specific References

EAN13
8012199163352
MPN
F321
