Fuse holder disconnector 3p+n fuses type f

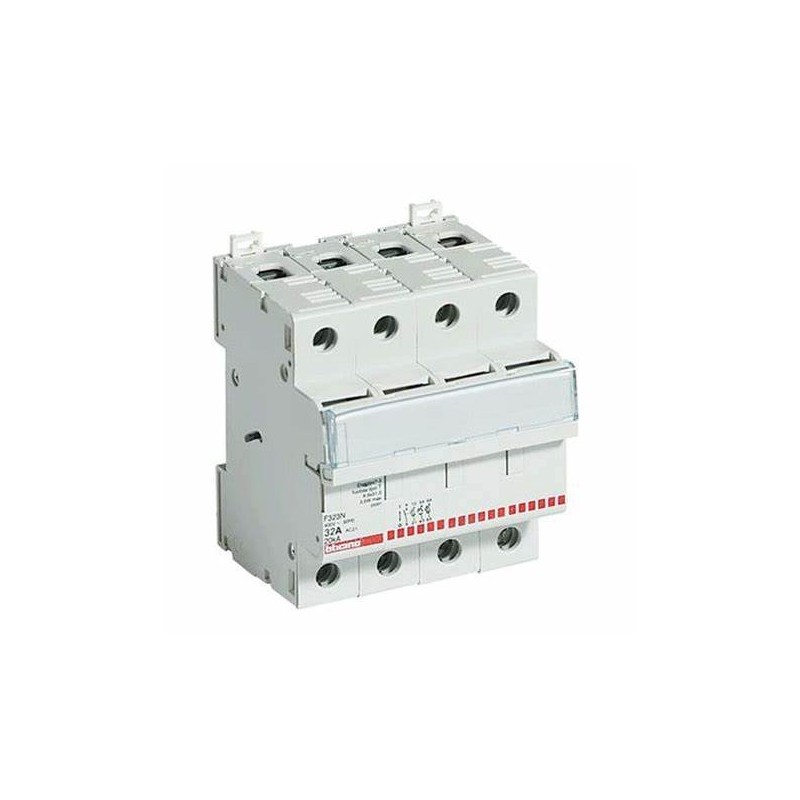

BTicino F323N Fuse Holder Disconnector –
Rated current 32 A , voltage up to 500 V , compatible with 10 × 38 mm type F fuses. Occupation of 4 DIN modules , ideal for protection groups or sectioning in electrical panels.

Technical Specifications

• Number of poles : 3 phases + neutral (3P+N)

• Rated voltage : 500 V

• Fuse : 10 × 38 mm type F (industry standard size)

• Mounting : snap-on to DIN EN 60715 rail

• Protection : IP20

• DIN modules occupied : 4

• Dimensions (approx.): depth 67 mm, height 83–94 mm
