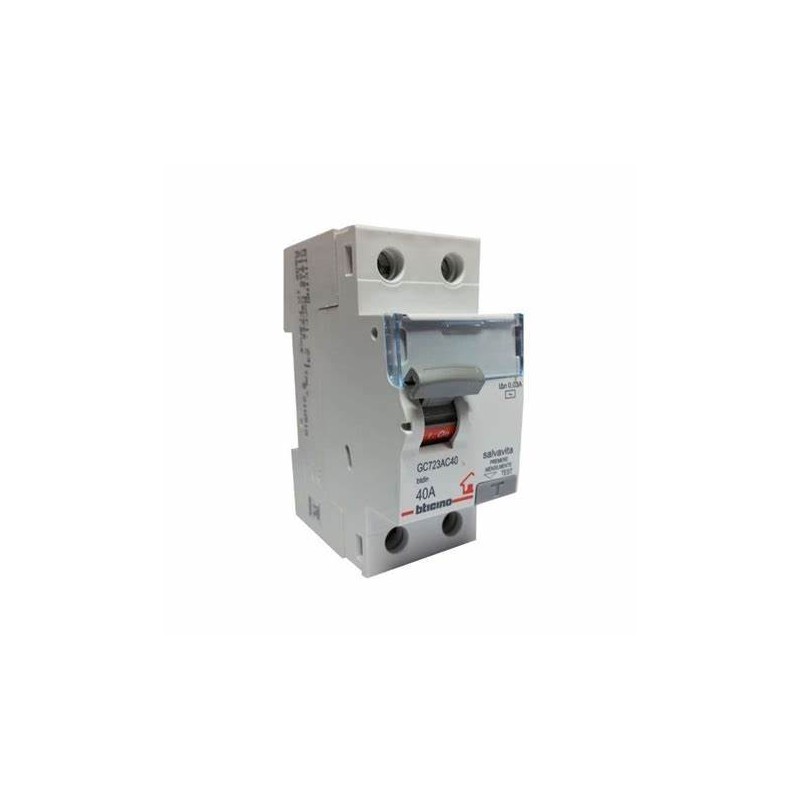

2p differential switch - ac type - in. 40a - idn. 0.03a

Pure 2-pole differential switch, designed to ensure the protection of people against leakage currents. Ideal for circuits without sensitive electronic components (e.g. traditional lighting, water heaters, electrical resistances).

Main features:

• Rated current (In): 40 A

• Rated differential current (Idn): 0.03 A (30 mA)

• Differential type: AC (detects alternating currents at 50 Hz)

• Output ports: 2 poles (phase and neutral)

• Mounting: 2 modules on DIN rail

• Rated voltage: 230/400 V~

• Cable protection up to: 25–35 mm²

• Dimensions: H 83 mm × W 35.6 mm × D 76 mm

• Degree of protection: IP20

• Regulations: CEI EN 61008‑1, CE marking
