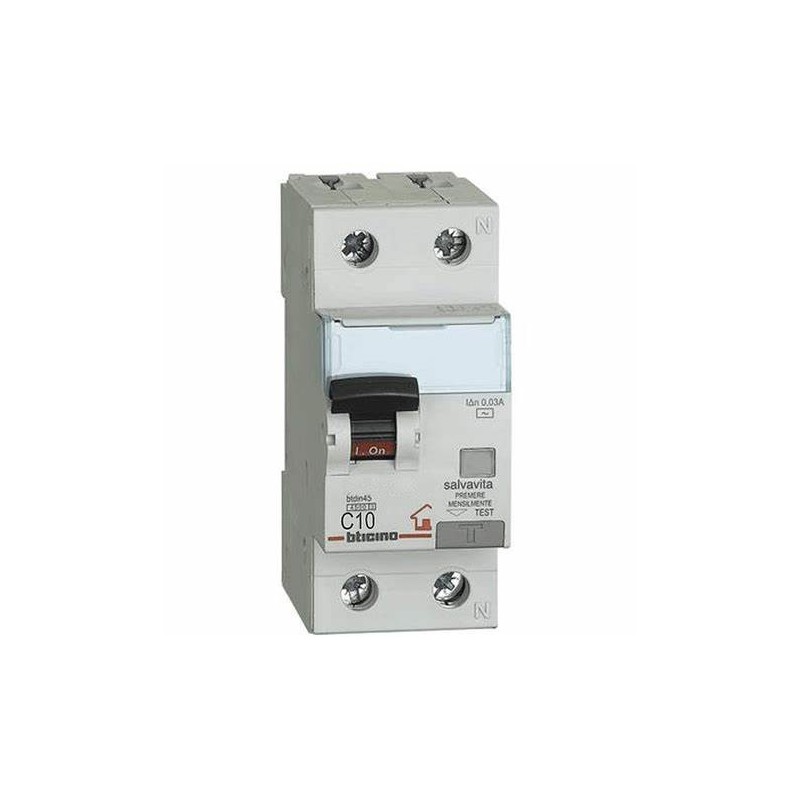

Differential circuit breaker btdin-rs 1p+n type f - in. 10a - idn. 0.03a

BTicino GC8813F10 is a compact differential magnetothermal switch (RCBO) of the BTDIN-RS series, designed to ensure protection against overloads, short circuits and current leakage. It is particularly suitable for the protection of circuits with sensitive electronic loads , thanks to its type F intervention curve, which offers advanced protection from differential currents with variable frequencies.

Main technical features:

• Series : BTDIN-RS

• Differential protection type : Type F
  (sensitive to alternating, pulsating and variable frequency currents – e.g. inverters, heat pumps, washing machines, air conditioners)

• Configuration : 1P+N (1 protected pole + neutral)

• Rated current (In) : 10 A

• Rated differential current (Idn) : 30 mA

• Intervention curve : type C

• Breaking capacity : 4.5 kA

• Rated voltage : 230 V~

• Frequency : 50/60 Hz

• Mounting : DIN rail (2 modules)

• Degree of protection : IP20 (IP40 with closed panels)

• Reference standards : CEI EN 61009-1
