Differential circuit breaker btdin60 1p+n type a - in. 16a - idn. 0.03a

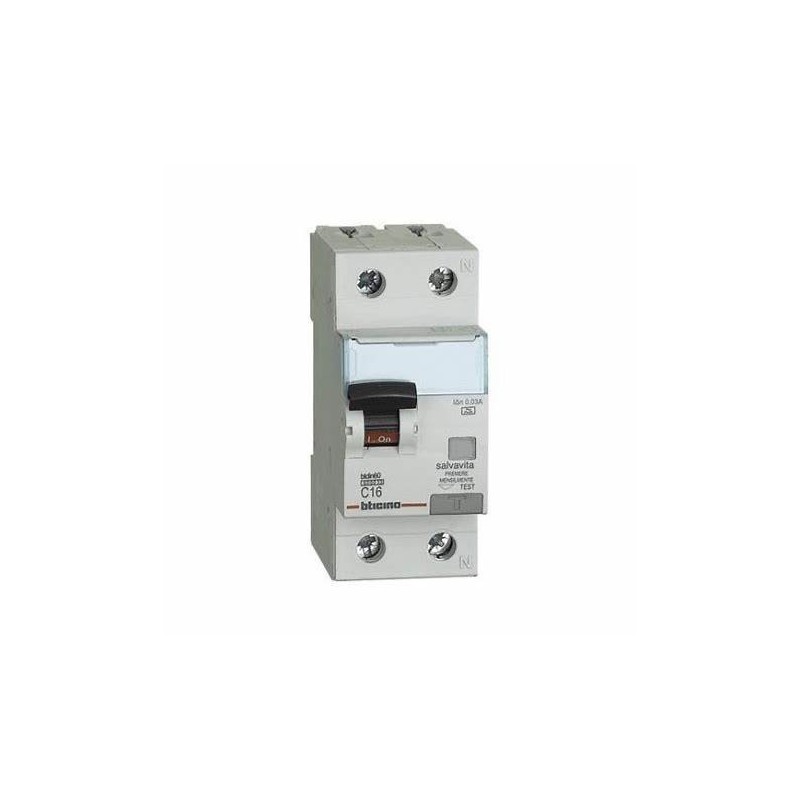

BTicino GN8813A16 – BTDIN60 1P+N Differential Circuit Breaker
Life saver and circuit breaker in a single module, ideal for protecting single circuits (e.g. kitchen, bathroom, dedicated sockets). DIN rail mounting, 2 standard modules.

Main features:

• Mounting : 1 pole + neutral (1P+N), 2 DIN modules

• Rated current (In) : 16 A

• Differential current (Idn) : 0.03 A (30 mA), type A

• Intervention curve : type C

• Breaking capacity (Icn) : 6 kA

• Rated voltage : 230 Vac

• Protected poles : 1 pole + neutral

• Degree of protection : IP20

• Dimensions : 35.6 × 83 × 76 mm

• Permitted cable section : up to 25/35 mm²

• Reference standards : CEI EN 61009‑1
