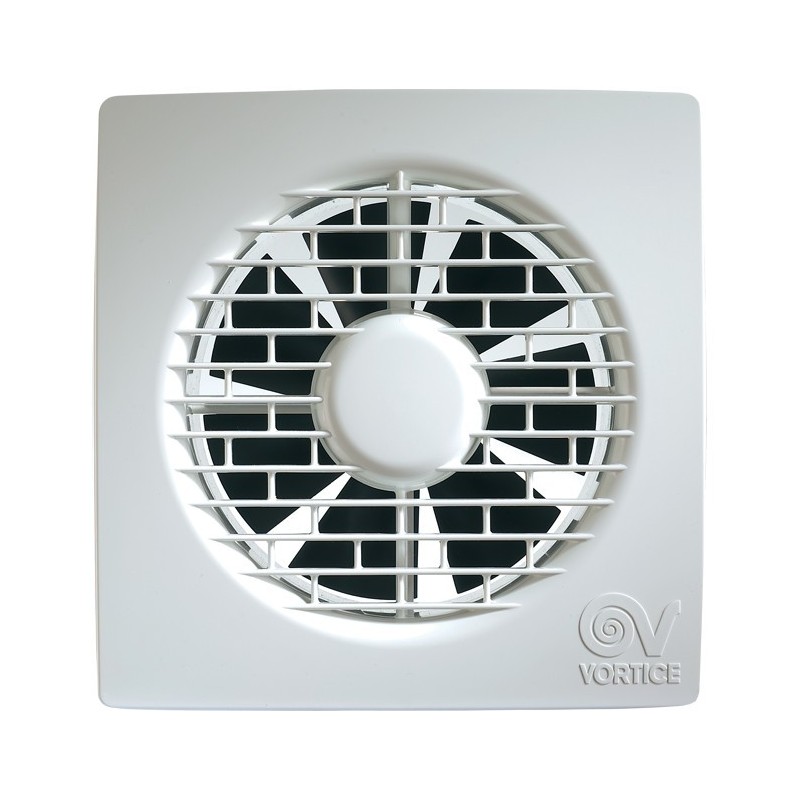

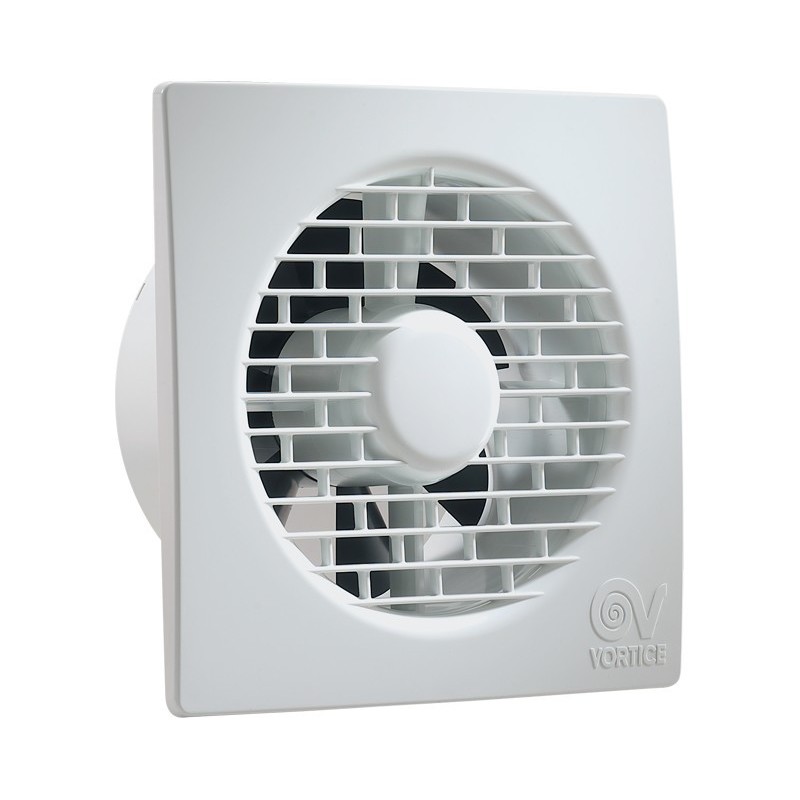

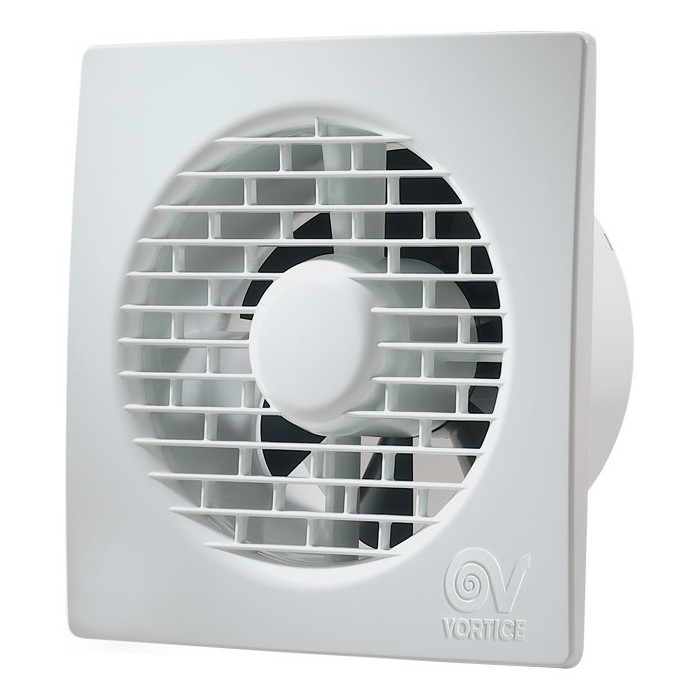

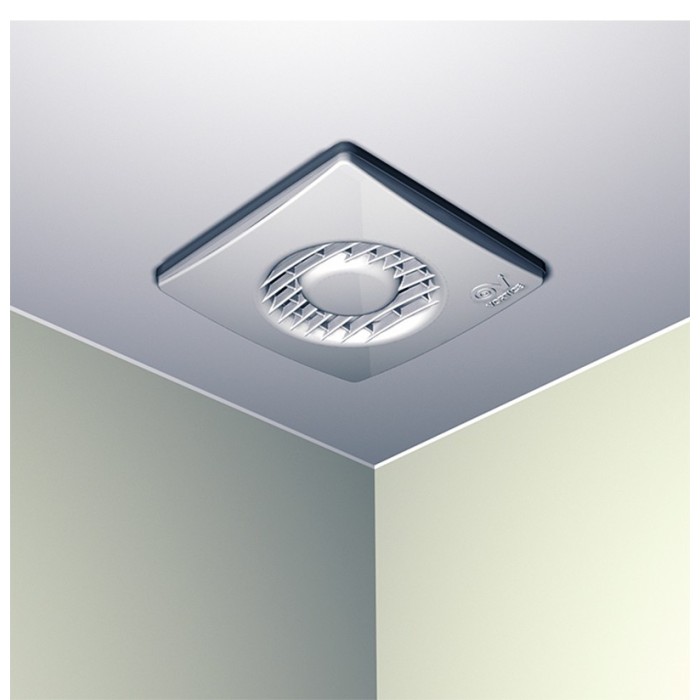

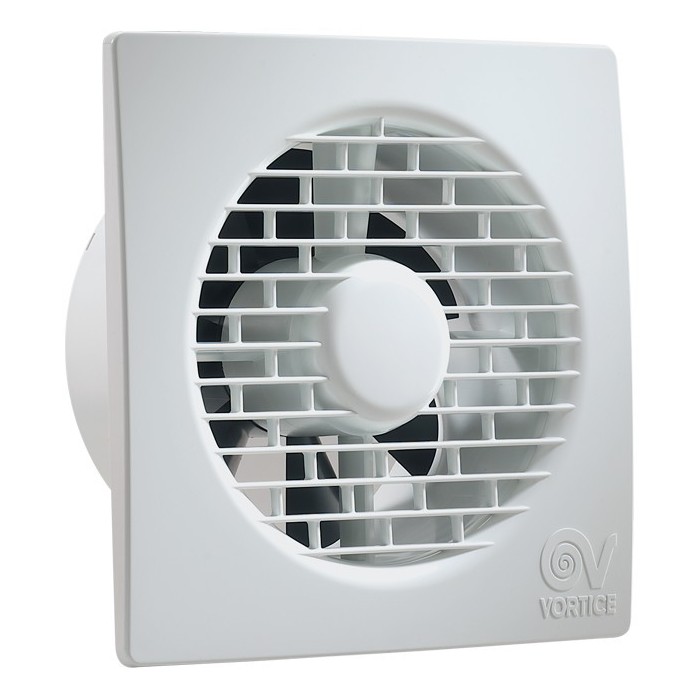

Aerator aspirator point wire mf 120/5"

• Nominal diameter 120 mm.
• Thermally protected motor , with shaft mounted on self-lubricating bushing supports, combined with a helical impeller in thermoplastic material with wing profile blades.
• Maximum flow rate 175 m3/h.
• Non-return valve applied to the delivery port.
• IMQ and IMQ PERFORMANCE certified safety and performance .
• Speed controllable via Vortice regulator.

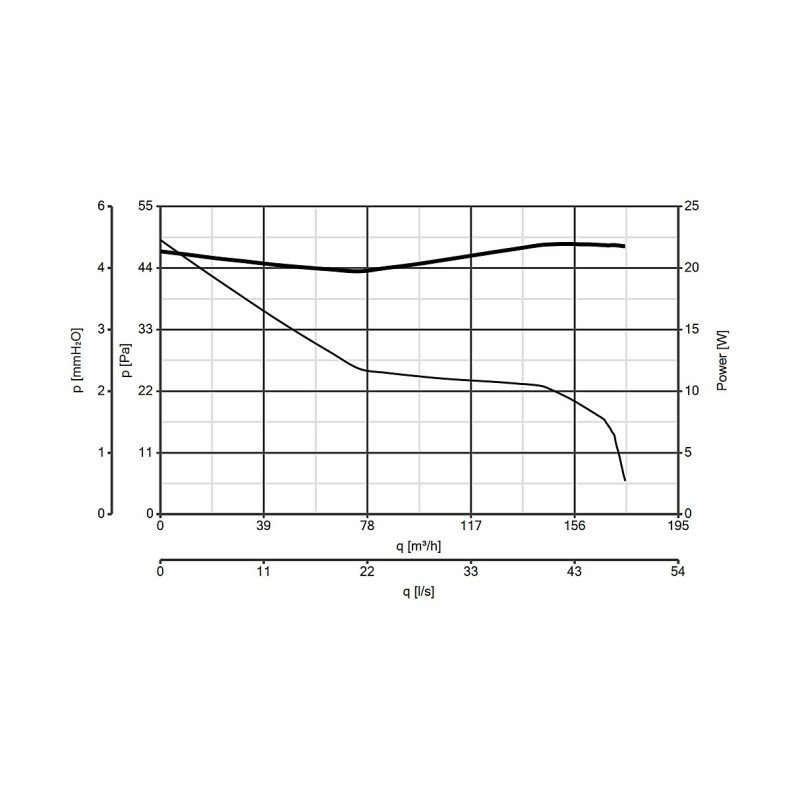

TECHNICAL AND PERFORMANCE DATA
Max absorbed current (A) 0.12
Nominal Duct Diameter (mm) 120
Frequency (Hz) 50
Protection Grade IP X4
Class II insulation
Ø Exhaust (mm) 119
Weight (Kg) 0.61
Max absorbed power (W) 20
Max. ambient temperature continuous operation (°C) 50
Voltage (V) 220-240
Max flow rate (l/s) 49
Max flow rate (m³/h) 175
Max pressure (mmH2O) 5
Max pressure (Pa) 49
Sound Pressure Lp [dB (A)] 3m 34.4
RPM 2150

ENERGY DATA
Name or trade name of the manufacturer Vortice
Specific energy consumption class for temperate climate NA
Specific energy consumption SEC (temperate climate) [kWh/m2a] -8.8
Specific energy consumption SEC (cold climate) [kWh/m2a] -22.1
Specific energy consumption SEC (warm climate) [kWh/m2a] -1.1
Declared typology of UVR-U ventilation unit: unidirectional
Drive type NA
Type HRS heat exchanger absent
Thermal efficiency of heat recovery at reference flow rate HRS [%] NA
Maximum flow rate [m3/h] 173
Total electrical power absorbed by the fan at maximum flow rate [W] 21.4
Sound power level LWA [dB(A)] 60
Reference flow rate [m3/s] 0.0336
Reference pressure difference [Pa] 24
SPI [W/(m3/h)] 0.15111
Control Factor CTRL 1
Manual control type
Maximum internal leakage rate [%] NA
Maximum external leakage rate [%] NA
Mix rate NA
Position and description of visual signal NA filters
Airflow sensitivity to pressure changes at ± 20 Pa NA
Internal/external air tightness [m3/h] NA
AEC Annual electricity consumption [kWh di elettricità /a] 208
AHS temperate Annual heating savings [kWh di energia primaria /a] 1397
AHS cold Annual heating savings [kWh di energia primaria /a] 2732
AHS warm Annual heating savings [kWh di energia primaria /a] 632
