Vortex Aspirator diameter 100 helical wall aerator point wire mf 100/4"

VORTICE ULTRA-FLAT HELICAL ASPIRATOR 100

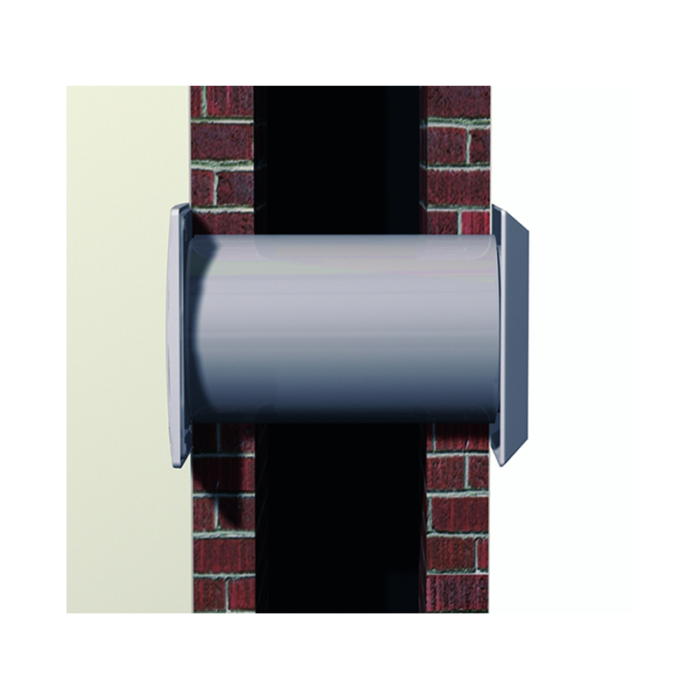

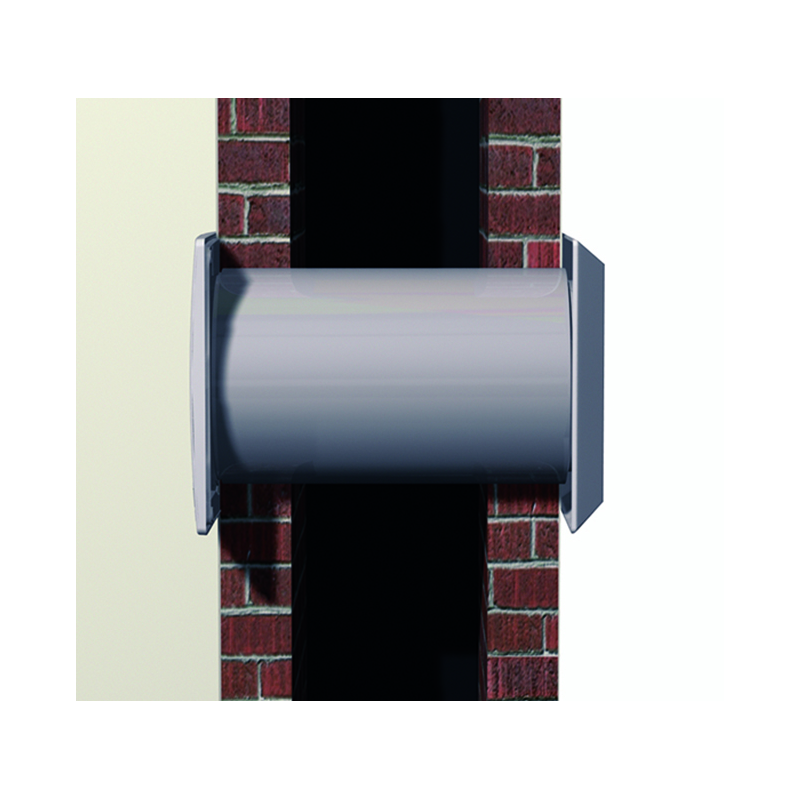

MODEL WITH ULTRA-FLAT GRID FOR WALL/PANEL/CEILING AND FALSE CEILING APPLICATION TUBE DIAMETER 100" (10cm)

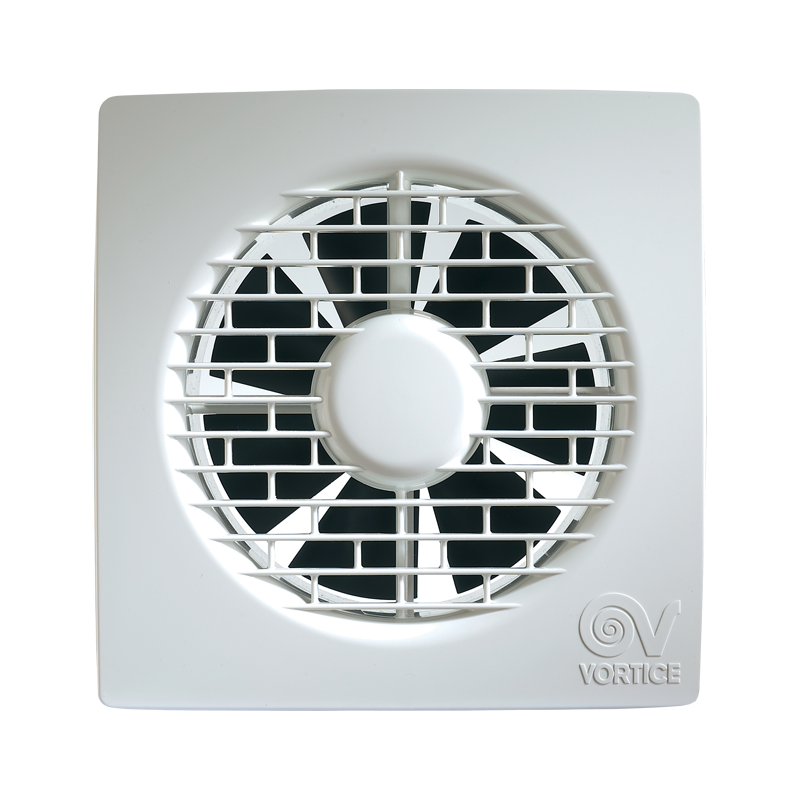

• ULTRA-FLAT: The front grille of only 17 mm and the particular shape of the four sides makes the product “almost” invisible. The miniaturization of the electronics has made it possible to maintain the same thickness of the grille even in the timer version.

• VERY EASY: Extremely easy installation and maintenance. Snap-on and secured with just one screw supplied.

• SILENT: The integration of research into aeraulic performance combined with an integrated formal design have allowed us to reach very low levels with high performance.

• ECOLOGICAL: Low overall energy impact. Built in recyclable materials and according to the "Design for Disassembly" technique (2002/96/EC-WEE).

• ELEGANT: The design is by the Trabucco & Associati studio. The product is made of an anti-UV (ultraviolet emissions) thermoplastic resin which prevents the product from changing over time.

Air and odor extractor helical series punto filo Brand: Vortice

Flow rate m³/h:85

Power:15W

Voltage:230v

Noise: 31dB

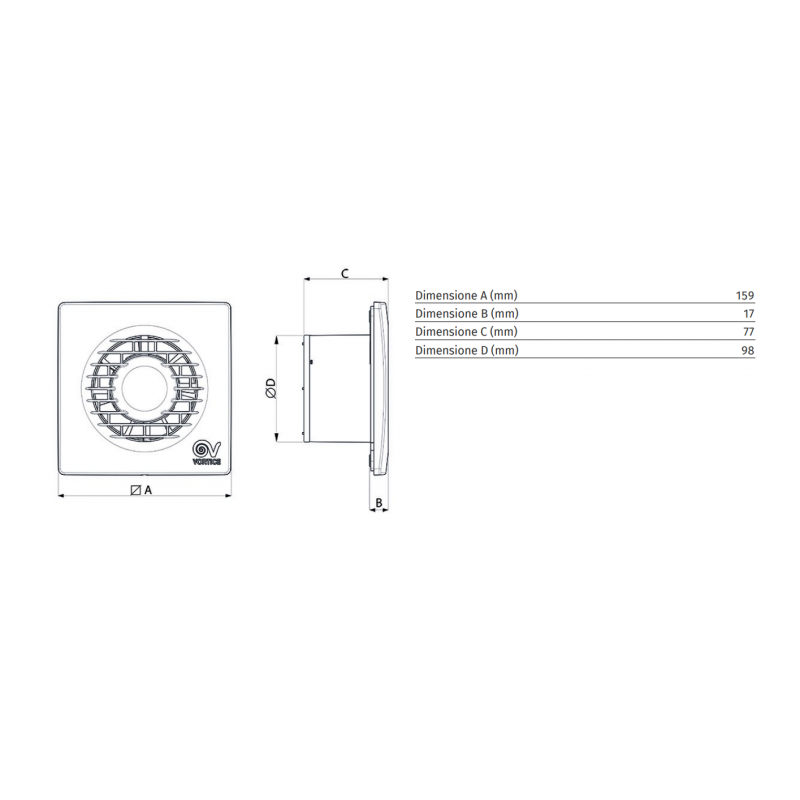

Size (mm): 159x159

Pipe connection diameter 98 mm
