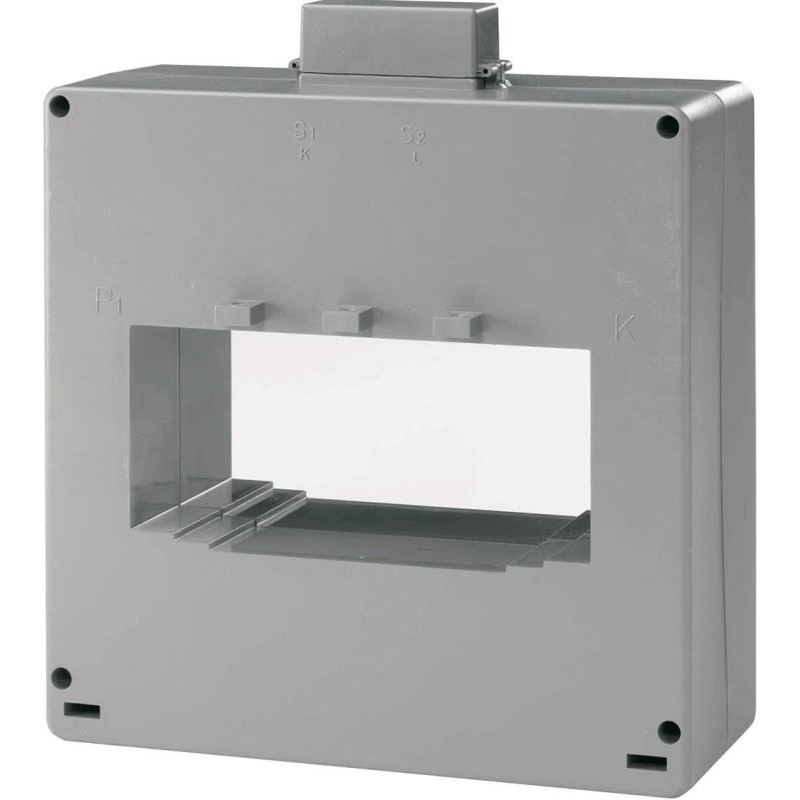

ABB CT12/1000 IPRIM 1000 A - Current Transformer, Class 0.5, 20 VA

The ABB CT12/1000 IPRIM 1000 A is a current transformer designed for use in measurement and protection systems. This device is ideal for monitoring high currents, transforming them into small and safe values for measurement and control systems, while ensuring high accuracy and reliability.

Main features:

• Primary current (Iprim) : 1000 A , designed to measure currents up to 1000 A, suitable for industrial and high power applications.
• Accuracy class : 0.5 , which ensures high accuracy in current measurement, essential for measurement and billing applications.
• Rated power : 20 VA , which indicates the transformer's ability to supply sufficient power to the connected load without compromising measurement accuracy.
• Application type : Current transformer for measurement and protection systems, ideal for industrial electrical installations.

Technical specifications:

• Primary current (Iprim) : 1000 A.
• Secondary current : Typically 5 A (for standard systems), transforming the primary current into a safe, measurable small signal.
• Accuracy class : 0.5 , compliant with IEC accuracy standards, making it suitable for applications requiring precise measurements.
• Power : 20 VA , the nominal value indicating the transformer's ability to power the measurement system without loss of precision.
• Construction : Built to withstand industrial use conditions, with high-strength materials and adequate insulation.

Advantages:

• High Accuracy : Accuracy class 0.5 ensures that measurements are accurate and reliable, ideal for monitoring and accounting applications.
• Safety and Protection : The transformer reduces high currents to safe levels for measurement and protection devices, preventing overloads and damage.
• Energy Efficiency : With a power rating of 20 VA, the transformer offers efficient performance without loss of precision in operation.

Applications:

• Current Measurement : Used in current measurement and monitoring applications in industrial or commercial electrical systems.
• Electrical System Protection : Provides a reduced signal to relays and protection systems to safeguard electrical systems from overloads or short circuits.
• Network Installations : Ideal for electrical panels, substations and electrical distribution infrastructures.

Compliance:

The ABB CT12/1000 transformer is designed and manufactured in compliance with international standards to ensure maximum quality and safety in electrical applications.

In summary, the ABB CT12/1000 IPRIM 1000 A is a reliable solution for measurement and protection in electrical systems that handle high currents. Its high precision, accuracy class 0.5, and power rating of 20 VA make it perfect for a wide range of industrial applications.
