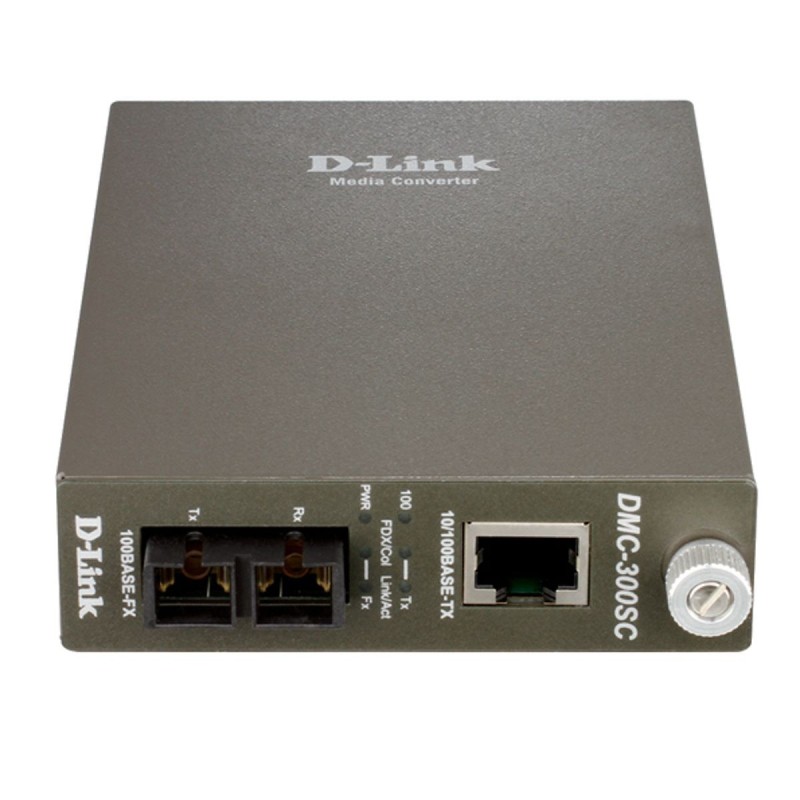

Media converter 10/100tx to 100fx/sc sm 2

The 10/100TX to 100FX/SC SM Media Converter is a device designed to convert Ethernet signals on copper cables into optical signals on fiber optics. This specific model supports a single-mode fiber connection ( SM ) with SC connectors and a maximum transmission distance of 2 km . It is ideal for extending the Ethernet network over long distances using optical fiber, ensuring stable and high-speed data transmission.

Main features:

• Interface Conversion : Converts 10/100Base-TX Ethernet (copper) signals to 100Base-FX optical (fiber) signals.
• Speed : Supports 10/100 Mbps Ethernet speeds, making it compatible with legacy and modern networks.
• Connectors :
  • TX port : RJ-45 for connections on copper cables (UTP/STP).
  • FX Port : SC connector for connection to single-mode ( SM ) fiber optics.
• Maximum distance : Up to 2 km on single-mode fiber optics, ideal for corporate networks or network extensions in campuses or factories.

Technical specifications:

• Fiber type : Singlemode ( SM ), for long distance transmission.
• Connector : SC , which offers a simple and secure connection to the optical fiber.
• Wavelength : Typically 1310 nm for single-mode fiber.
• Supported standards :
  • IEEE 802.3 10Base-T
  • IEEE 802.3u 100Base-TX/FX
• Auto-negotiation : The RJ-45 port supports auto-negotiation to automatically determine the transmission speed (10/100 Mbps) and duplex type (full or half).
• Auto MDI/MDI-X Function : Allows automatic connection between devices without the need for crossover cables.

Advantages:

• Network Extension : Ideal for extending your Ethernet network over distances beyond those allowed by copper cabling (typically 100 metres).
• Reliability : Fiber optic transmission ensures greater reliability and less electromagnetic interference than copper cables.
• Ease of Use : Plug-and-play, no complicated setup required, just connect the cables and the device is ready to use.

Applications:

• Network Extension : Perfect for extending an Ethernet network over long distances, such as between buildings, campuses, or industrial plants.
• Point-to-Point Connections : Ideal for direct connections between two Ethernet devices located over long distances.
• Network Integration : Enables the integration of copper network segments with fiber optic infrastructure, improving network range and stability.

The 10/100TX to 100FX/SC SM 2km Media Converter is the ideal solution for those who need to extend the Ethernet network using optical fiber, ensuring speed, stability and reliability in long distance transmissions.
