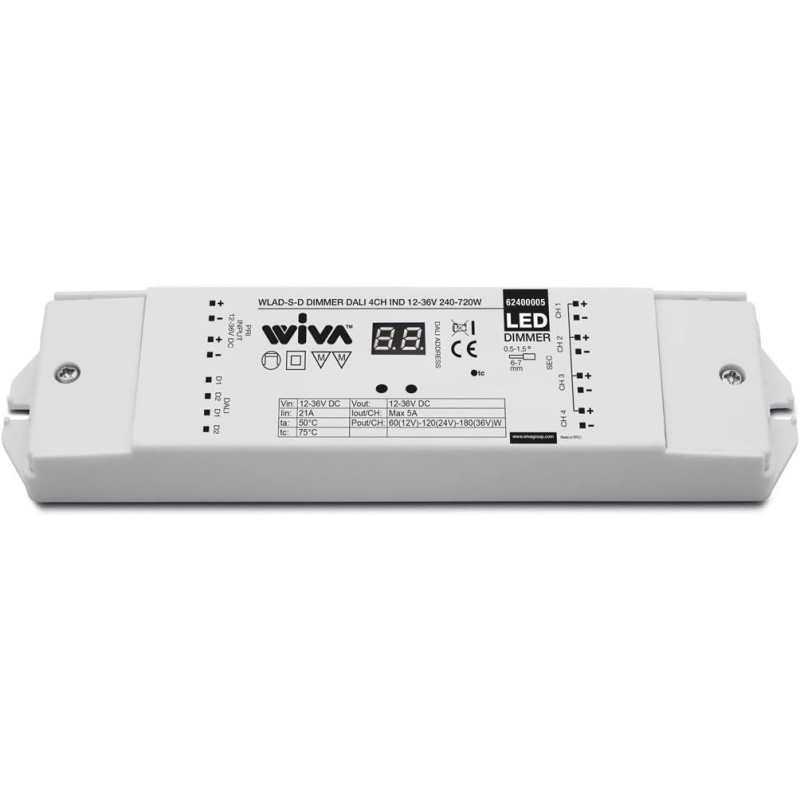

Electronic Dimmer DALI for LED WLAD-S-D 4CH IND 12-36V 240-720W - Internal Use

The DALI Electronic Dimmer WLAD-SD 4CH IND is an advanced device for LED brightness regulation, designed for independent and internal use. Thanks to its DALI protocol and multi-channel functionality, it is ideal for applications requiring precise and flexible control of LED lighting.

Main features:

• Use : Designed for freestanding and indoor use , with IP20 protection rating and Class III electrical insulation, offering protection against electric shock for direct and indirect contact.

• DALI Control : The dimmer supports 0-100% brightness adjustment via DALI protocol, with the ability to manage 1 to 4 independent channels . Each channel can be controlled separately, offering great flexibility for different lighting configurations.

• Signal Repeater : The signal range can be extended using the DIMMER REPEATER 62400002 , allowing for wider signal distribution through the wiring.

• Connections : Equipped with screw terminals on both input and output, the dimmer is supplied with a terminal cover for greater protection and safety.

Technical specifications:

• Input voltage : 12-36V DC
• Maximum input current : 20.5A
• Maximum output power per channel :
  • 60W (12V)
  • 120W (24V)
  • 180W (36V)
• Number of channels : 4 independent
• Output voltage : 12-36V DC constant
• Output current per channel : 5000 mA
• Total power : 240-720W

Operating conditions:

• Ambient temperature : -20/+50 °C

Dimensions and Weight:

• Dimensions : 179x46x20 mm
• Weight : 0.105 kg

Packaging:

• Format : inner/master 1/100

The DALI WLAD-SD 4CH IND Electronic Dimmer is an ideal solution for advanced control of LED lighting. Thanks to its multi-channel flexibility and compatibility with the DALI protocol, it allows precise and dynamic control of lighting, adapting perfectly to projects that require high customization of the lighting system.
