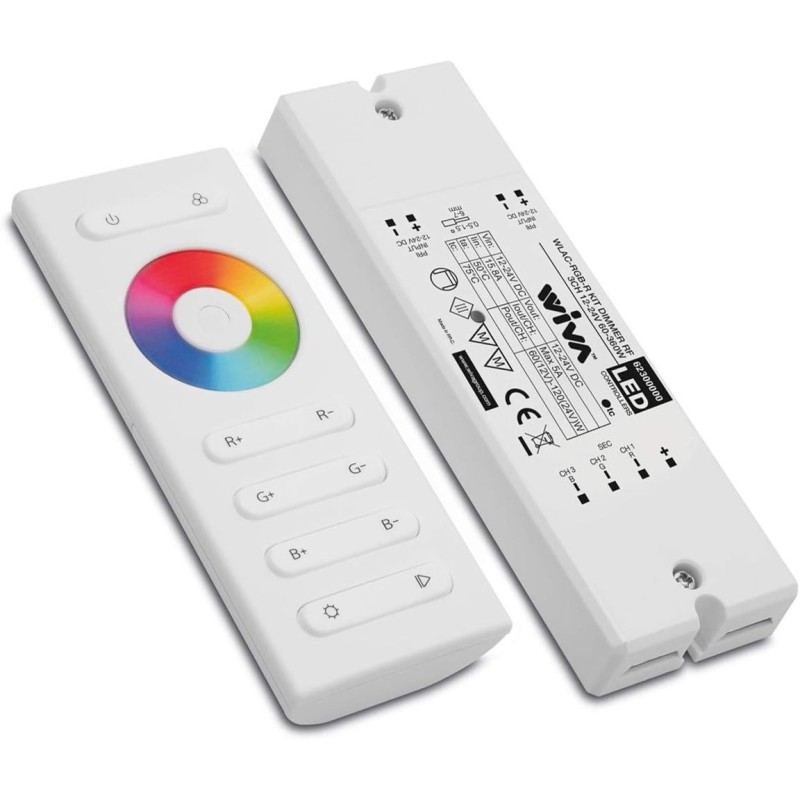

RGB Controller for LED Strips with Remote Control WLAC-RGB-R 3CH 12-24V 60-360W - Indoor Use

The RGB controller for led strips is a complete solution for controlling RGB LED lighting, designed for independent use in indoor environments. The kit includes a remote control that allows you to adjust brightness and color, offering maximum flexibility in lighting control. It is ideal for applications that require advanced and customizable control of RGB LEDs.

Main features:

• Usage : Designed for indoor use with IP20 protection rating and Class III insulation, which protects against direct and indirect electric shock, ensuring safety in use.

• Remote control included : Brightness and color management is via the RF remote control , which operates at 434MHz/868MHz . The remote control allows manual color adjustment via direct selection of the three RGB colors, or via the touch reel for automatic adjustment. The maximum operating distance in open field is 15 meters .

• Control Mode : The kit offers two color adjustment modes :

  • Manual : Direct selection of the three RGB colors (red, green, blue)
  • Automatic : Via touch reel on the remote control for smooth color selection

• Channels : Manages up to 3 independent channels for RGB regulation, allowing separate control for each color.

• Zones and Programs : The remote control can manage 1 zone and store up to 10 programs for personalized lighting control.

• Signal Repeater : The signal can be extended via the DIMMER REPEATER 62400002 , ensuring wider signal transmission via wiring.

• Connections : Equipped with screw terminals for input and output, the kit includes a terminal cover for added protection and safety.

Technical specifications:

• Input voltage : 12-24V DC
• Maximum input current : 15.8A
• Number of channels : 3 independent (RGB)
• Output power per channel :
  • 60W (12V)
  • 120W (24V)
• Output voltage : 12-24V DC constant
• Output current per channel : 5000 mA

Remote control:

• Number of manageable zones : 1
• Number of storable programs : 10
• Maximum distance : 15 meters in open field
• Power supply : 3x1.5V AAA (not included)

Operating conditions:

• Ambient temperature : -20/+50 °C

Dimensions and Weight:

• Dimmer dimensions : 179x46x20 mm

Packaging:

• Format : inner/master
• The WLAC-RGB-R 3CH 12-24V 60-360W RGB LED Strip Controller offers a versatile and customizable solution for controlling RGB LED lighting, with an intuitive and easy-to-use remote control. Ideal for creating dynamic and personalized environments, this kit allows you to precisely manage brightness and colors, offering quality lighting for every need.
