Bright1a 2w 700ma 27k 1x120° microsab

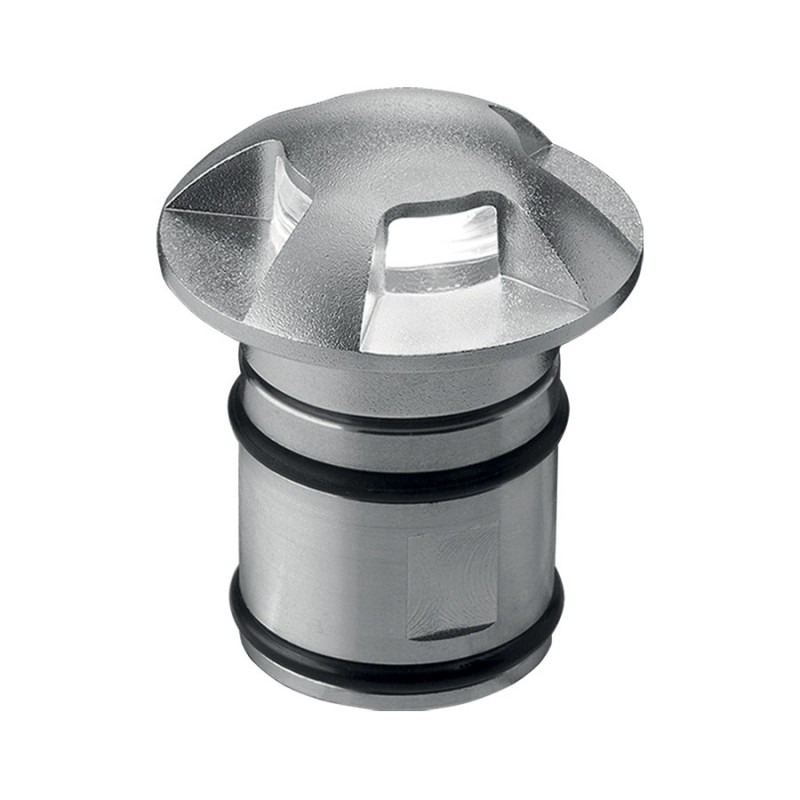

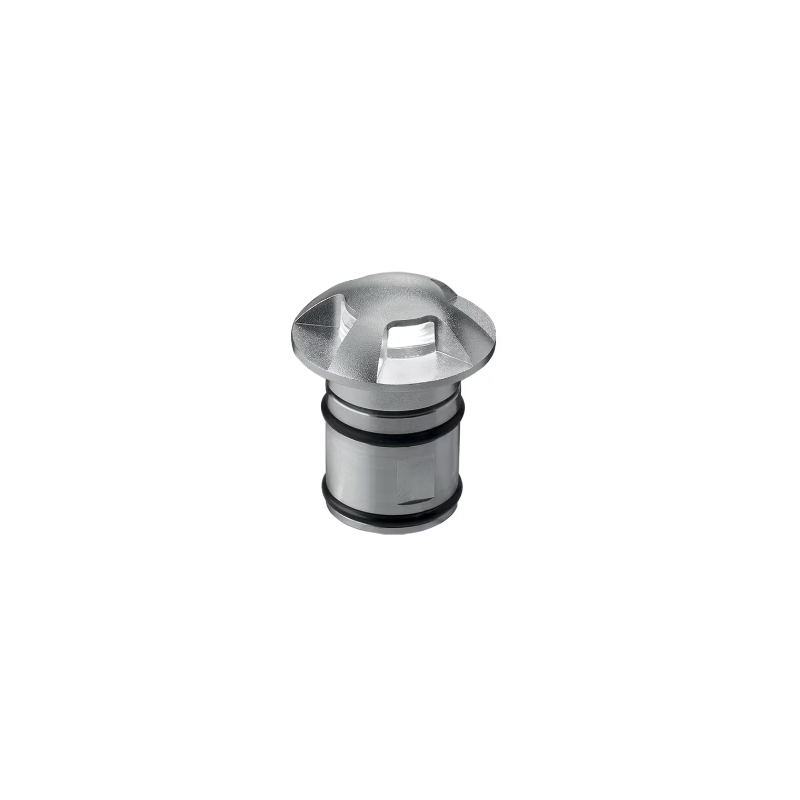

Bright 1.A - 2W 700mA 2700K Radial 1x120° Stainless Steel Outdoor Step Light

The Bright 1.A outdoor step light is a recessed fixture ideal for illuminating paths, driveways and outdoor areas in a discreet and functional way. Thanks to its resistance to atmospheric agents and walkable design, this step light is perfect for installation on walls and floors. Made of AISI316L stainless steel and equipped with a 2700K LED, it guarantees a warm and welcoming light.

Bright 1.A Technical Data Sheet
Code: CB1A130FR5TI

Description: The Bright 1.A recessed light is a lighting solution designed for outdoor applications. Thanks to its robust structure and optional Casambi management, this step light is perfect for creating lighting effects in gardens, walkways and facades, with smart control via app.

Technical Data

Electrical Features:

• Power Consumption: Max 2W
• Power supply: Max 700mA
• Power supply: Power supply not included
• Management: Dimming available via dimmable power supply
• Connection: In series

Lighting Features:

• Number and Type of LED: 1 power LED
• Average LED life: 50,000h L90 B10 (Ta 25°C)
• LED Color: 2700K, ideal for warm and comfortable lighting
• Colour Rendering Index (CRI): 80
• Binning: 1/4 ANSI BIN
• Optics: Radial 1x120°, optical system composed of a silicone optic that ensures a long life over time, guaranteeing a homogeneous light emission
• Luminous Flux at Source: 220 lm (3000K, 700mA)
• Luminous Flux Emitted: 56 lm (3000K, 700mA, 4x60°)

Mechanical Features:

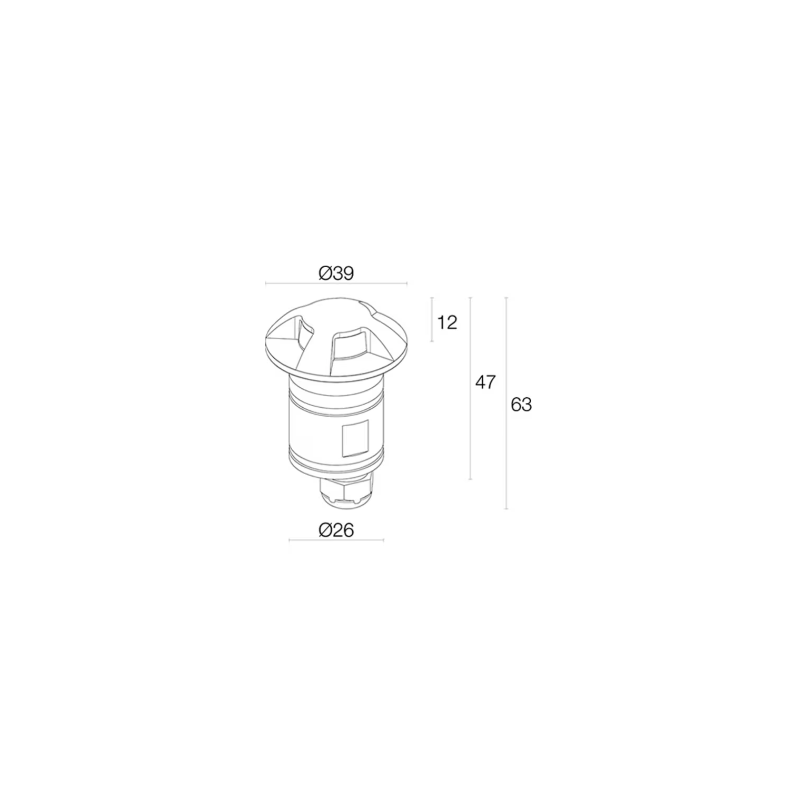

• Dimensions: Ø39x63 mm
• Weight: 200 g
• Finishes: Stainless steel
• Fixing: With formwork for stable and safe installation
• Body Material: Body and ring made of AISI 316L stainless steel, worked with tumbling, micro-shot peening and then electropolished to ensure optimal resistance to atmospheric agents
• Mounting hole: Ø30 mm
• Technical Volume for Dissipation: Ø80x100 mm

General Features:

• Protection Grade: IP65, IP68, suitable for weather and humidity resistance
• Operating Temperature: -20°C — +45°C
• Impact Resistance Rating: IK10, designed to resist mechanical impacts
• Energy Consumption Class: F (light source) compliant with EU regulation 2019/2015
• Glow Wire Resistance Test: 960°C
• Maximum Appliance Temperature: 50°C (Ta 25°C)
• Insulation Class: Class III
• Walkable: Yes
• Driveway: No
• Power Cables: 1.5m H05RN-F 2x0.35/0.75 Ø6.3mm neoprene cable included, for easy installation
• Protection Systems: IPS (Intelligent Protection System), protects against water infiltration and guarantees electrical protection against reverse polarity, hotplug, ESD and overvoltages
• Photobiological Safety: Complies with IEC TR 62778:2014

Available Accessories:

• WC0202: Formwork for installation in walls or floors

Additional Notes:

• Casambi Management and Control via Casambi App: Available on request with dedicated electronics, for smart and personalized lighting control

EOL (End Of Line) Test: Tested and approved through end of line tests with verification of correct operation and control of electrical absorption parameters.

The Bright 1.A outdoor step light is a versatile and elegant solution for outdoor lighting of paths and facades. Its robust stainless steel construction and IP65/IP68 protection rating ensure durability and resistance, while the optional Casambi management allows for smart control of the lighting, adapting to different design needs.
