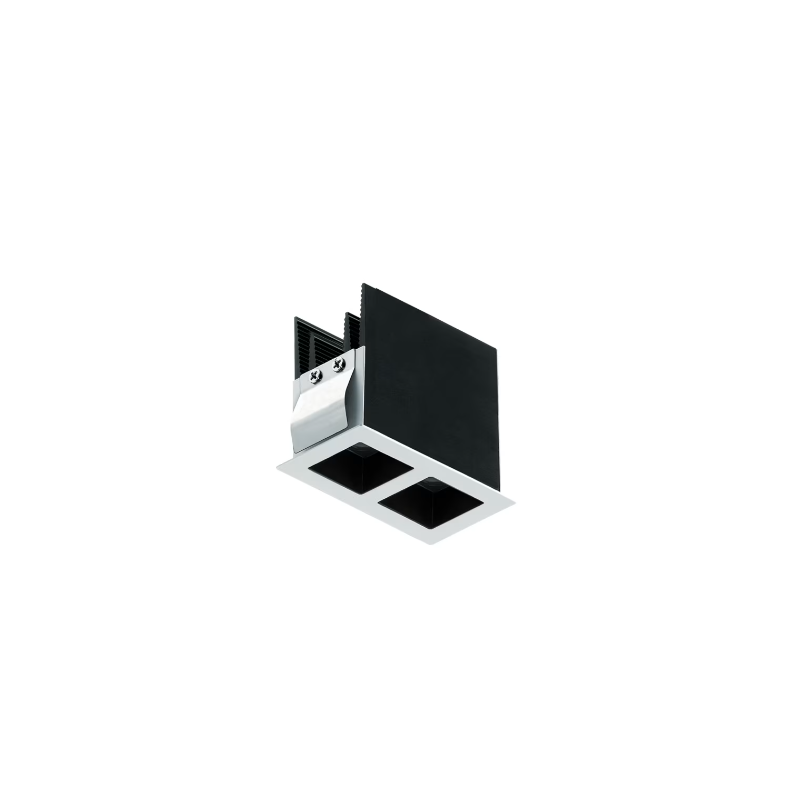

Bitpop 2.1 Recessed for Indoor Applications - 10W 3000K Matt Black

This recessed downlight is designed for indoor applications, offering an efficient and modern solution for lighting residential or commercial environments. With an energy consumption of 10W, a high quality of light and a versatile design, it adapts perfectly to different types of installation, ensuring optimal performance and visual comfort.

Main features:

• Recessed Ceiling Installation: Suitable for low-mount or deep recessed ceiling installation, ideal for creating discreet, high-quality lighting.
• Power Consumption: 10W, for efficient lighting with low consumption.
• Power supply: 230V AC.
• Luminous Flux at Source: 700 lm (3000K, 10W).
• Luminous Flux Output: 496 lm (3000K, 30°, 10W).
• Light Source: Equipped with 2 high-intensity LEDs with 3-step MacAdam technology and an estimated lifespan of 50,000 hours L85 B10 (at 25°C).
• LED Color Temperature: 3000K, ideal for creating a welcoming and pleasant atmosphere.
• 17° Optics: Optical system consisting of 2 TIR lenses combined with high quality technical filters, embedded inside a polycarbonate element with a glossy black finish to ensure high visual comfort and quality.
• Color Rendering Index (CRI): >90 for color temperatures 2700K and 3000K, and CRI 80 for 4000K, ensuring good color rendering.
• Body Material: Radiator in black anodized aluminum profile, used as a cooling element, with AISI 301 harmonic steel springs.
• Frame and Optical Compartment Finish: Black painted steel frame (RAL 9005), optical compartment with black finish. Custom RAL finish available on request.
• Easy Installation: Spring-loaded mounting on plasterboard. External casings are available for installation in solid walls or flush installation without frame (trimless), recessed 8 mm only on plasterboard. Installation surface thickness: minimum 7.5 mm, maximum 20 mm.
• Power Supply Included: Built-in power supply with 0.30m cable included.
• Control System: ON/OFF control, compatible with Casambi control systems via app (on request).
• Protection class IP40: Suitable for indoor environments.
• UGR For 17° and 30° optics, ensuring high visual comfort.
• Operating Temperature: 0°C — +45°C.
• Photobiological Safety: Risk Group 1 according to EN 62471:2006.
• Appliance Class: Class II.
• Weight: 350 g.
• Dimensions: 89 x 49 x 71 mm.
• Drilling dimensions: 83 x 42 mm.
• Heatsink Volume: 170 x 90 x 130 mm.
• Energy Efficiency Class: F (light source) compliant with EU regulation 2019/2015.

Available Accessories:

• WC8712: External casing for flush installation in solid ceilings.
• WC8713: External casing for recessed installation in plasterboard ceilings - white.
• WC8713N: External casing for recessed installation in plasterboard ceilings - black.

EOL (End Of Line) Test: Tested and approved with verification of correct operation and control of electrical consumption.

This recessed downlight represents a versatile and high-quality solution for interior lighting, guaranteeing high performance and optimal visual comfort. The low design and the possibility of choosing between different finishes and accessories make it perfect to adapt to any design requirement, both in residential and commercial environments.
