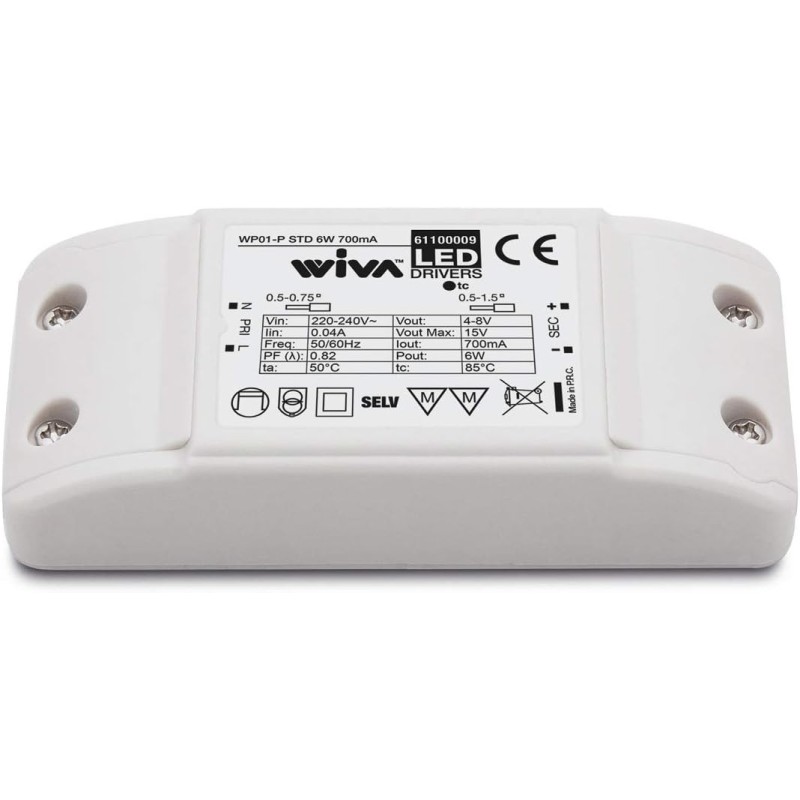

Constant Current Electronic Power Supply for LED

This constant current electronic ballast is designed to power LED lighting systems, with features that make it ideal for indoor use in residential or commercial environments. With a compact design, it includes advanced protections and flicker-free technology, which guarantees stable and flicker-free lighting, improving visual comfort.

Main features:

• Independent Use : Designed for indoor use with IP20 rating, perfect for indoor LED lighting applications.

• Class II Insulation : Provides protection against electric shock from both direct and indirect contact, increasing operational safety.

• Passive PFC : Passive Power Factor Correction, which improves energy efficiency, reducing consumption and optimizing energy use.

• Advanced Protections : Includes protections against short circuits , overloads and extra mains voltages , ensuring safe and reliable operation.

• Flicker-Free Technology : Ensures stable and comfortable lighting, free from flickering, reducing visual fatigue, ideal for professional or domestic environments where visual comfort is important.

• Connections : Equipped with opposing screw terminals for a safe and stable connection of the cables, as well as terminal covers and strain relief for added protection and safety.

Technical specifications:

• Input voltage : 220-240V AC
• Frequency : 50/60 Hz
• Maximum input current : 0.04A
• Ambient temperature (ta) : -20/+50 °C
• Maximum temperature (tc) : 85 °C
• Dimensions : 88x39x23 mm
• Weight : 0.06 Kg

Cable section:

• Input : 0.5-0.75 mm²
• Output : 0.5-1.5

Advantages:

• Compact and lightweight : Its small size and low weight make it easy to install even in tight spaces.

• Full Protection : Built-in safeguards ensure safe and long-lasting operation, protecting the LED system from possible electrical damage.

• Energy Efficiency : With passive power factor correction and flicker-free technology, the power supply ensures efficient and stable lighting.

The constant current electronic power supply for LEDs is the ideal solution for those looking for a reliable and safe device to power LED lighting systems, offering complete protection and flicker-free operation, for an optimal and comfortable lighting experience.
