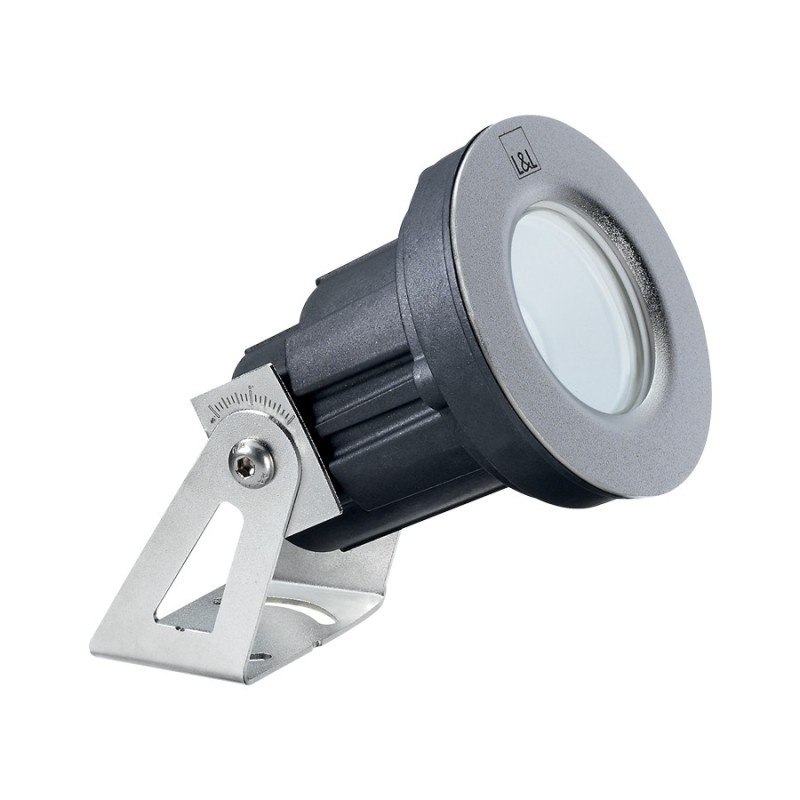

Moby P 1.0 – Underwater Projector

Moby P 1.0 – Underwater Projector

Code : MP10005LI
Type : Underwater projector (not suitable for sea water, cannot be used out of water)

Technical Features :

• Power consumption : 10W
• Power supply : 24Vdc (power supply not included)
• Luminous flux :
  • Source : 713 lm (3000K)
  • Emitted : 506 lm (3000K, 21° optics)
• LED color : 3000K (warm white)
• Color Rendering Index (CRI) : 80
• Average LED life : 50,000 hours (L90 B10 at 25°C)
• Optics : 59° with high efficiency TIR lens and technical filter for color uniformity
• Binning : 2 step MacAdam

Materials and Finishes :

• Body : Thermally conductive technopolymer with thermal conductivity equivalent to stainless steel
• Bezel : AISI 316L stainless steel machined with CNC turning, micro-shot peened, passivated and electropolished for corrosion resistance
• Bracket : AISI 316L stainless steel, tumbled and painted
• Screen : Extra-clear tempered glass, 12 mm thick, resistant to scratches and impacts

Mechanical Features :

• Dimensions : Ø105 x 118 mm
• Weight : 1.35 kg
• Degree of protection : IP65/IP68 (suitable for immersion up to 10 meters)
• Resistance level : IK10 (maximum impact resistance)
• Operating temperature : 0°C – +45°C
• Cables included : 5m neoprene cable H05RN-F 2x1.00 Ø6.8mm
• Finish : Stainless steel
• Installation : Fixing to wall or floor with screws and plugs

Protection Systems :

• IPS (Intelligent Protection System) : Protects against water ingress in case of cable splice errors, reverse polarity, hotplug, ESD and surges.
• Control : Management via Casambi app with dedicated electronics for smart control of lights.

General Features :

• Energy consumption class : F (according to EU 2019/2015)
• Insulation class : Class III
• Glow Wire Test : 960°C
• Photobiological safety : Risk group 1 according to EN 62471:2006
• Optional accessories : WH0401 Honeycomb

Notes :

• Designed for submersible use, not suitable for saltwater or above-water applications.
• Tested and approved through EOL test (End of Line test) to verify electrical parameters and operation
