Ginko 3.0 15w 24vdc 3000k 12x64° gray

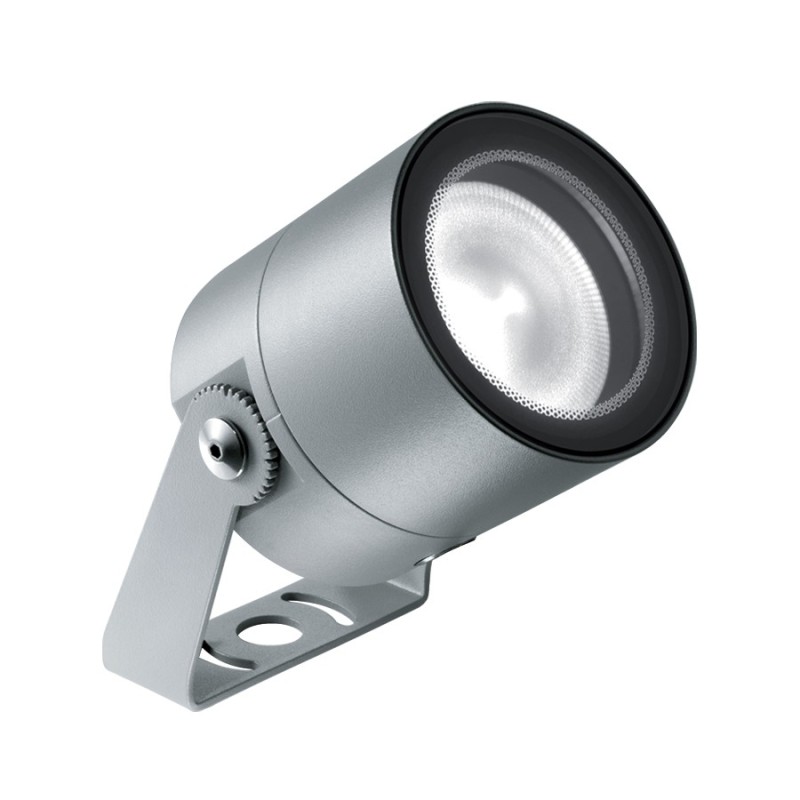

Ginko 3.0 is an outdoor projector by L&L Luce&Light featuring a power consumption of 15W and a 24Vdc power supply. Ideal for installation on surfaces such as ceilings, walls, floors or on spikes, this device offers high-quality lighting thanks to its advanced LED technology and robust construction.

Main features:

• Luminous efficiency : The projector mounts a High Density COB LED that offers a source flux of 1662 lumens and an emitted flux of 1162 lumens with a color temperature of 3000K and a CRI (Color Rendering Index) of 80 , ensuring optimal light output.
• Optics : It has 12°x64° adjustable optics with an optical system composed of a high efficiency TIR lens combined with an elliptical filter. Thanks to the integrated magnet , the ellipse can be easily oriented, allowing precise control of the light beam. It is also available with 28°x72° optics.
• Durability and Resistance : The LED has a guaranteed lifespan of 50,000 hours (L95 B10 at 25°C). The IP66 and IP69 protection rating allows it to be used in demanding outdoor conditions, protecting against dust and water. The projector is IK09 rated, making it resistant to impacts.
• Materials : The body is made of ANTICORODAL 6082 aluminum alloy , which ensures high resistance to corrosion, while the bracket is in AISI 316L stainless steel. The screen is in 4 mm thick tempered extra-clear glass , with gray silkscreen printing, resistant to scratches and impacts.
• Finishes : The standard finish is RAL 9006 grey , treated with ceramic nanoparticle coating and epoxy/polyester paint to ensure resistance to corrosion, exceeding 1500 hours of salt spray .
• Control and Protection : It is compatible with the Casambi control system, which allows management via app. The projector is equipped with the IPS (Intelligent Protection System) , which protects it from water infiltration and electrical malfunctions, including the risk of reverse polarity or overvoltage.

Technical specifications:

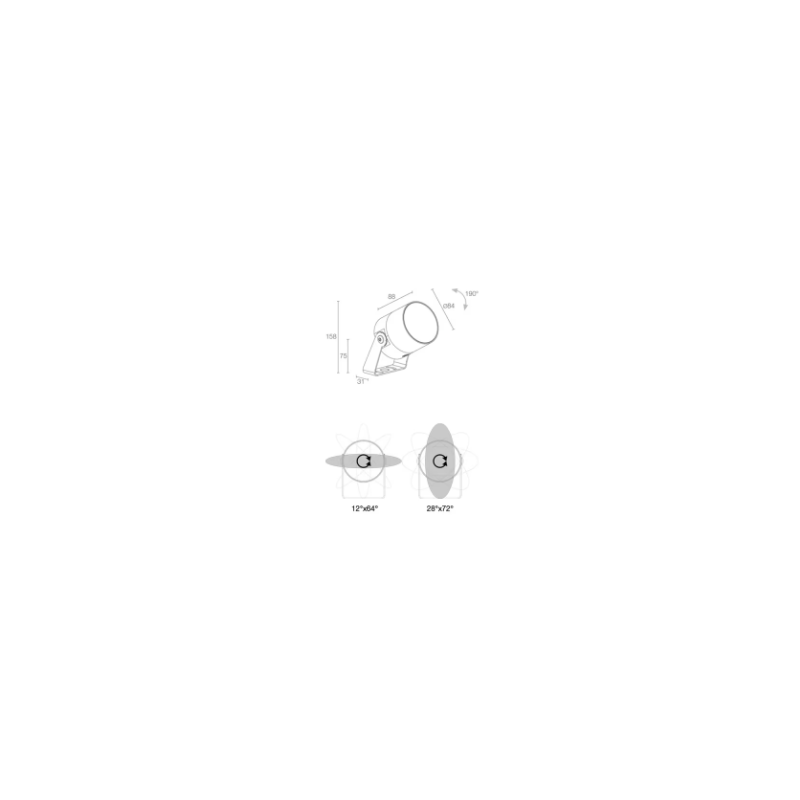

• Dimensions : Ø84x88 mm
• Weight : 1250 g (stainless steel version: 2405 g)
• Energy consumption class : F in accordance with EU regulations 2019/2015
• Operating temperature : -20°C to +45°C
• Glow wire test : 960°
• Insulation class : Class III
• Cables : 1.5m neoprene cable included (H05RN-F 2x0.75 Ø6.3mm)

Available accessories:

• Standard scope in gray or black anodized.
• Magnet for swivel optics and optical zoom.
• Ground pegs of different heights.

This projector is perfect for technical and decorative lighting, maintaining high standards of quality and performance even in difficult outdoor environments.
