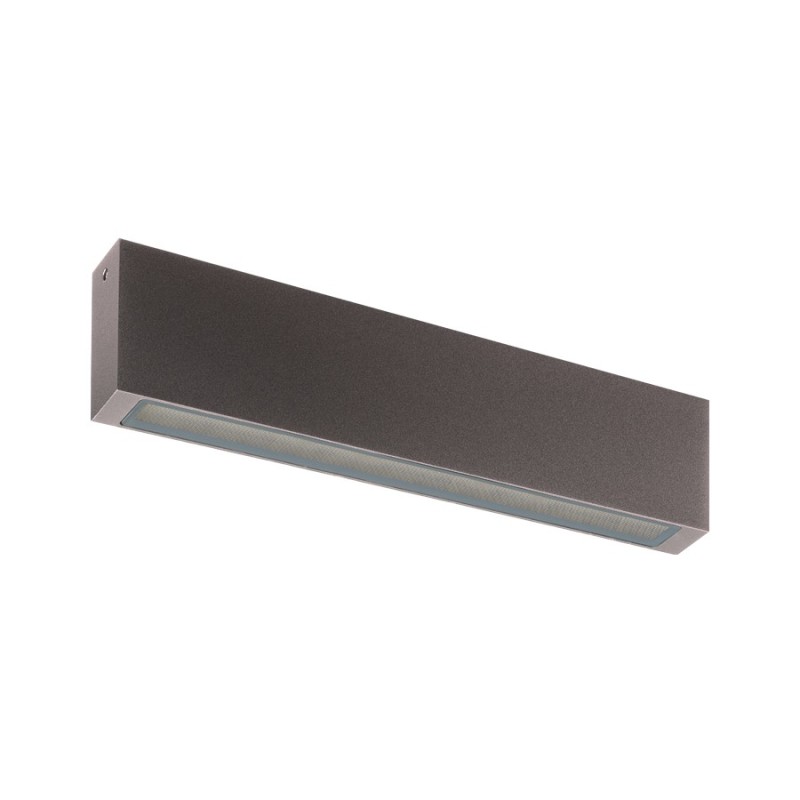

Ello Out 3.0 - Outdoor Ceiling Light - 19W 230V AC 3000K Diffused Optics

Ello Out 3.0 - Outdoor Ceiling Light - 19W 230V AC 3000K Diffused Optics

Ello Out 3.0 by L&L Luce&Light is an outdoor ceiling light designed to illuminate outdoor surfaces efficiently and sturdily. Thanks to its 54 mid-power LEDs, this ceiling light offers a 3000K warm white diffused light, ideal for applications in outdoor spaces such as porches, entrances and outdoor ceilings. The anthracite finish and compact design make Ello Out 3.0 a functional and modern solution for all outdoor lighting needs.

Ello Out 3.0 Technical Sheet
Code: EP30105DHT

Description: Ello Out 3.0 is an outdoor ceiling light designed to withstand harsh weather conditions. With its IP65 protection rating and IK08 impact resistance, it guarantees reliable performance in outdoor environments. The integrated power supply and the efficiency of the light source make it a perfect choice for those looking for functionality and robustness.

Technical Features

Electrical Features:

• Power Consumption: 19W
• Power supply: 230V AC
• Power supply: Built-in power supply

Lighting Features:

• Number and Type of LEDs: 54 mid power LEDs
• Average LED life: 50,000 hours L80 B10 (Ta 25°C), for long operating life and reduced maintenance
• LED color: 3000K, warm white light for a cozy atmosphere
• Colour Rendering Index (CRI): 80, for natural and pleasant colour rendering
• Binning: 3 step MacAdam, ensuring a homogeneous distribution of light
• Optics: Diffused, for uniform and pleasant lighting
• Luminous Flux at Source: 2862 lm (3000K)
• Luminous Flux Emitted: 1478 lm (3000K)

Mechanical Features:

• Dimensions: 294 x 80 x 29 mm
• Weight: 1200 g
• Body Material: Anticorodal aluminum body, for long life and corrosion resistance
• Screen Material: Extra-clear microprismatic and silk-screened glass, designed to guarantee maximum transparency and uniformity of light
• Finishes: Elegant and resistant anthracite finish
• Fixing: With fixing plate, screws and dowels, for easy installation on different surfaces

General Features:

• Degree of Protection: IP65, ensuring total protection against dust and water jets, ideal for outdoor installations
• Operating Temperature: -20°C to +45°C, suitable for different climatic conditions
• Impact Resistance Rating: IK08, for protection against accidental impacts
• Energy Consumption Class: F, in compliance with EU regulation 2019/2015
• Glow Wire Resistance Test: 960°C
• Insulation Class: Class I
• Walkable: No
• Driveway: No
• Power Cables: 1.5m neoprene cable H05RN-F 3x1.0 Ø7mm included
• Photobiological Safety: Risk Group 1 according to EN 62471:2006, ensuring safety for eyes and skin

Available Accessories:

• WD0653H Spacer: Available in anthracite finish for installation with spacing from the surface

Additional Notes:

• Casambi Management (Optional): Available on request for smart lighting control via Casambi app, allowing you to customize and manage the light directly from a mobile device

EOL (End Of Line) Test: Tested and approved through end of line tests with verification of correct operation and control of electrical absorption parameters.

Ello Out 3.0 is the perfect solution for those looking for a robust, efficient and modern design outdoor ceiling light. Its resistance to atmospheric agents and uniform lighting make every outdoor environment safer and more comfortable.
