Ello Out 1.0 - Outdoor Ceiling Light - 7W 230V AC 3000K Diffused Optics

Ello Out 1.0 - Outdoor Ceiling Light - 7W 230V AC 3000K Diffused Optics

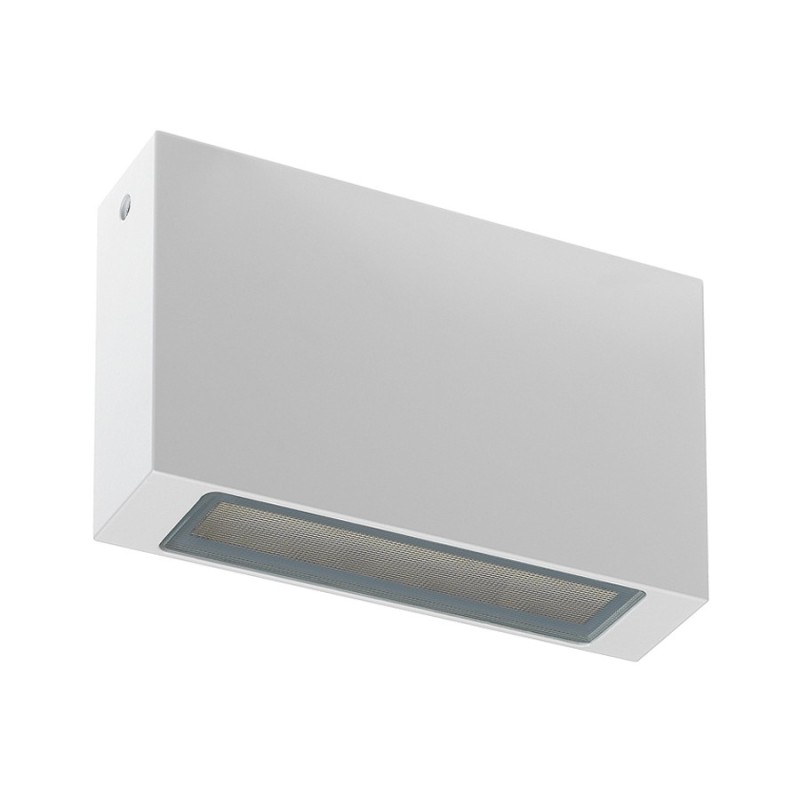

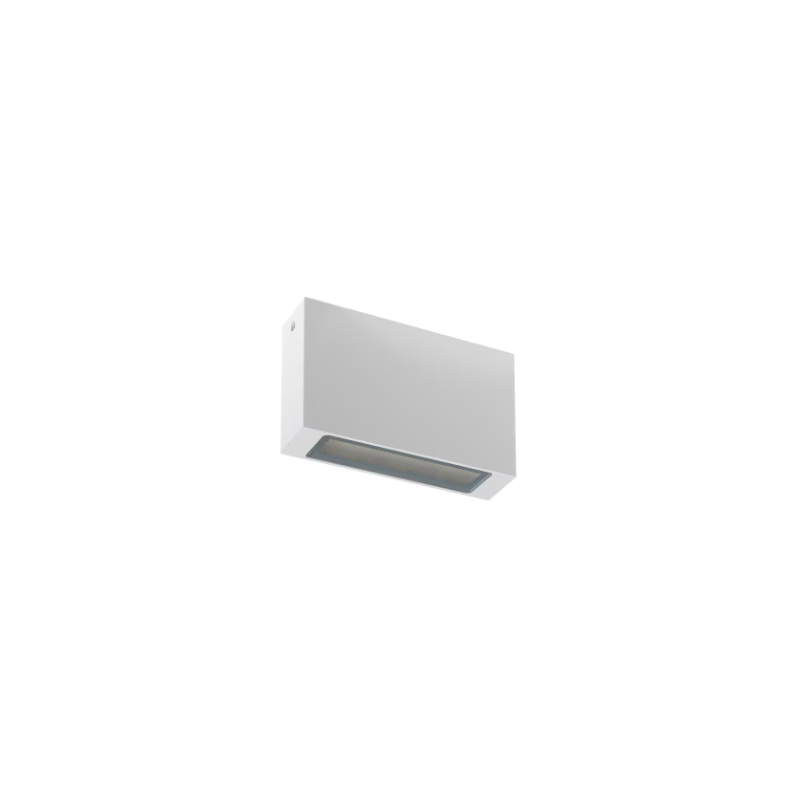

Ello Out 1.0 by L&L Luce&Light is an outdoor ceiling light ideal for lighting outdoor surfaces, such as terrace ceilings, porches and entrances. With a warm white light of 3000K and an elegant design in anticorodal aluminum, this ceiling light offers a modern and functional solution for lighting outdoor environments, guaranteeing efficiency and durability over time.

Ello Out 1.0 Technical Data Sheet
Code: EP10105DET

Description: Ello Out 1.0 is an outdoor ceiling light designed for ceiling mounting. Equipped with 18 mid-power LEDs, it offers uniform diffused lighting, ideal for illuminating entrances and outdoor areas. With IP65 protection and IK08 impact resistance, it is perfect for resisting atmospheric agents and accidental impacts.

Technical Features

Electrical Features:

• Power Consumption: 7W
• Power supply: 230V AC
• Power supply: Built-in power supply

Lighting Features:

• Number and Type of LEDs: 18 mid power LEDs
• Average LED life: 50,000 hours L80 B10 (Ta 25°C), ensuring long operating life and reduced maintenance
• LED Color: 3000K, warm white light for a comfortable atmosphere
• Colour Rendering Index (CRI): 80, for good colour rendering
• Binning: 3 step MacAdam, to ensure uniformity in color tone
• Optics: Diffused, for uniform and pleasant lighting
• Luminous Flux at Source: 954 lm (3000K)
• Luminous Flux Emitted: 493 lm (3000K)

Mechanical Features:

• Dimensions: 123 x 80 x 29 mm
• Weight: 400 g
• Body Material: Anticorodal aluminum body, ensuring long life and corrosion resistance
• Screen Material: Extra-clear microprismatic and silk-screened glass, designed to ensure maximum transparency and uniform light
• Finishes: White RAL 9003, for a modern and versatile finish
• Fixing: With fixing plate, screws and dowels, for easy installation on different surfaces

General Features:

• Degree of Protection: IP65, ensuring high protection against dust and water jets, ideal for outdoor use
• Operating Temperature: -20°C to +45°C, suitable for different climatic conditions
• Impact Resistance Rating: IK08, designed to withstand mechanical impacts and ensure long life
• Energy Consumption Class: F, compliant with EU regulation 2019/2015
• Glow Wire Resistance Test: 960°C
• Insulation Class: Class I
• Walkable: No
• Driveway: No
• Power Cables: 1.5 m H05RN-F 3x1.0 Ø7 mm neoprene cable included, for easy electrical connection
• Photobiological Safety: Risk Group 1 according to EN 62471:2006, ensuring safety for eyes and skin

Available Accessories:

• WD0651E Spacer: Available in white finish for installation with spaced from the surface

Additional Notes:

• Casambi Management (Optional): Available on request for smart lighting control via Casambi app, allowing you to customize your lighting directly from a mobile device

EOL (End Of Line) Test: Tested and approved through end of line tests with verification of correct operation and control of electrical absorption parameters.

Ello Out 1.0 is the ideal solution for those looking for a high-quality, durable outdoor ceiling light with an elegant design. Perfect for installation on outdoor ceilings, it offers uniform and pleasant light, helping to make every environment welcoming.
