Outdoor Projector Spot 1.6 - 2W 24Vdc 3000K 20° Optics Stainless Steel

Outdoor Projector Spot 1.6 - 2W 24Vdc 3000K 20° Optics Stainless Steel

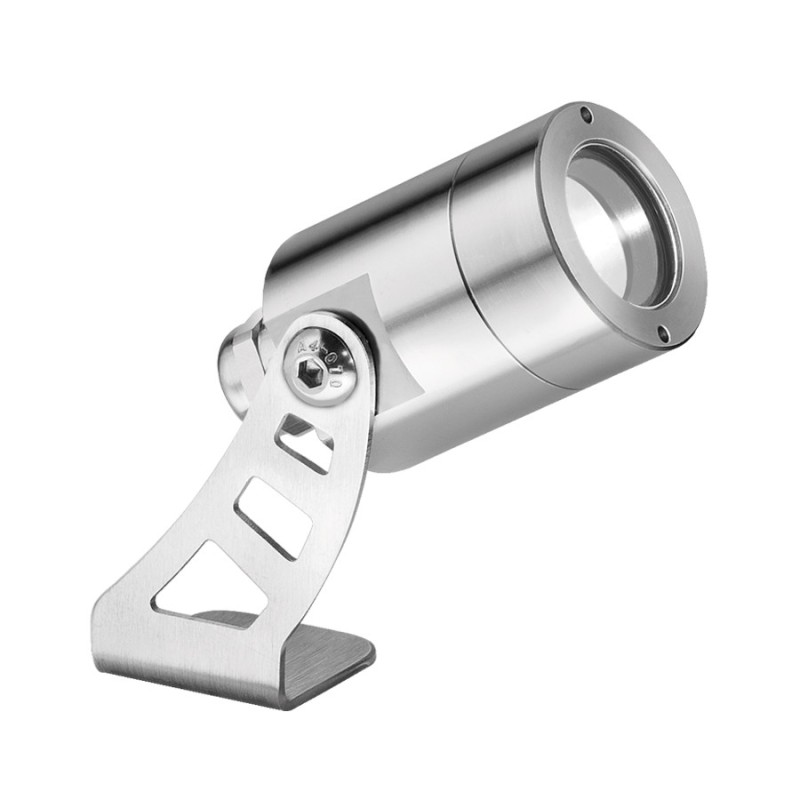

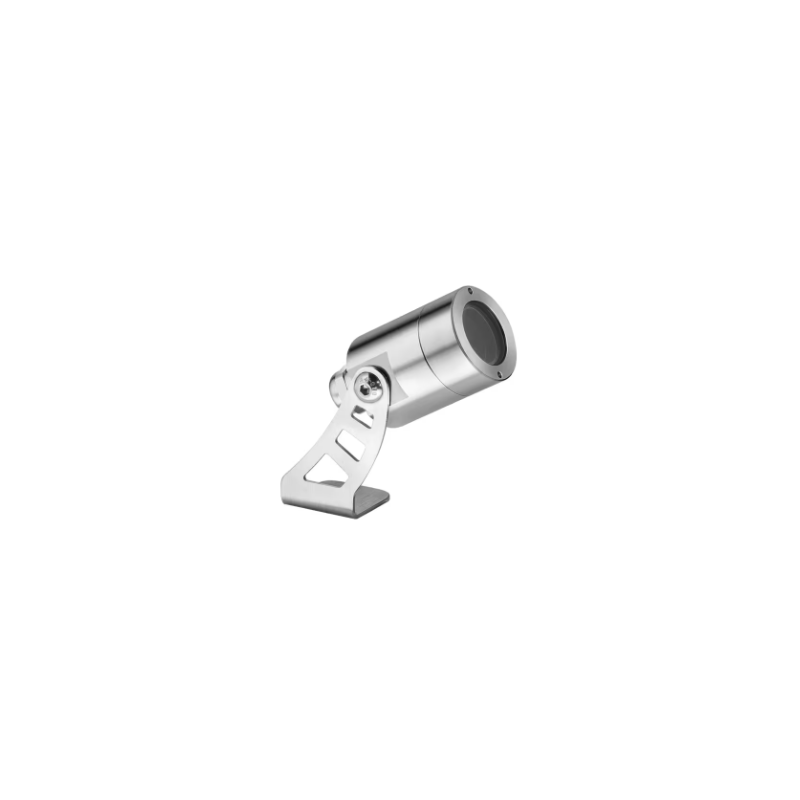

The Spot 1.6 outdoor projector by L&L Luce&Light is a compact and versatile lighting fixture, ideal for outdoor applications, such as lighting gardens, paths, architectural details and facades. Made of AISI 316L stainless steel, it offers high resistance to atmospheric agents and is equipped with IP68 protection, making it perfect for installation in outdoor environments without the risk of damage due to adverse weather conditions.

Spot 1.6 Technical Data Sheet
Code: CF16005MI

Description: The Spot 1.6 projector is designed to be mounted on surfaces such as ceilings, walls, floors, and can be installed via a spike or anchor strap for versatile use in outdoor environments. With a power consumption of 2W, the 3000K LED offers a warm and welcoming light, ideal for creating pleasant atmospheres and for highlighting architectural elements.

Technical Data

Electrical Features:

• Power Consumption: 2W
• Power supply: 24Vdc
• Power supply: Power supply not included

Lighting Features:

• Number and Type of LED: 1 power LED
• Average LED life: 50,000 hours L90 B10 (Ta 25°C)
• LED Color: 3000K, warm white light for cozy lighting
• Colour Rendering Index (CRI): 80, for good light quality and accurate colour rendering
• Binning: 1/4 ANSI BIN, to ensure uniformity in color tone
• Optics: 20°, ideal for directional lighting, perfect for highlighting specific details and creating targeted lighting effects
• Luminous Flux at Source: 145 lm (3000K)
• Luminous Flux Emitted: 88 lm (3000K, 20° optics)

Mechanical Features:

• Dimensions: Ø30 x 57 mm
• Weight: 400 g
• Fixing: With bracket and screws, which allows a stable and safe installation in various contexts, such as ceilings, walls, floors, pegs or anchoring straps
• Body and Ring Material: Body and ring in AISI 316L stainless steel, which guarantees high resistance to corrosion and excellent durability over time
• Screen Material: Clear tempered glass, designed to resist impacts and ensure good light diffusion

General Features:

• Protection Rating: IP68, designed to withstand temporary immersion and splashes of water, perfect for outdoor environments
• Operating Temperature: -20°C to +45°C, suitable for different climatic conditions
• Impact Resistance Rating: IK10, ensuring optimum resistance to shocks and mechanical impacts
• Energy Consumption Class: F, compliant with EU regulation 2019/2015
• Glow Wire Resistance Test: 960°C
• Insulation Class: Class III
• Walkable: No
• Driveway: No
• Power Cables: 1.5m H05RN-F 2x0.35/0.75 Ø6.3mm neoprene cable included, for easy installation and power supply
• Protection Systems:
  • IPS (Intelligent Protection System): Protects the device from water infiltration, connection errors and other electrical phenomena
• Photobiological Safety: Risk Group 1 according to EN 62471:2006, ensuring safety for eyes and skin

Available Accessories:

• WB0320I: Standard stainless steel telescope, to create targeted light effects
• WB0321I: Asymmetrical stainless steel telescope, for a wider and more uniform light distribution
• WH0101: Honeycomb, to reduce glare and improve light control
• WP0100: Ground spike for easy installation in gardens and flowerbeds
• WP1004: Anchoring strap - 5m, to fix the projector on particular structures such as trees or poles

Additional Notes:

• Elliptical Optic (Optional): Available upon request for a wider and more uniform light beam.
• Casambi Management and Control via Casambi App: Available on request for smart lighting control, allowing you to customize light settings directly from your mobile device.

EOL (End Of Line) Test: Tested and approved through end of line tests with verification of correct operation and control of electrical absorption parameters.

The Spot 1.6 projector is the ideal solution for those looking for compact but effective outdoor lighting. Thanks to its stainless steel construction and IP68 protection rating, Spot 1.6 is suitable for different environmental conditions and offers a warm and welcoming light to enhance the details of the landscape and architecture.
