Moai, 1210 recessed spotlight 17x17 plaster 3000k cr

Data sheet: MOAI - XGQ1210.0402

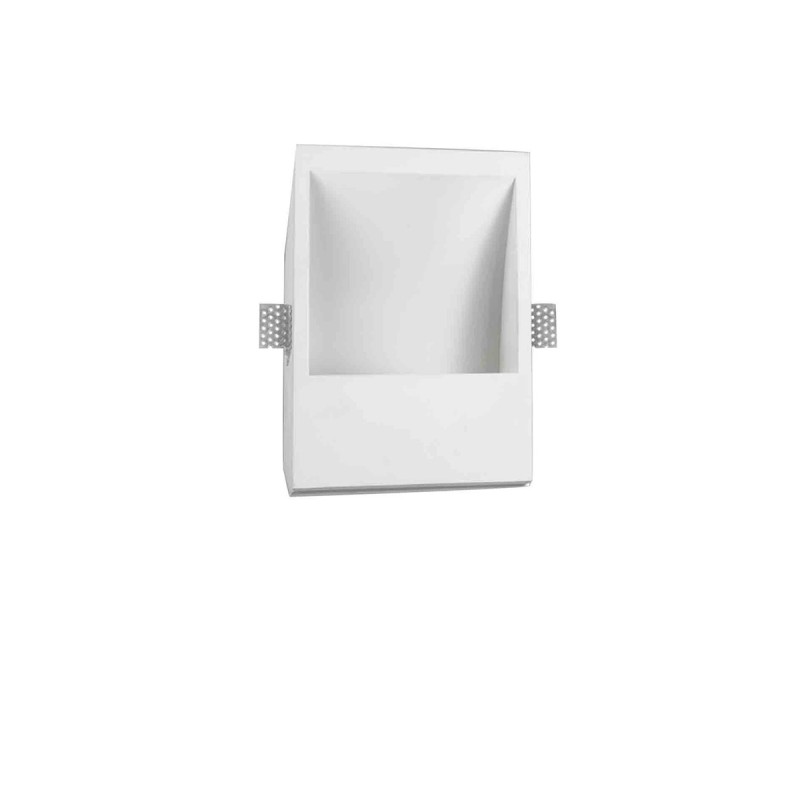

The MOAI - XGQ1210.0402 is a recessed luminaire for interior ceilings or walls, with indirect light emission. This model is characterized by a plaster structure, designed to be fully integrated into the wall or plasterboard surfaces, offering elegant and discreet lighting.

Main features:

• Model : XGQ1210.0402
• Light source : LED
• System power consumption : 15W
• Efficiency : 70.87 lm/W
• Light source life : L80 (B20) 80,000 hours
• Color temperature : 3000K, with a color rendering index (Ra) greater than 90
• Light distribution : Asymmetric
• Nominal luminous flux : 1898 lm
• Effective luminous flux : 1063 lm
• Efficiency : 56%
• Degree of protection : IP20 (suitable for indoor environments)
• Color Tolerances : 3rd level of SDCM (high color consistency)

Power supply and electrical configuration:

• Power supply : 220-240V AC
• Frequency : 50/60 Hz
• Electrical configuration : Dimmable via DALI or Push DIM protocols
• Driver : Integrated and included

Structure and materials:

• Material : Plaster structure for total recessed installation, with aluminium dissipation plate to ensure optimal thermal management.
• Diffuser : Flat sandblasted glass, for a soft distribution of light.
• Fixing brackets : Made of micro-perforated sheet metal for easy installation.
• Masonry formwork : In galvanized sheet metal, to be ordered separately.

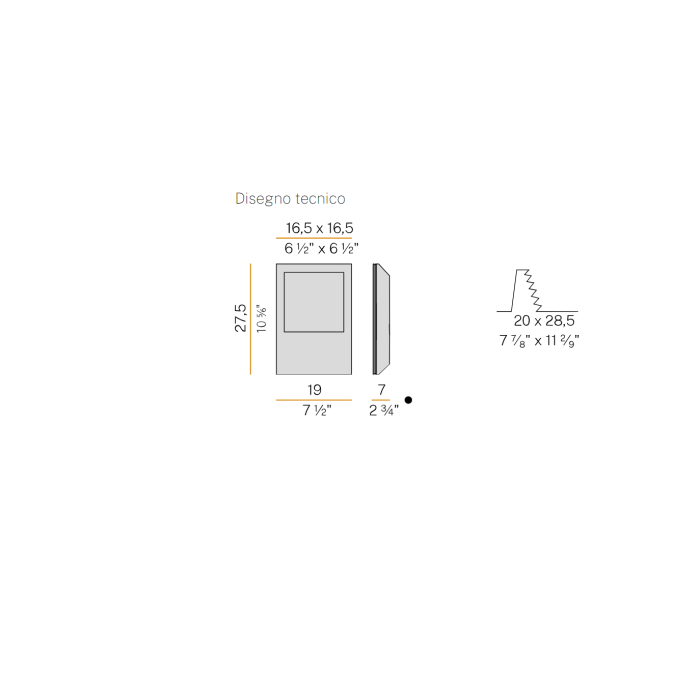

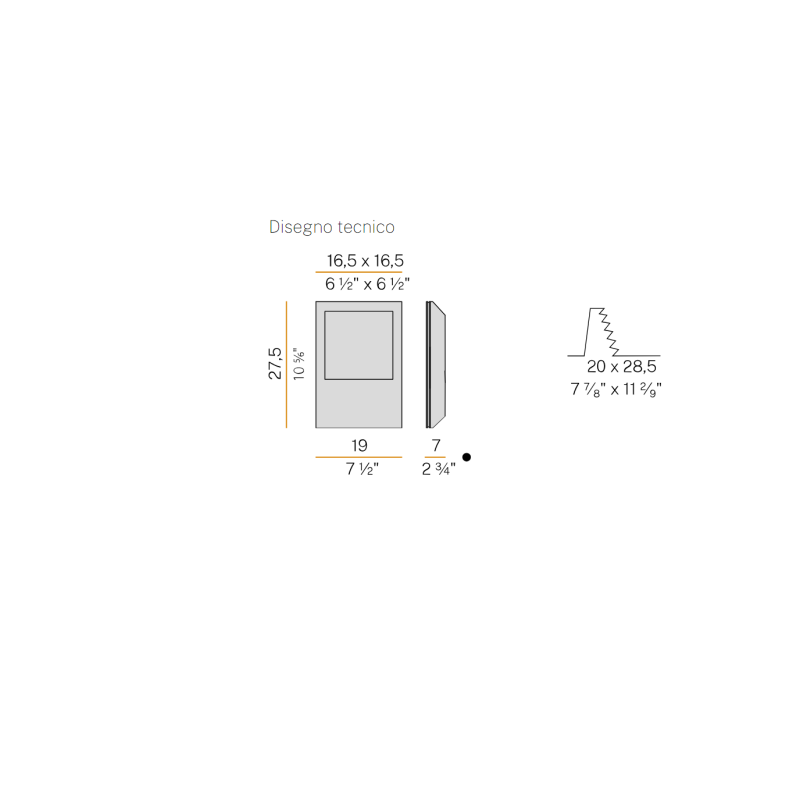

Dimensions:

• Built-in hole size : 200x285 mm (7.9x11.2")
• Package dimensions : 11.0 x 32.0 x 22.0 cm
• Weight : 2.01 Kg

Applications:

The MOAI - XGQ1210.0402 is perfect for those looking for elegant and integrated indirect lighting in interior environments. Ideal for ceilings and walls in residential or commercial spaces, this spotlight blends perfectly with its surroundings thanks to its plaster structure and sandblasted glass diffuser, ensuring atmospheric lighting without compromising the aesthetics of the environment.

Accessories:

• Masonry formwork : To be ordered separately.
