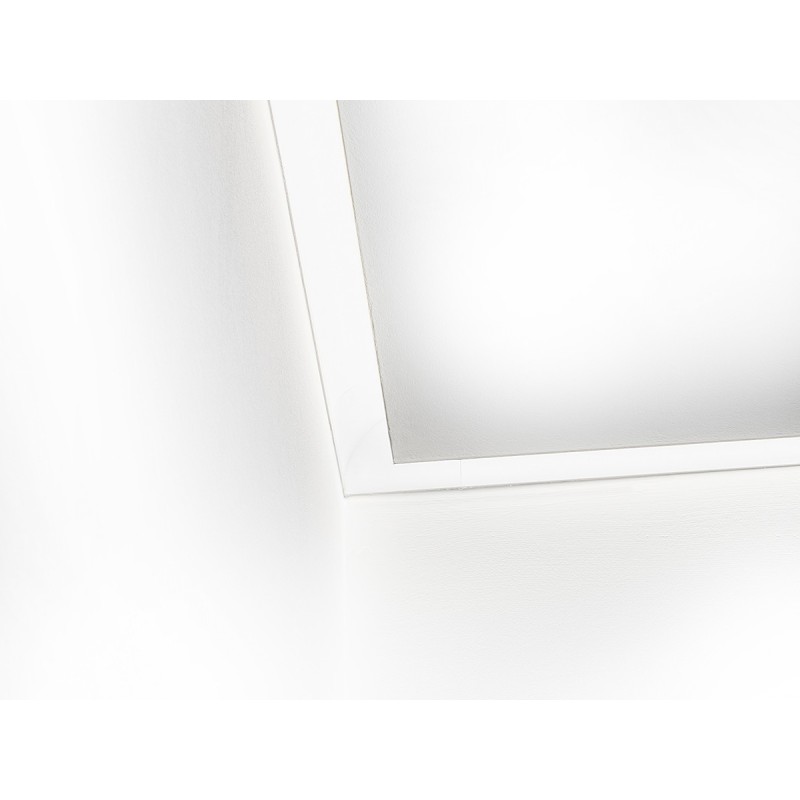

Corner: sist.incasso 101 white/pc opal

Technical sheet: Panzeri XG2045-100TRACK

The Panzeri XG2045-100TRACK is a modular profile for perimeter installation on ceilings or walls in interior environments, ideal for projects that require direct and homogeneous lighting. This system is designed to integrate perfectly with plasterboard panels, thanks to its concealed structure in extruded and powder-coated aluminum, with a white RAL 9003 finish.

Main technical features:

• Item Code : XG2045-100TRACK
• Power absorbed by the system : Max 24W/m
• Light source : LED
• Light distribution : Diffused beam
• Power supply : 24V DC
• Driver : Remote not included
• Glare index : UGR
• Weight : 0.78 Kg
• Degree of protection : IP40 (solid objects greater than 1 mm) / IP20 (not protected against water)
• Package dimensions : 8.0 x 8.0 x 114.0 cm
• Length (L) : 1010 mm (39 4/5”)

Structure and materials:

• Frame : Powder coated extruded aluminium, white RAL 9003
• Diffuser : Extruded polycarbonate screen with opaline finish, for uniform light distribution.

Accessories:

• Light modules and power supply : To be ordered separately
• Fixing, joining and closing accessories : To be ordered separately

Applications:

Ideal for perimeter installations on ceilings or walls, the Panzeri XG2045-100TRACK offers a discreet and functional solution for lighting interiors. The recessed structure and diffused beam lighting make it perfect for creating a uniform and modern atmosphere.
