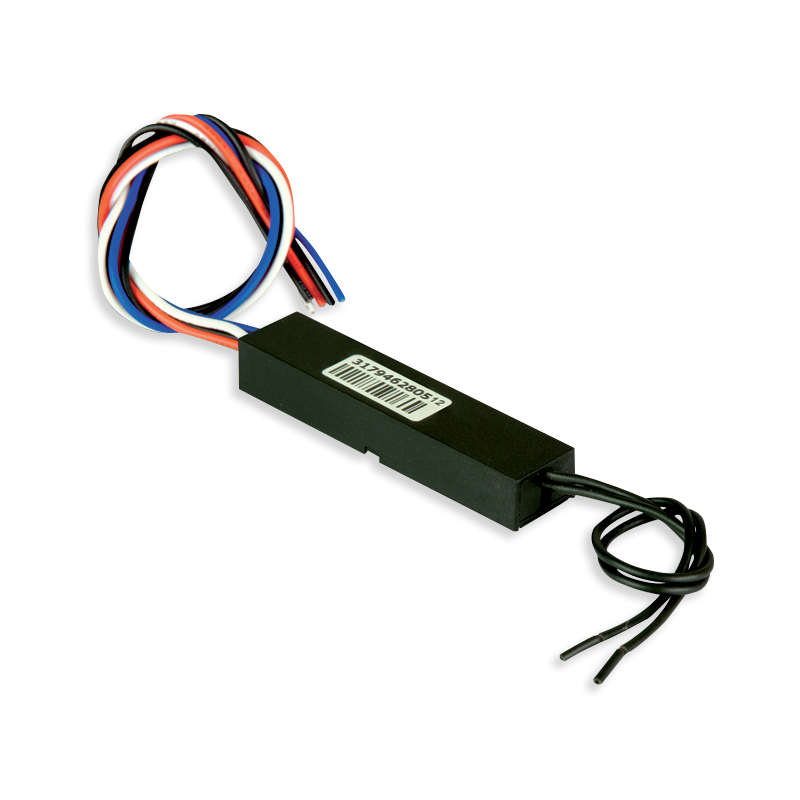

Hiltron XM204 Transponder

The Hiltron XM204 Transponder is a security system controller, designed to manage 4 inputs and monitor events 24 hours a day. It is ideal for integration with Hiltron X-Series burglar alarm systems, ensuring high sensitivity and continuous monitoring of inputs.

Main features:

• 4 Inputs : Manages up to 4 inputs, making it suitable for monitoring multiple points within a security system.
• Continuous monitoring (24h) : The transponder is designed to monitor events in real time, 24 hours a day.
• Adjustable Sensitivity : It has 8 sensitivity levels, from 50ms to 225ms, in 25ms steps, for precise configuration according to system needs.
• Low Power Consumption : Consumes a maximum of 1mA, ensuring a low impact on overall system power consumption.
• Compact Size : With dimensions of 12mm x 5mm x 36mm, the transponder is easy to install even in limited spaces.
• Compatibility : Designed to work with Hiltron X-Series security systems, integrating seamlessly with control panels.

Technical specifications:

• Maximum current consumption : 1mA (on MPX)
• Sensitivity levels : 8 levels, from 50ms to 225ms in 25ms steps
• Dimensions :
  • Length: 12mm
  • Height: 5mm
  • Depth: 36mm
• Weight : 4g
• Item code : XM204

Applications:

The Hiltron XM204 Transponder is ideal for integration into advanced burglar alarm systems, where continuous and precise monitoring of multiple inputs is required. With its high sensitivity and low power consumption, it is a reliable choice for increasing the efficiency and security of control systems.
